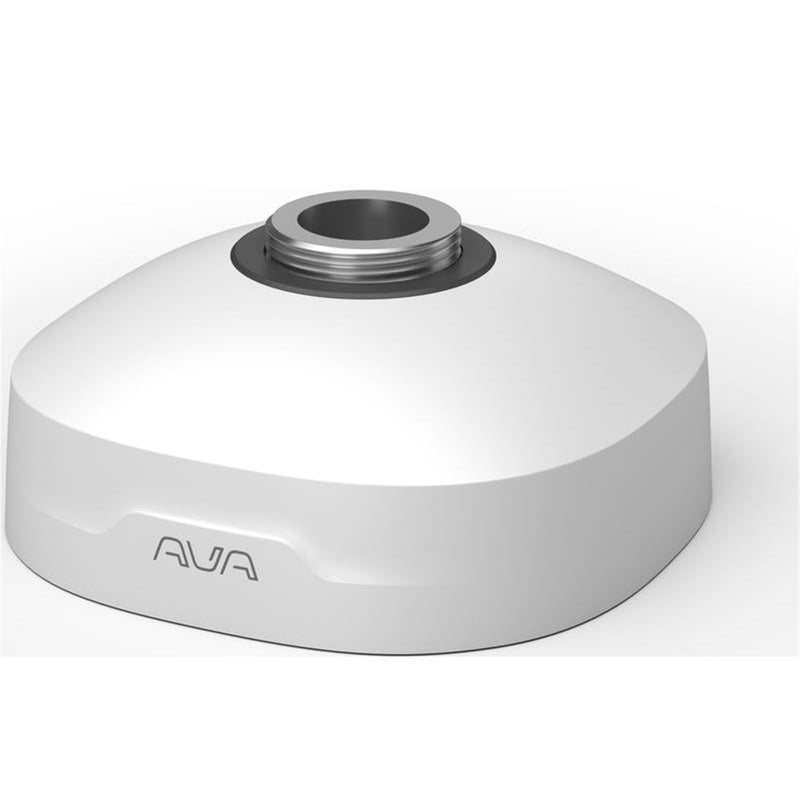

AVA ACC-PEN-CAP-W CAMERAS AVA AVA PENDANT MOUNTING CAP WHITE
Term:
100% Traditional Laybuy. Delivery after full payment.
Attention, eager beaver! Need your delivery in a flash?
No worries, mate! We're here to save the day! Just give us an email at contact@layawayau.com and let us know if you would like to pay more or less each week. Rest assured, we'll also provide you with an estimated delivery date when we make these changes. So don't you worry, your delivery dreams are in safe hands!
Clarity and Colors, All in One
Monitor 24-hour clear and colourful details even in pitch dark night. VIGI Full-Color camera provides maximum 3MP resolutions and ensures colourful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Never miss a detail.
SmartVid-Smart Video Enhancement
VIGI's professional technologies process videos to greatly improve their quality that iwhichtal to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
More compression. More savings. Same quality.
Without extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Outdoor PoE Connection, Simple Wiring
Just connect your camera via an RJ45 and cand able, then the power supply and data transmission are all settled. Waterproof protects stable performance in outdoor scenarios.
CAMERA
Image Sensor
1/2.8" Progressive Scan CMOS
Shutter Speed
1/3 to 1/10000 s
Slow Shutter
Yes
Minimum Illumination
Color: 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism
IR Cut Filter
Day/Night Switch
Day/Night/Auto/Schedule-Switch
Lens
2.8 mm/ 4 mm/ 6 mm
Aperture
2.8 mm: F1.6
4 mm: F1.6
6 mm: F1.6
Lens Mount
M12
Viewing Angle
2.8mm: 107.5°/57.2°/128.7°(H/V/D)
4mm: 89.1°/45.1°/106.9°(H/V/D)
6mm: 55.1°/30.2°/64°(H/V/D)
IR Working Distance
30m
Weatherproof Rating
IP67
Digital Noise Reduction
3D DNR
WDR
DWDR
LENS
Type
Fixed Focal Lens
Focal Length
2.8/4/6 mm
Aperture
F1.6
FOV
2.8 mm:
Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7°
4 mm:
Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9°
6 mm:
Horizontal FOV: 55.1°, Vertical FOV:30.2°, Diagonal FOV: 64°
Lens Mount
M12
DORI Distance
2.8 mm:
Detect: 52 m (170 ft)
Observe: 22 m (71 ft)
Recognize: 10 m (34 ft)
Identify: 5 m (17 ft)
4 mm:
Detect: 70 m (230 ft)
Observe: 29 m (96 ft)
Recognize: 14 m (46 ft)
Identify: 7 m (23 ft)
6 mm:
Detect: 100 m (327 ft)
Observe: 41 m (136 ft)
Recognize: 20 m (65 ft)
Identify: 10 m (33 ft)
VIDEO
Max. Resolution
2304 × 1296
Main Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
704x576, 640x480, 352x288, 320x240
Bit Rate Control
CBR, VBR
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type
Main Profile/High Profile
H.264+
Main Stream Supported
H.265 Type
Main Profile
H.265+
Main Stream Supported
Video Bit Rate
Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
ILLUMINATOR
IR LED
Quantity: 2
Range: 30m
Wavelength: 850nm
Illuminator On/Off Control
Auto/Scheduled/Always on/Always off
ANGLE ADJUSTMENT (MANUAL)
Range
Pan: -90° to 90°
Tilt: -90° to 90°
Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range
DWDR
SNR
= 52 dB
Image Parameters Switch
Yes
Privacy Mask
Up to 4 Masks
ROI
1 Region
OSD Setting
Yes
NETWORK
Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage
NAS (NFS, SMB/ CIFS)
Protocol
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,RTSP, NTP, UPnP UDP, SSL/TLS
API
ONVIF
Simultaneous Live View
3 Main Streams & 3 Sub-Streams
Client
VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser
Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud
Yes
ONVIF
Yes
INTERFACES
Network Interface
1 RJ45 10/100M Self-Adaptive Ethernet Port
Power
DC Power Port
Built-in Microphone
Yes
ALARM AND EVENT MANAGEMENT
Smart Event
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event
Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage
White Light Flashing, Message Push
Output Notification
Message Push
GENERAL
Package Contents
VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Operating Temperature
-30-60 °C
Storage Temperature
-40-60 °C
Storage Humidity
95% or Less (Non-Condensing)
Operating Humidity
95% or Less (Non-Condensing)
Dimensions( H X W X D )
174 × 78 × 70 mm
Material
Plastic
General Features
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight
0.26 Kg
Gross Weight
0.4 Kg
Power Consumption
12V DC: Max 5.4W
PoE: Class 0
Power Supply
12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
Protection
IP67
Product Dimensions (L x W x H)
174 × 78 × 71 mm
Certifications
CE/BSMI/VCCI/ONVIF
VIDEO/IMAGE
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Frame Rate & Resolutions
Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240
Max. Resolution
3MP (2304 × 1296)
Video Streaming
Main Stream
Sub-Stream
Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Video Bit Rate
64 Kbps to 4 Mbps
Day/Night Switch
Day/Night/Auto/Schedule
SMART FEATURE-SET
Smart Event
Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event
Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method
Trigger Notification: ONVIF, HTTPS
Region of Interest
1 Region
