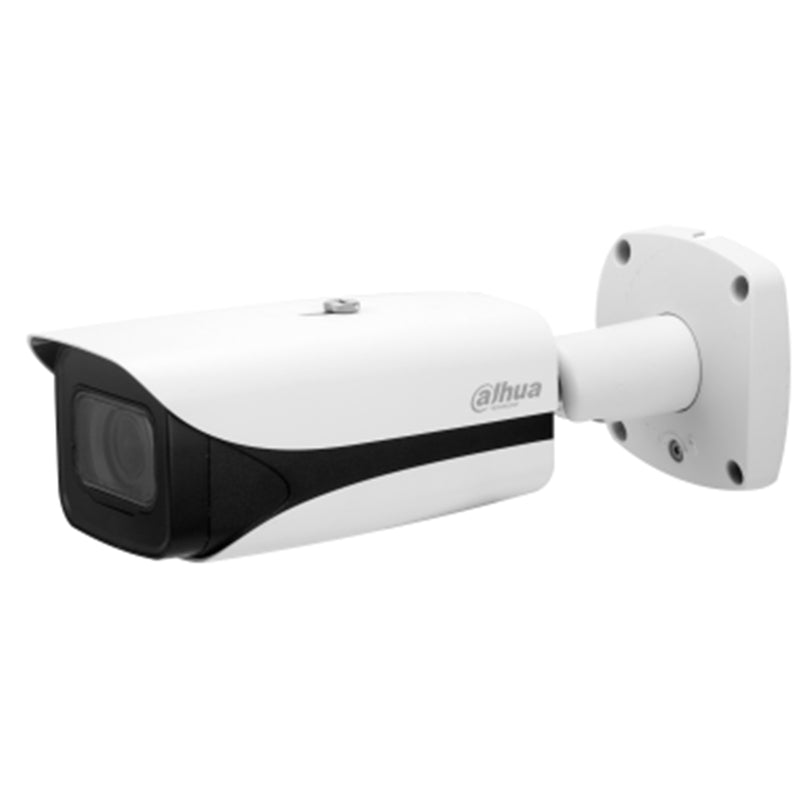

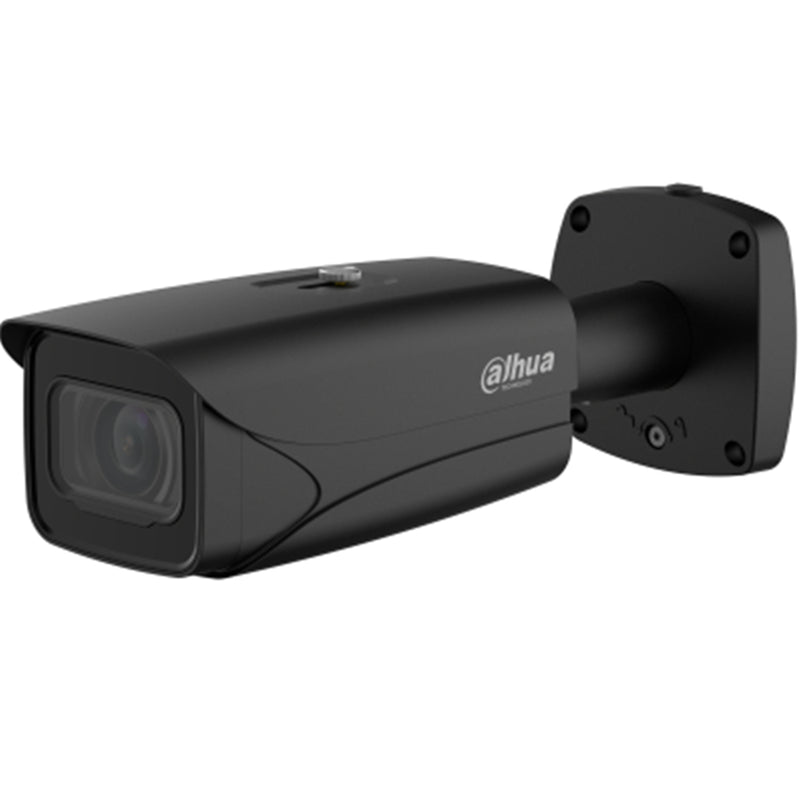

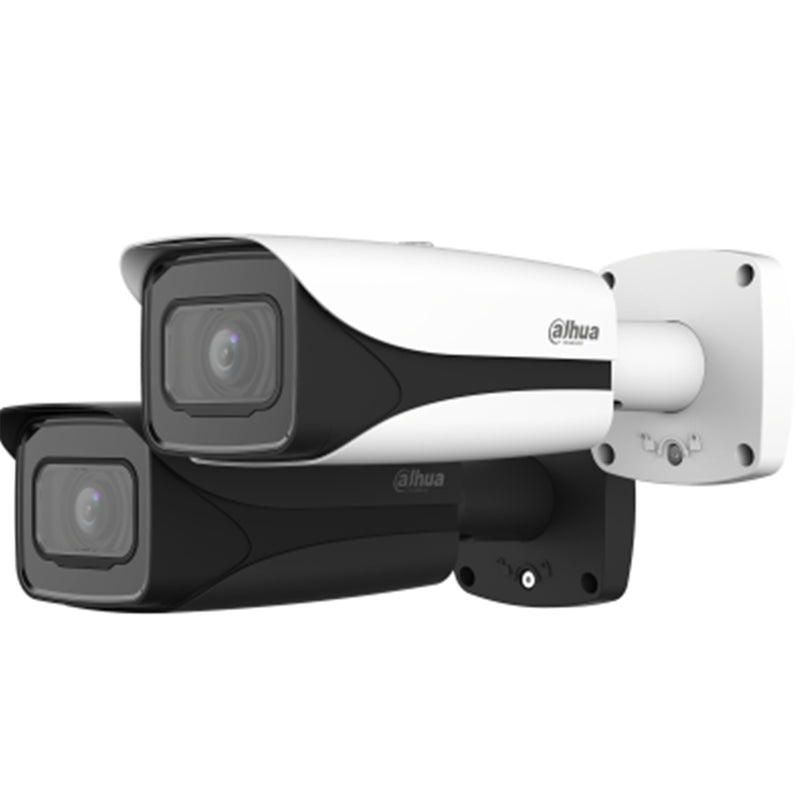

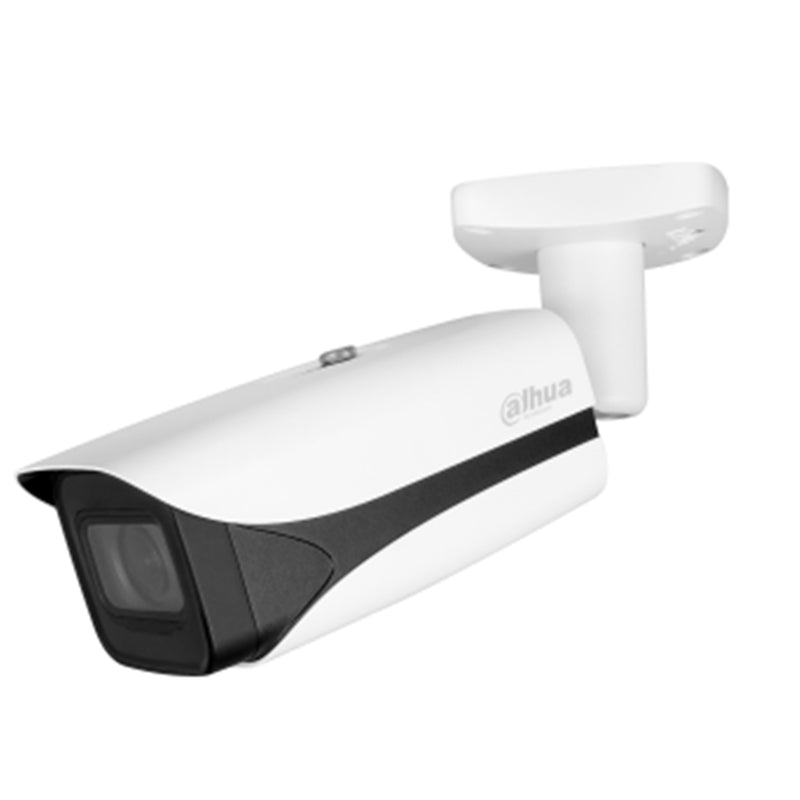

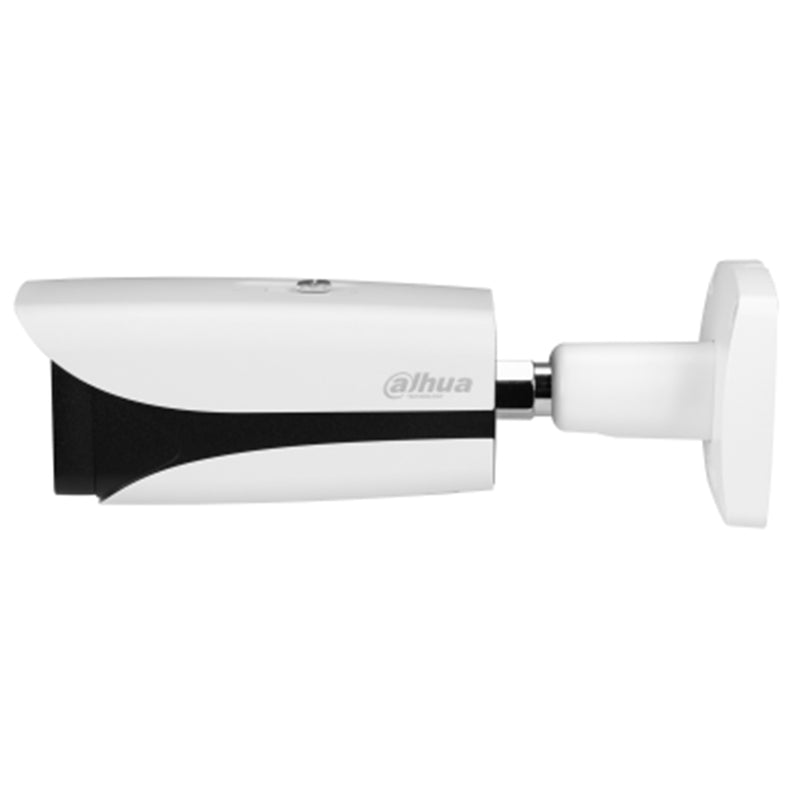

Dahua DH-IPC-HFW5241EP-Z12E 2MP IR Vari-focal Bullet WizMind Network Camera
Term:
100% Traditional Laybuy. Delivery after full payment.
Attention, eager beaver! Need your delivery in a flash?
No worries, mate! We're here to save the day! Just give us an email at contact@layawayau.com and let us know if you would like to pay more or less each week. Rest assured, we'll also provide you with an estimated delivery date when we make these changes. So don't you worry, your delivery dreams are in safe hands!
5MP Lite IR Vari-focal Dome Network Camera
- 5MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
- Outputs max. 5MP (2592 x 1944) @ 20 fps, and supports 2688 x 1520 (2688 x 1520) @ 25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, max IR distance: 40 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire
- Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 GB Micro SD card
- 12V DC/PoE power supply
- IP67, IK10 protection grade
Camera
Image Sensor-1/2.7" 5Megapixel progressive CMOS
Max. Resolution-2592 (H) × 1944 (V)
ROM-128 MB
RAM-256 MB
Scanning System-Progressive
Electronic Shutter Speed-Auto/Manual 1/3 s-1/100000 s
Min. Illumination-0.008 Lux @ F1.5
S/N Ratio->56 dB
Illumination Distance-40 m (131.2 ft)
Illuminator On/Off Control-Auto/Manual
Illuminator Number-2 (IR LED)
Pan/Tilt/Rotation RangePan: 0°-355°
Tilt: 0°-75°
Rotation: 0°-355°
Lens
Lens Type-Motorized vari-focal
Mount Type-f14
Focal Length-2.7 mm-13.5 mm
Max. Aperture-F1.5
Field of View-Horizontal: 100°-26°,Vertical: 72°-20°,Diagonal: 133°-33°
Iris Type-Fixed
Close Focus Distance-0.8m-0.8m (2.62 ft-2.62 ft)
DORI Distance:
Lens W; Detect 64.0 m (209.97 ft); Observe 25.6 m (83.99 ft); Recognize 12.8 m (41.99 ft); Identify 6.4 m (21.00 ft)
Lens T; Detect 220 m(721.78 ft); Observe 88 m(288.71 ft); Recognize 44 m(144.36 ft); Identify 22 m(72.18 ft)
Smart Event
IVS-Tripwire; intrusion
Video
Video Compression-H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec-Smart H.265+/ Smart H.264+
Video Frame Rate:
Main stream:
2592 × 1944 (1 fps-20 fps)
2688 × 1520 (1 fps-25/30 fps)
Sub stream:
704 × 576 (1 fps-25 fps)
704 × 480 (1 fps-30 fps)
Stream Capability-2 streams
Resolution:
2592×1944(2592×1944); 2688×1520(2688×1520); 3M(2048×1536); 2304×1296(2304×1296); 1080p(1920×1080); 1.3M(1280 × 960); 720p(1280×720); D1(704× 576/704×480); VGA(640×480); CIF(352×288/352×240)
Bit Rate Control-CBR/VBR
Video Bit Rate:
H.264: 32 kbps-8192 kbps
H.265: 12 kbps-8192 kbps
Day/Night-Auto(ICR)/Color/B/W
BLC-Yes
HLC-Yes
WDR-120 dB
White Balance-Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control-Auto/Manual
Noise Reduction-3D NR
Motion Detection-OFF/ON (4 areas, rectangular)
Region of Interest(RoI)-Yes (4 areas)
Smart Illumination-Yes
Image Rotation-0°/90°/180°/270° (Supports 90°/270° with 2592 × 1944 resolution and lower.)
Mirror-Yes
Privacy Masking-4 areas
Audio
Audio Compression-G.711a; G.711Mu; G.726
Alarm
Alarm Event:
No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception; local alarm
Network-RJ-45 (10/100 Base-T)
SDK and API-Yes
Cyber Security
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
ProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE;
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host-20
Storage-FTP; Micro SD card (support max. 256 G); NAS; SFTP
Browser-IE, Chrome, Firefox
Management Software
Smart PSS; DSS; DMSS
Mobile Phone
IOS; Android
Certifications:
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input-1 channel (RCA port)
Audio Output-1 channel (RCA port)
Alarm Input-1 channel In: 5mA 5VDC
Alarm Output-1 channel Out: 300mA 12VDC
Power
Power Supply-12V DC/PoE (802.3af)
Power Consumption< 8.0W
Environment
Operating Conditions:-30°C to +60°C (-22°F to +140°F)/less than = 95%
Storage Temperature:-40°C to +60°C (-40°F to +140°F)
Protection-IP67, IK10
Structure-Casing Metal
Dimensions-F122 mm × 88.9 mm (F4.80" × 3.50")
Net Weight-0.47 kg (1.1 lb)
Gross Weight-0.63 kg (1.4 lb)
