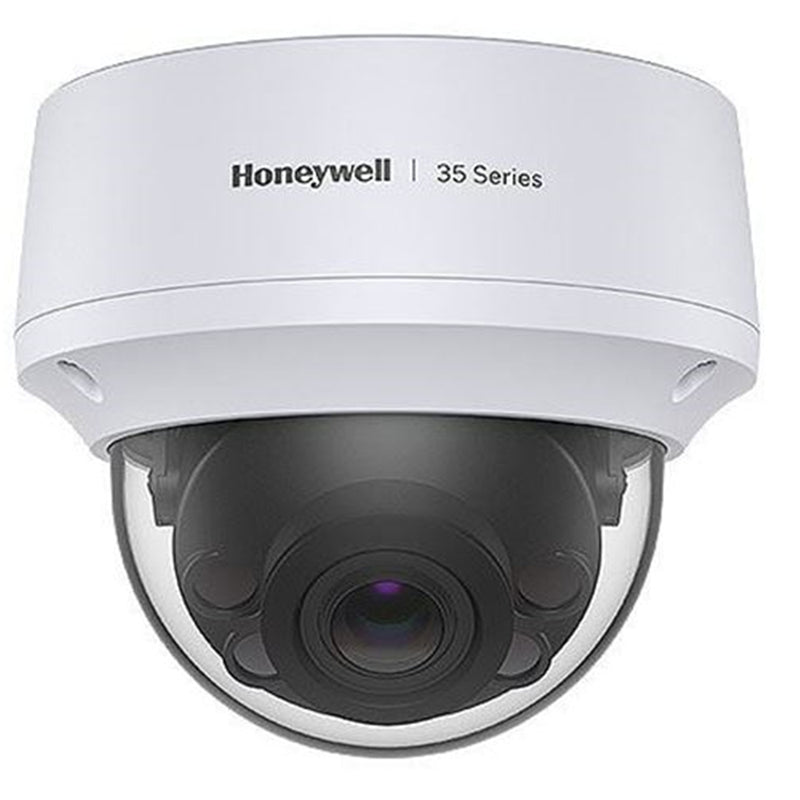

Honeywell HC35W45R3 35 Series 5MP WDR IR IP Dome Camera with 2.8mm Fixed Lens. Up to 40MIR.RuggedOutdoor IP66 Housing. IK10 Vandal Resistant PoE (IEEE 802.3af) or 12VDC. True WDR, 120dB Auto (ICR) / Colour
Term:
100% Traditional Laybuy. Delivery after full payment.
Attention, eager beaver! Need your delivery in a flash?
No worries, mate! We're here to save the day! Just give us an email at contact@layawayau.com and let us know if you would like to pay more or less each week. Rest assured, we'll also provide you with an estimated delivery date when we make these changes. So don't you worry, your delivery dreams are in safe hands!
Upgraded H.265 encoding technology, Dahua Lite series network camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better color imagess in the condition of low illumination. It supports SD card storage, dust-proof function, waterproof function and vandal-proof function, complying with the standards of IP67 and IK10 (Supported by some select models).
- 4MP, 1/3" CMOS image sensor, low illuminance, high image definition
- Outputs 4MP (2560 x 1440) @ 25/30 fps, max. supports 4MP (2688 2 1520) @ 20 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, max IR distance: 60 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire
- Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, local alarm, voltage detection, audio abnormal
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 GB Micro SD card
- 12V DC/PoE power supply
- IP67 protection ,IK10 protection (optional)
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
WDR
With advanced Wide Dynamic Range (WDR) technology, Dahua network camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.
Starlight
With advanced image processing technology and optical technology, Dahua Starlight technology can provide clear colorful video in the environment of low illuminance. It widely applies to various environments of low illuminance.
IVS
With advanced video algorithm, Dahua IVS technology supports intelligent functions, such as tripwire and intrusion.
Cyber Security
Dahua network camera is equipped with a series of key security technologies, such as security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage, which improve its security defense and data protection, and prevent malicious programs from invading the device.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Camera
Image Sensor-1/3" 4Megapixel progressive CMOS
Effective Pixels-2688 (H) x 1520 (V)
ROM-128 MB
RAM-128 MB
Scanning System-Progressive
Electronic Shutter Speed-Auto/Manual 1/3 s-1/100000 s
Min. Illumination-0.008 Lux @ F1.5
S/N Ratio >56 dB
Illumination Distance-60 m (196.85 ft)
Illuminator On/Off Control-Auto/Manual
Illuminator Number-4 (IR LED)
Pan/Tilt/Rotation Range:
Pan: 0°-360°
Tilt: 0°-90°
Rotation: 0°-360°
Len-Lens Type
Motorized vari-focal
Mount Type-f14
Focal Length-2.7 mm-13.5 mm
Max. Aperture-F1.5
Field of View:
Horizontal: 104°-27°
Vertical: 55°-15°
Diagonal: 124°-31°
Iris Type-Fixed
Close Focus Distance-0.8 m-0.8 m (2.62 ft-2.62 ft)
DORI Distance:
Lens W, Detect 64 m (209.97 ft), Observe 25.6 m (83.99 ft), Recognize 12.8 m (41.99 ft), Identify 6.4 m (21.00 ft)
Lens T, Detect 220 m(721.78 ft), Observe 88 m(288.71 ft), Recognize 44 m(144.36 ft), Identify 22 m(72.18 ft)
Smart Event-IVS Tripwire; intrusion
Video
Video Compression-H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec-Smart H.265+/ Smart H.264+
Video Frame Rate:
Main stream:
2688 x 1520 (1 fps-20 fps)
2560 x 1440 (1 fps-25/30 fps)
Sub stream:
704 x 576 (1 fps-25 fps)
704 x 480 (1 fps-30 fps)
Stream Capability-2 streams
Resolution:
2688 x 1520 (2688 x 1520); 2560 x 1440 (2560 x 1440); 2304 x 1296 (2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)
Bit Rate Control-CBR/VBR
Video Bit Rate:
H.264: 32 kbps-6144 kbps
H.265: 12 kbps-6144 kbps
Day/Night-Auto(ICR)/Color/B/W
BLC-Yes
HLC-Yes
WDR-120 dB
White Balance-Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control-Auto/Manual
Noise Reduction-3D NR
Motion Detection-OFF/ON (4 areas, rectangular)
Region of Interest(RoI)-Yes (4 areas)
Smart Illumination-Yes
Image Rotation-0°/90°/180°/270° (Supports 90°/270° with 2688 x 1520 resolution and lower.)
Mirror-Yes
Privacy Masking-4 areas
Audio
Audio Compression-G.711a; G.711Mu; G.726
Alarm-Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception; local alarm
Network
Network RJ-45 (10/100 Base-T)
SDK and API-Yes
Cyber Security
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol:
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Interoperability:
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host-20
Storage-Dahua Cloud; FTP; Micro SD card (support max. 256 G); NAS; SFTP
Browser:
IE
Chrome
Firefox
Management Software
Smart PSS; DSS; DMSS
Mobile Phone
IOS; Android
Port:
Audio Input-1 channel (RCA port)
Audio Output-1 channel (RCA port)
Alarm Input-1 channel In: 5mA 5VDC
Alarm Output-1 channel Out: 300mA 12VDC
Power
Power Supply-12V DC/PoE (802.3af)
Power Consumption-< 9.6W
Environment
Operating Conditions:-30°C to +60°C (-22°F to +140°F)/less than = 95% RH
Storage Temperature:-40°C to +60°C (-40°F to +140°F)
Protection-IP67;IK10(optional)
Structure-Casing Metal
Dimensions-244.1 mm x F90.4 mm (9.61" x F3.26")
Net Weight-0.9 kg (1.98 lb)
Gross Weight-1.15 kg (2.54 lb)
Certifications:
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
