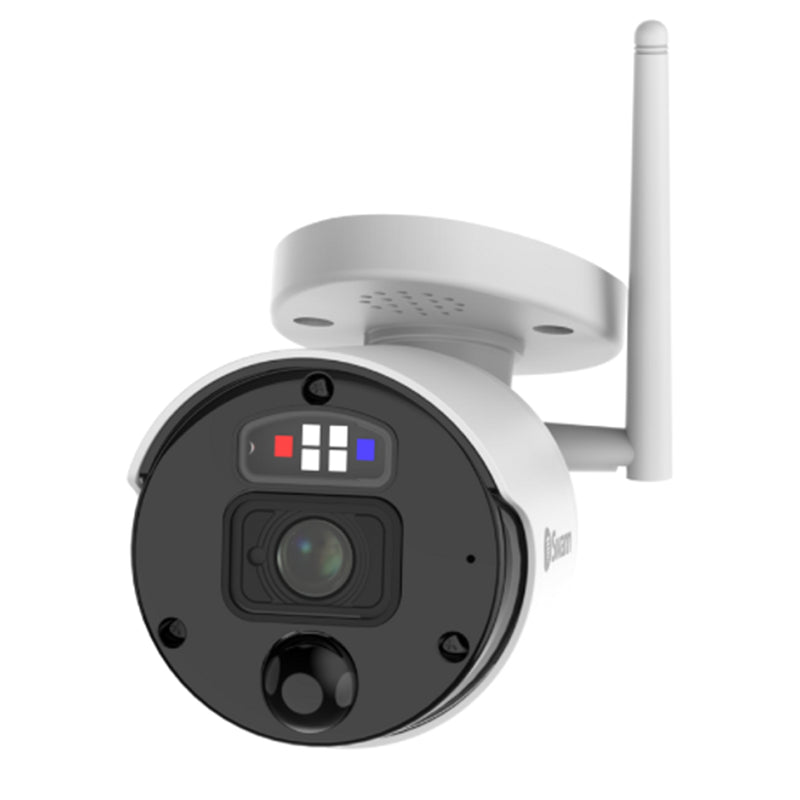

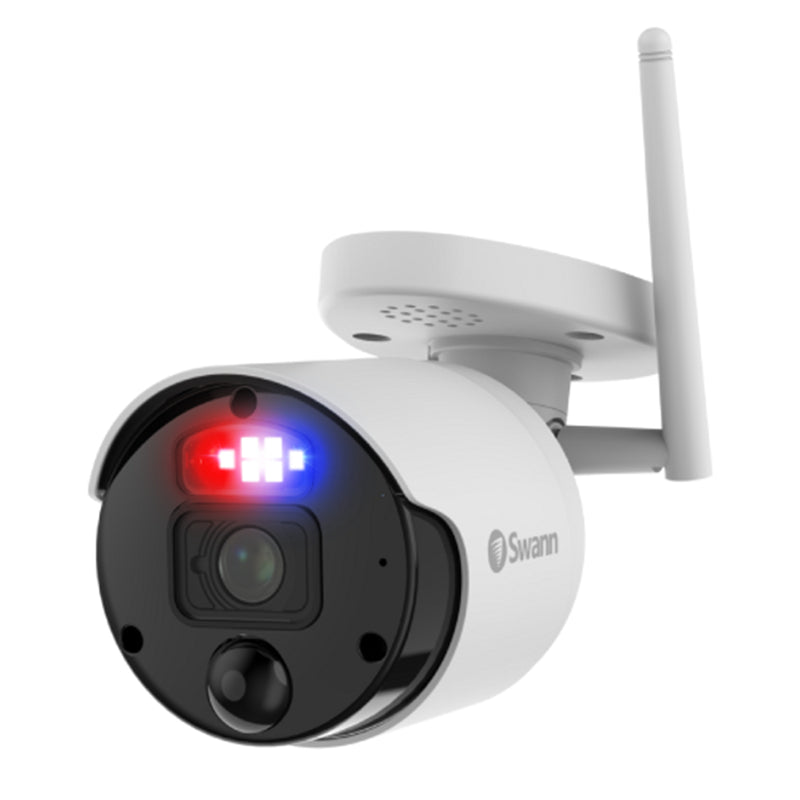

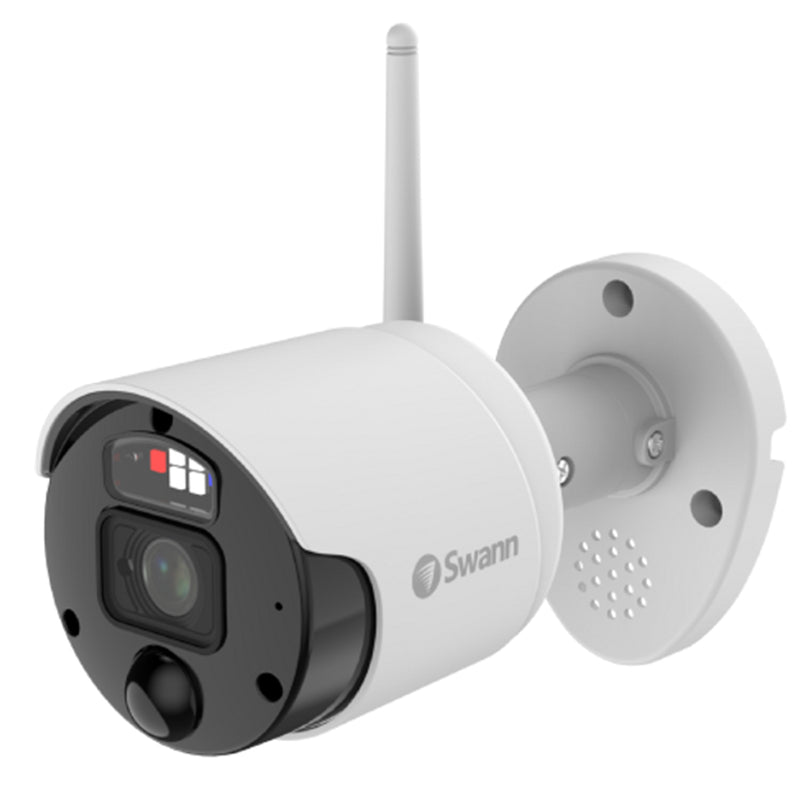

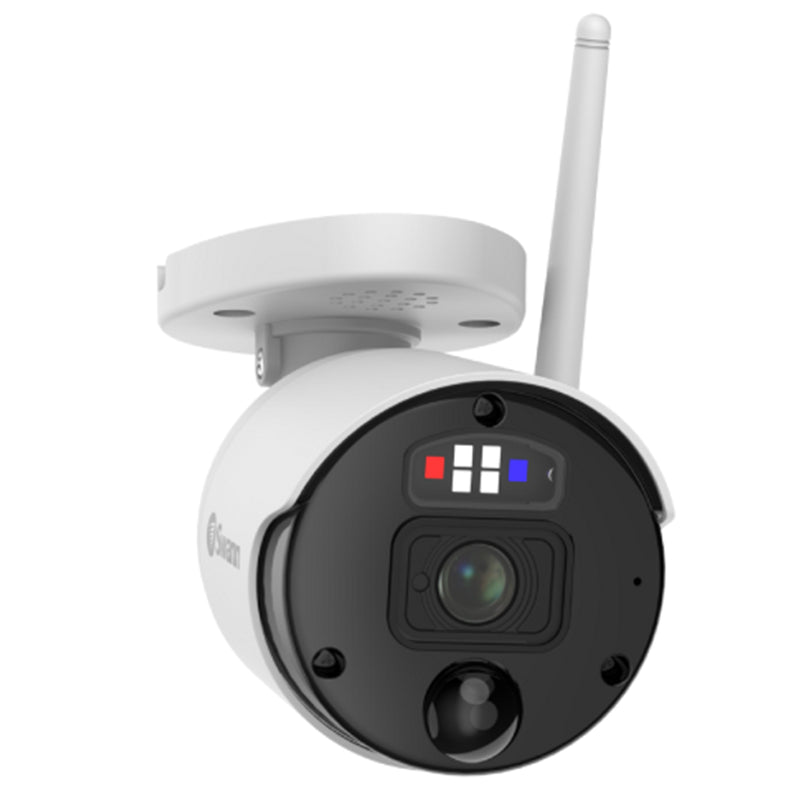

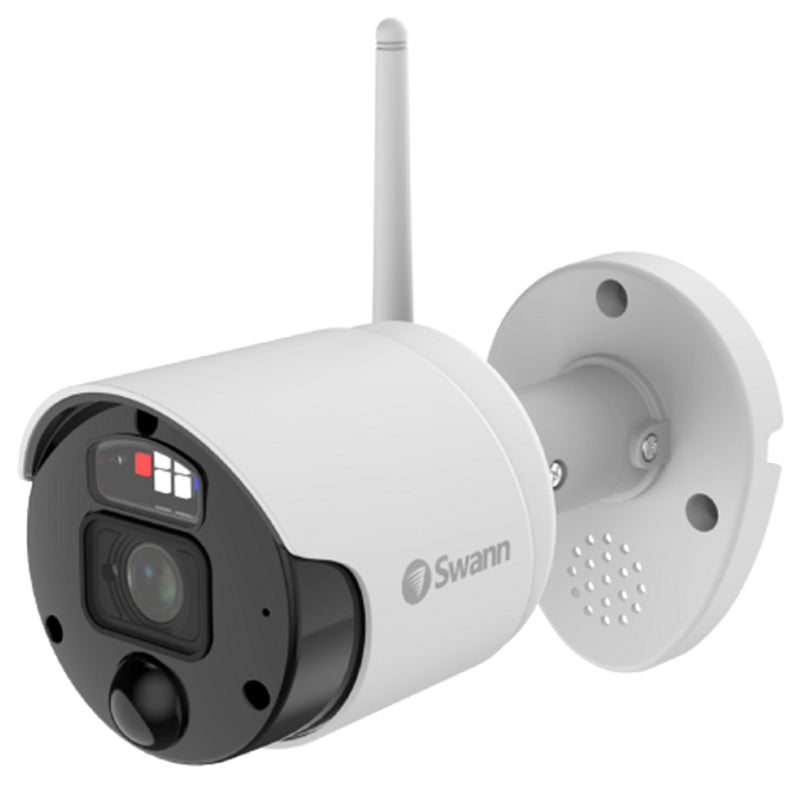

Swann SWNVW-800CAM-AU 4K Wi-FI Add-on Camera

Camera;

Image Sensor:1/1.8"CMOS

Max. Resolution:3840 (H) × 2160 (V)

ROM:128 MB

RAM:1 GB

Scanning System:

Progressive:

Electronic Shutter Speed:Auto/Manual 1/3 s-1/100,000 s

Min. Illumination:

0.004 lux @ F1.4 (Color, 30 IRE)
0.0004 lux @ F1.4 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio:>56 dB

Illumination Distance:120 m (393.7 ft)

Illuminator On/Off Control:Auto; manual; zoomprio

Illuminator Number:4 (IR LED)

Pan/Tilt/Rotation Range:Pan: 0-360°
Tilt:0-90°
Rotation:0-360°

Lens:

Lens Type:Motorized vari-focal

Mount Type:Module

Focal Length:8 mm-32 mm

Max. Aperture:F1.4

Field of View:Horizontal: 42°-14.9°
Vertical: 23.3°-8.6°
Diagonal: 48.5°-16.9°

Iris Control:Hall

Close Focus Distance:W: 3 m (9.84 ft)
T: 5.5 m (18.04 ft)

Smart Event:IVS

Abandoned object; missing object:

Heat Map:Yes

Professional, intelligent:IVS (Perimeter Protection)

Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection

SMD 3.0:Less false alarm, longer detection distance

Face Detection:

Face detection; track; snapshot optimization; snapshot; face enhancement; face exposure; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimized snapshot, quality priority snapshot; face angle filter; optimization time setting

People Counting:

Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports.
Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm.
Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm.

Intelligent Search:

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video:

Video Compression:H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

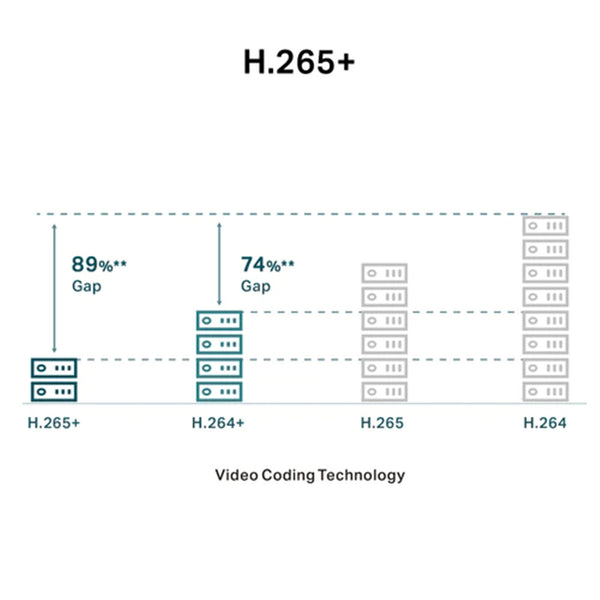

Smart Codec:Smart H.265+;Smart H.264+

AI Coding:AI H.265; AI H.264

Video Frame Rate:Main stream: 3840× 2160 (1 fps-25/30 fps)
Sub stream: D1 (1 fps-25/30 fps)
Third stream: 1080p (1 fps-25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability:3 streams

Resolution:3840 × 2160; 3072 × 2048; 3072 × 1728; 2592 × 1944; 2688 × 1520; 2048 × 1536; 2304 × 1296; 1080p (1920 × 1080); 1.3 MB (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control:CBR/VBR

Video Bit Rate:H.264:3 kbps -20480 kbps
H.265:3 kbps-20480 kbps

Day/Night:Auto (ICR)/Color/B/W

BLC:Yes:

HLC:Yes

WDR:120 dB

White Balance:Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control:Auto; manual

Noise Reduction;3D NR

Motion Detection:OFF/ON (4 areas, rectangular)

Region of Interest (RoI):Yes (4 areas)

Image Stabilization:Electronic Image Stabilization (EIS)

Defog:Yes

Image Rotation:0°/90°/180°/270° (Support 90°/270° with 4 M resolution and lower)

Mirror:Yes

Privacy Masking:8 areas

Audio:

Audio Compression:PCM; G.711a; G.711Mu; G.726; G.723

Alarm::

Alarm Event:No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection; scene changing; intrusion; tripwire; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; input abnormal detection; intensity change detection; people counting; face detection; people counting in area; stay alarm; people No. exception detection; queue management

Network:

Network Port:RJ-45 (10/100 Base-T)

SDK and API:Yes

Cyber Security:Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade

Network Protocol:IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP

Interoperability:ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P

User/Host;20 (Total bandwidth: 80 M)

Storage:FTP; SFTP; Micro SD card (Support max. 256 G); NAS

Browser:IE: IE8 and later
Chrome
Firefox

Management Software:Smart PSS; DSS; DMSS

Mobile Client:iOS; Android

Certification:

Certifications:CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07,UL 50E NEMA Type 4X (optional)

Port:

RS-485:1 (baud rate range:1200 bps-115200 bps)

Audio Input:1 channel (3.5 mm JACK port)

Audio Output:1 channel (3.5 mm JACK port)

Alarm Input:3 channels in: 5 mA 3-5 VDC

Alarm Output:2 channels out: 1,000 mA 30 VDC/500 mA 50 VDC

Power:

Power Supply:12 VDC (±25%)/24 VAC (±30%)/PoE (802.3at)/ePoE

Power Consumption:Basic: 5.5 W (12 VDC); 6.0 W (24 VAC); 6.2 W (PoE)
Max. (H.265 + 3 streams + Intelligence + IR on + heating): 15.9 W (12 VDC); 18.1 W (24 VAC); 18.7 W (PoE)
Heating: 3.3 W ( 12 VDC); 4.4 W (24 VAC); 3.9 W (PoE)

Environment:

Operating Temperature;-40 °C to +60 °C (-40 °F to +140 °F)/Less than 95% RH

Storage Temperature:-40 °C to +60 °C (-40 °F to +140 °F)

Protection:IP67, IK10

Structure:

Casing:Metal + plastic

Product Dimensions:340.1 mm × 138.3 mm × 134.0 mm (13.39" × 5.44" × 5.28") (L × W × H)

Net Weight:1.6 kg (3.5 lb)

Gross Weight:2.4 kg (5.3 lb)
