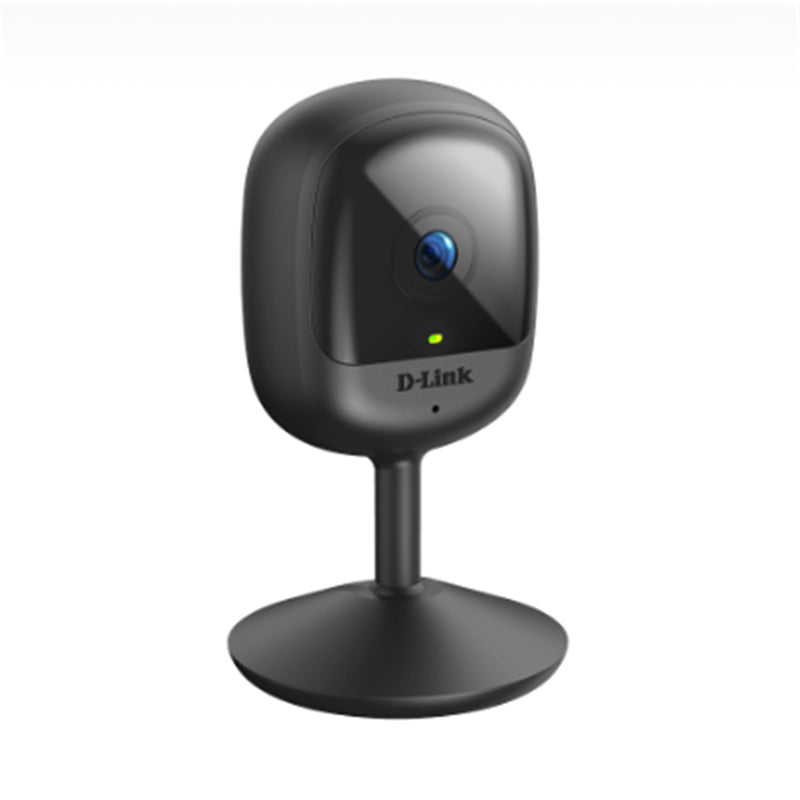

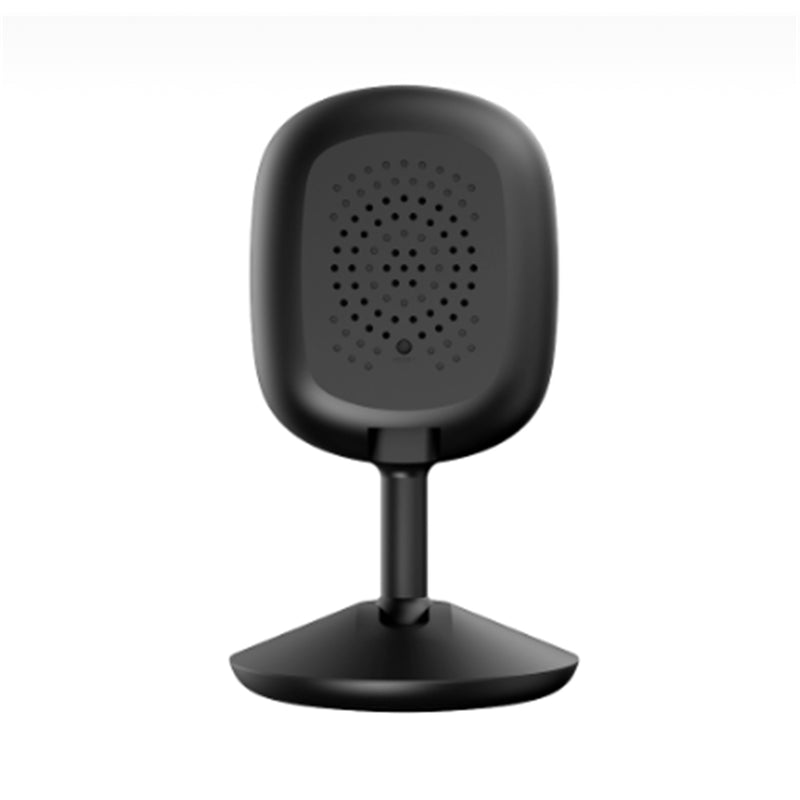

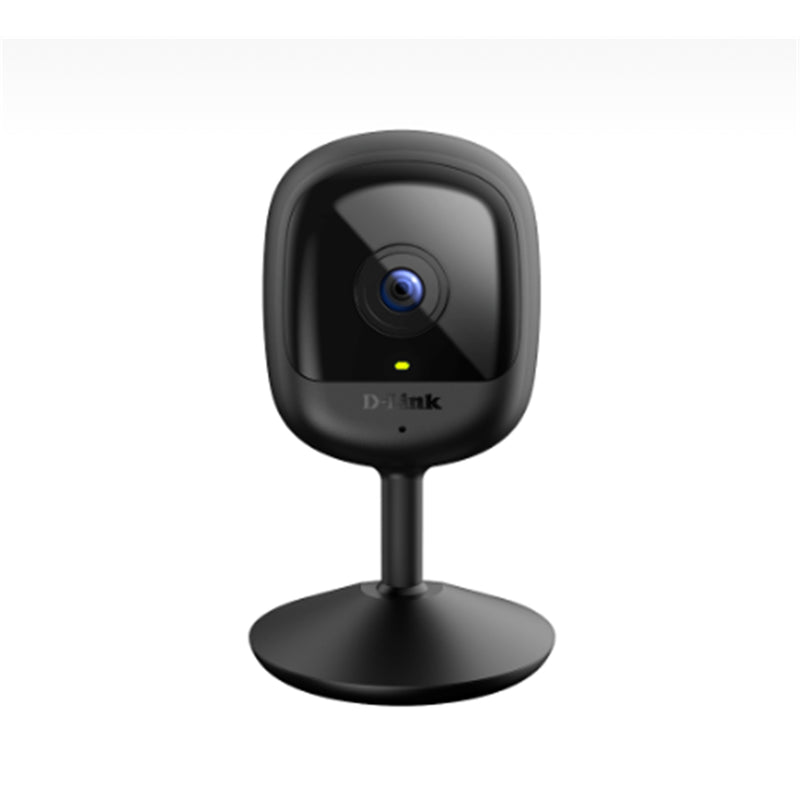

D-Link DCS-6100LH Full HD Wi-Fi Camera
Term:
100% Traditional Laybuy. Delivery after full payment.
Attention, eager beaver! Need your delivery in a flash?
No worries, mate! We're here to save the day! Just give us an email at contact@layawayau.com and let us know if you would like to pay more or less each week. Rest assured, we'll also provide you with an estimated delivery date when we make these changes. So don't you worry, your delivery dreams are in safe hands!
Looking for a higher resolution? It's right here.
2MP Full-High Definition
The VIGI C420I camera comes with 2MP-more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Never miss a detail.
SmartVid-Smart Video Enhancement
VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Corridor Mode
Rotate the live image and lens 90° clockwise simultaneously. This way, your image aspect ratio changes from 16:9 to 9:16, helping you monitor long and narrow areas and providing a more natural viewing experience.
Simplified Deployment with PoE
Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
Choose the right lens for your security.
2.8/4 mm Lens
Whether you need a wide angle lens to cover enclosed spaces like elevators or a higher millimeter lens for longer distances in open spaces like parking lots, C420I comes with two different lens versions to better suit your security needs.
Flexible Installation
Easily route your camera's cable into a dropped ceiling or avoid drilling by slotting it through the camera's side outlet.
Flexible Management
Take full control over your security via three management methods: NVR UI, VIGI app, and VIGI Security Manager.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you've worked hard to build - whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
CAMERA
Image Sensor
1/3" Progressive Scan CMOS
Lens
2.8 mm/ 4 mm
Day/Night Switch
Unified/ Scheduled/ Auto
Digital Noise Reduction
3D DNR
WDR
DWDR
IR Working Distance
30m
Shutter Speed
1/3 to 1/10000 s
Aperture
2.8 mm: F2.2
4 mm: F2.0
Lens Mount
M12
Viewing Angle
2.8mm: 88.2°/48.7°/106.5°(H/V/D)
4mm: 74.6°/41.3°/88.1°(H/V/D)
Slow Shutter
Yes
Minimum Illumination
Color: 0.1 Lux; 0 Lux with IR
Day/Night Mechanism
IR Cut Filter
NETWORK
Protocol
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF
Yes
API
ONVIF
Simultaneous Live View
3 Main Streams & 3 Sub-Streams
Client
VIGI App, VIGI Security Manager, VIGI NVR
Web Browser
Google Chrome 57 and above
Firefox 52 and above
Safari 11 and above
Microsoft Edge 91 and above
Cloud
Yes
Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
GENERAL
Operating Temperature
-30-60 °C
Storage Temperature
-40-60 °C
Operating Humidity
95% or Less (Non-Condensing)
Storage Humidity
95% or Less (Non-Condensing)
Package Contents
VIGI Network Camera
Quick Start Guide
Mounting Accessories
Dimensions( H X W X D )
123 × 123 × 83 mm
Material
Plastic
General Features
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight
0.19 Kg
Gross Weight
0.34 Kg
Power Consumption
PoE: Class 0
Power Supply
PoE (802.3af/at, class 0)
Product Dimensions (L x W x H)
123× 83× 123 mm
Certifications
CE/BSMI/VCCI/ONVIF
INTERFACES
Network Interface
1 RJ45 10/100M Self-Adaptive Ethernet Port
ALARM AND EVENT MANAGEMENT
Smart Event
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event
Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage
Message Push
Output Notification
Message Push
VIDEO/IMAGE
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Frame Rate & Resolutions
Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 1920x1080, 1280x960, 1280x720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240
Max. Resolution
2MP (1920 × 1080)
Video Streaming
Main Stream
Sub-Stream
Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Video Bit Rate
64 Kbps to 4 Mbps
Day/Night Switch
Day/Night/Auto/Schedule
SMART FEATURE-SET
Smart Event
Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event
Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method
Trigger Notification: ONVIF, HTTPS
Region of Interest
1 Region
AUDIO
Environment Noise Filtering
Yes
ILLUMINATOR
IR LED
Quantity: 1
Range: 30m
Wavelength: 850nm
Illuminator On/Off Control
Auto/Scheduled/Always on/Always off
LENS
Type
Fixed Focal Lens
Focal Length
2.8/4 mm
Aperture
2.8 mm: F2.2
4 mm: F2.0
FOV
2.8mm:
Horizontal FOV: 88.2°, Vertical FOV: 48.7°, Diagonal FOV: 106.5°
4mm:
Horizontal FOV: 74.6°, Vertical FOV: 41.3°, Diagonal FOV: 88.1°
Lens Mount
M12
DORI Distance
2.8 mm
Detect: 45 m (149 ft)
Observe:19 m (62 ft)
Recognize: 9 m (30 ft)
Identify: 5 m (15 ft)
4 mm
Detect: 60 m (198 ft)
Observe: 25 m (83 ft)
Recognize: 12 m (40 ft)
Identify: 6 m (20 ft)
ANGLE ADJUSTMENT (MANUAL)
Range
Pan: 0° to 360°
Tilt: 0° to 85°
Rotate: 0° to 360°
VIDEO
Max. Resolution
1920 × 1080
Main Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
1920x1080, 1280x960, 1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
704x576, 640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control
CBR, VBR
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type
Main Profile/High Profile
H.264+
Main Stream Supported
H.265 Type
Main Profile
H.265+
Main Stream Supported
Video Bit Rate
Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range
WDR
SNR
= 52 dB
Image Parameters Switch
Yes
Privacy Mask
Up to 4 Masks
ROI
1 Region
OSD Setting
Yes
