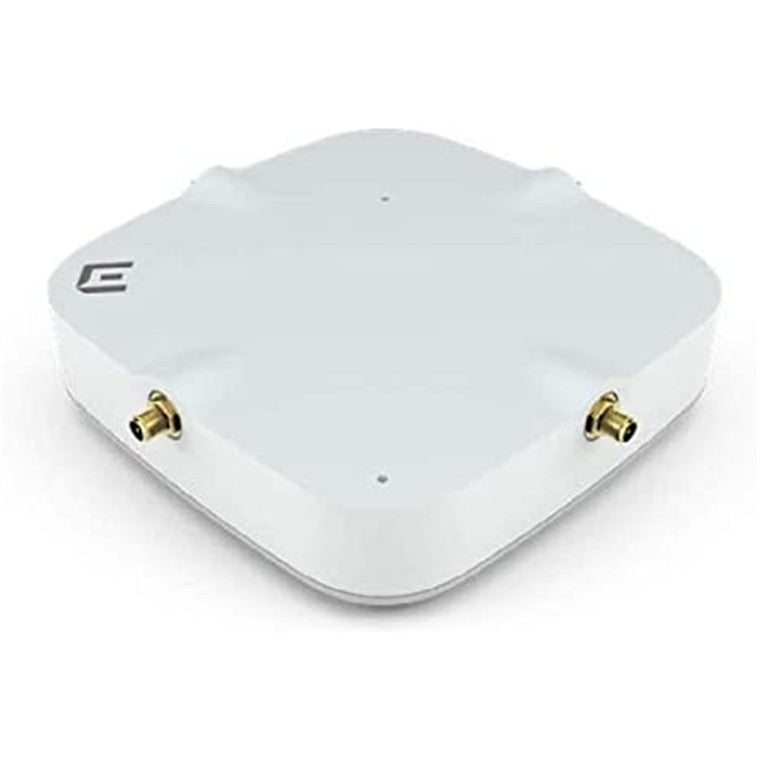

Extreme Networks ExtremeWireless AP305CX Wi-Fi 6 (802.11ax) Indoor Access Point
Term:
100% Traditional Laybuy. Delivery after full payment.
Attention, eager beaver! Need your delivery in a flash?
No worries, mate! We're here to save the day! Just give us an email at contact@layawayau.com and let us know if you would like to pay more or less each week. Rest assured, we'll also provide you with an estimated delivery date when we make these changes. So don't you worry, your delivery dreams are in safe hands!
FortiAPž¢ Universal Access Point Series
The FortiAP-U family offers a wide range of models with the additional flexibility of dual 5 GHz support for WiFi 6 APs. Perfect for everything from a large campus to hundreds of branch locations the FortiAP-U family has a variety of form factors and performance levels. FortiAP-U access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance, through the FortiAP Cloud provisioning and management portal, or through standalone controllers (FortiWLC). Protect your LAN Edge from the campus to the branch with these high capacity capable APs.
These enterprise class Wi-Fi6 (802.11ax) indoor APs provide three radios. These topof-the-line access points provide OFDMA, a 2.5 Gigabit Ethernet port plus an additional 1 Gbps Ethernet port for PoE diversity. The APs can be configured for dual 5 GHz band access while still providing coverage for devices on the 2.4 GHz band, or can be configured to offer dedicated scanning. The integrated BLE radio can be used for beacons and locationing applications.
Universal Access Management
Ability to intelligently support standalone controllers (FortiWLC), integrated security controllers (FortiGate), and cloud management options; and establish a new benchmark in flexibility, performance, and security.
Latest Wi-Fi technologies
Wi-Fi 6 technology with data rates of up to 4.8 Gbps and OFDMA improves client throughput and overall network efficiency.
Unmatched Security Protection
Integrates with Fortinet's Security Fabric, providing unparalleled cybersecurity protection at the network edge.
Highlights
Fortinet Universal access points are designed to support a variety of deployments from branches, to medium to large offices, schools, universities, hospitals, hotels, and large retail stores. The Universal access points can serve such a wide range of applications because they can be managed by any of Fortinet's control and management offerings: FortiGate, FortiWLC, and FortiAP Cloud.
Figure 1 - Universal Access Management, highest Gigabit Wi-Fi performance and unmatched security protection
Education
The Education sector is at rising risk from cyber attacks. This in conjunction with requirements to protect minors from inappropriate materials can make deploying wireless a challenge. Our integrated secure wireless controller (FortiGate) ensures secure student access to learning resources while FortiGuard services provides cybersecurity protection.
Figure 2 - Educational organizations with Universal APs managed by on-premise FortiGate controllers.
Healthcare
Patient safety is priority one. Fortinet Universal APs empower hospitals to improve patient safety by enabling life-critical applications such as telemetry requiring low bandwidth but exceptionally high reliability. Our dedicated wireless controllers (integrated WLAN controller of any FortiGate security appliance) connected to our Universal access points ensures patient safety remains paramount, while providing improved performance for wireless enabled medical devices.
Figure 3 - Healthcare organizations with Universal APs managed by on-premise FortiGate acting as a Wireless controller.
Small/Medium Business
Retailers can streamline Wi-Fi store deployments through the combination of Universal APs and FortiAP Cloud management. This, in combination with FortiDeploy for zero-touch provisioning and deployment, offers a cost-effective solution for retail IT.
Figure 4 - Retail store with Universal APs managed by FortiCloud.
Hardware
Hardware Type Indoor
Number of Radios 3 + 1 BLE
Number of Antennas 10 Internal + 1 BLE Internal
Antenna Type and Peak Gain PIFA: 4 dBi for 2.4 GHz, 6 dBi for 5 GHz
Frequency Bands (GHz) 2.400-2.4835, 5.150-5.250, 5.250-5.350, 5.470-5.725, 5.725-5.850
Radio 1 Capabilities
5.0 GHz a/n/ac/ax
(4x4:4 stream) 20/40/80/160 MHz
(64/256/1024 QAM)
Radio 2 Capabilities
2.4 GHz or 5.0 GHz (high band) a/b/g/n/ac/ax
(4x4:4 stream) 20/40/80/160 MHz
(64/256/1024 QAM)
Radio 3 Capabilities
2.4/5.0 GHz dual band b/g/n/ac
(2x2:2 stream) 20/40 MHz
(64 QAM)
Maximum Data Rate
Radio 1: up to 4,804 Mbps
Radio 2: up to 4,804 Mbps
Radio 3: up to 300 Mbps
Bluetooth Low Energy Radio
Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power
Interfaces
1x 10/100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45,
1x Type A USB, 1x RS-232 RJ45 Serial Port
Power over Ethernet (PoE) Dual redundant PoE power ports with support for IEEE 802.3at or dual 802.3af power
Simultaneous SSIDs Up to 16 (14 if background scanning enabled)
EAP Type(s)
EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication
WPAž¢, WPA2ž¢, and WPA3ž¢ with 802.1x or Preshared key,
WEP, Web Captive Portal, MAC blocklist & allowlist
Maximum Tx Power (Conducted)
Radio 1: 5 GHz: 24 dBm / 251 mW (4 chains combined)*
Radio 2: 2.4 GHz: 26 dBm / 398 mW (4 chains combined)*
5 GHz: 24 dBm / 251 mW (4 chains combined)*
Radio 3: 2.4 GHz: 22 dBm / 158 mW (2 chains combined)*
Kensington Lock Yes
IEEE Standards
802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az, 802.11ax
SSID Types Supported Local-Bridge, Mesh, & Tunnel
Per Radio Client Capacity Up to 512 per Radio1 and Radio2
Cellular Co-existence** Yes
Reset Button Yes
Notes
** Frequency selection and power may be restricted to abide by regional regulatory compliance laws.
** Additional filtration added to reduce interference in 2.4GHz band from nearby cellular equipment.
LED Off Mode Yes
Advanced 802.11 Features
Transmit Beam Forming (TxBF) Yes
Low-Density Parity Check (LDPC) Encoding Yes
Maximum Likelihood Demodulation (MLD) Yes
Maximum Ratio Combining (MRC) Yes
A-MPDU and A-MSDU Packet Aggregation Yes
OFDMA Yes (UL and DL)
2.4 GHz OFDMA Yes
Spatial Reuse (BSS Coloring) Yes
HE-MU-MIMO Yes
UL-MU-MIMO 802.11ax mode Yes
UL-MU-MIMO 802.11ac mode No
DL-MU-MIMO Yes
Enhanced Target Wake Time (TWT) Yes
ZeroWait DFS /Agile DFS Yes
Wireless Monitoring Capabilities Rogue Scan Radio Modes
Background, Dedicated WIPS / WIDS Radio Modes
Background, Dedicated (recommended)
Packet Sniffer Mode Yes
Spectrum Analyzer Yes
Dimensions
Length x Width x Height 8.46 x 8.46 x 2.26 inches
(215 x 215 x 57.5 mm)
Weight 1.0 lb (0.453 kg)
Package (shipping) Weight 1.8 lbs (0.82 kg)
Mounting Options Ceiling, T-Rail, and Wall
Included Accessories Mount kits for Ceiling, T-Rail, and Wall
Environment
Power Supply GPI-130, or 2x GPI-115 GPI-130, or 2x GPI-115, or AC adapter SPFAP43F-PA-X-5
Power Consumption (Maximum) 24.5 W
Humidity
10-90% Non-Condensed
5-90% Condensed
Operating / Storage Temperature 32-122°F (0-50°C) / -31-158°F (-35-70°C)
Directives
Low Voltage Directive RoHS
UL2043 Plenum Material Yes
Mean Time Between Failures >30 Years
Hit-less PoE Failover Yes (802.3at only)
Certifications
Wi-Fi Alliance Certified Yes
DFS FCC, IC, CE, Japan, Taiwan, Korea
