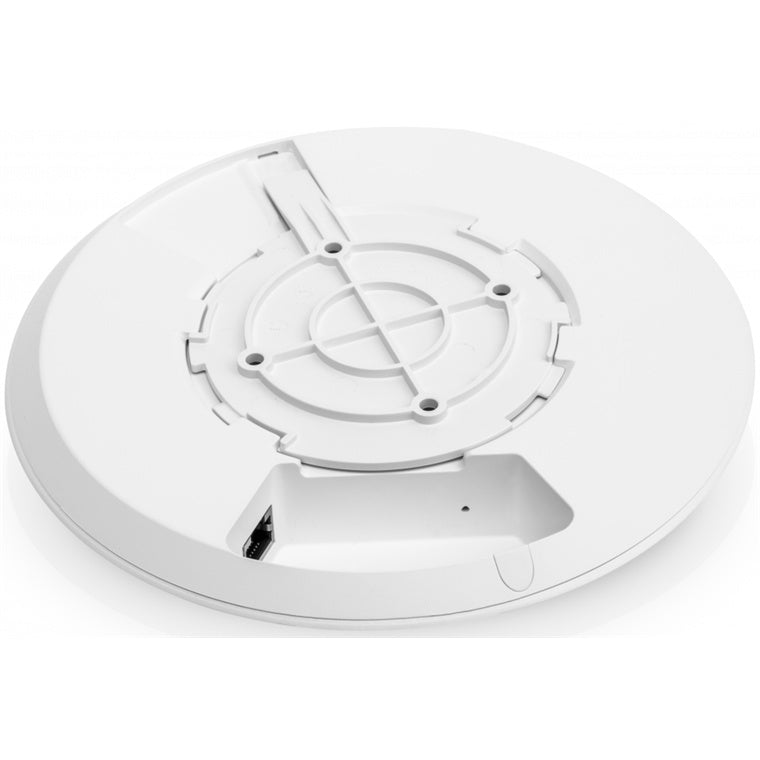

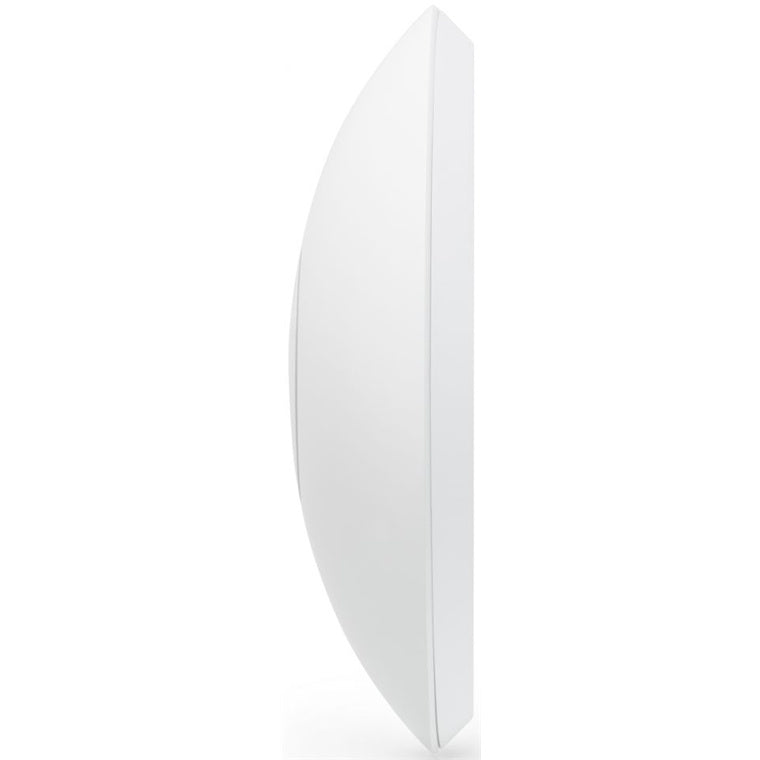

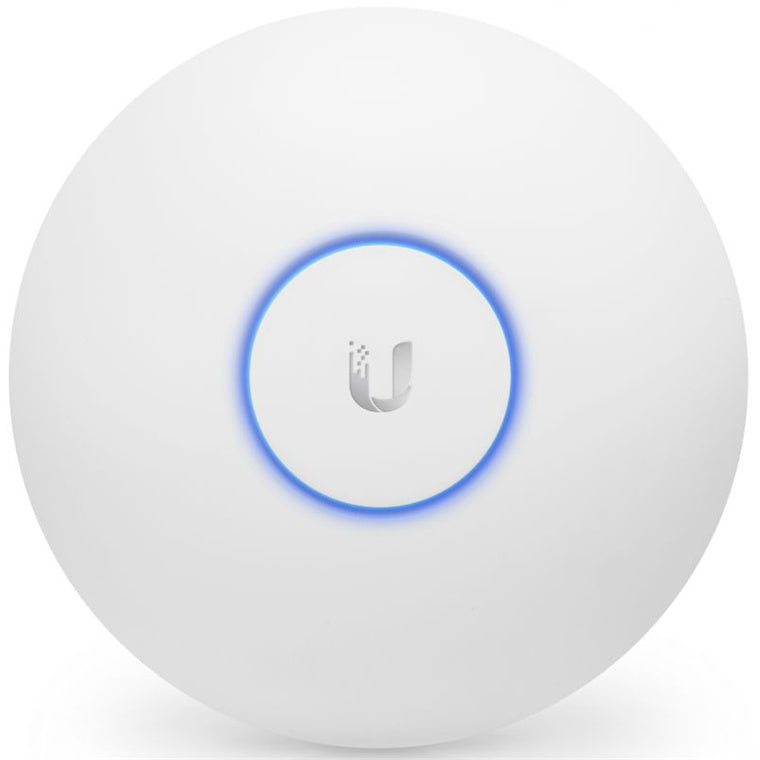

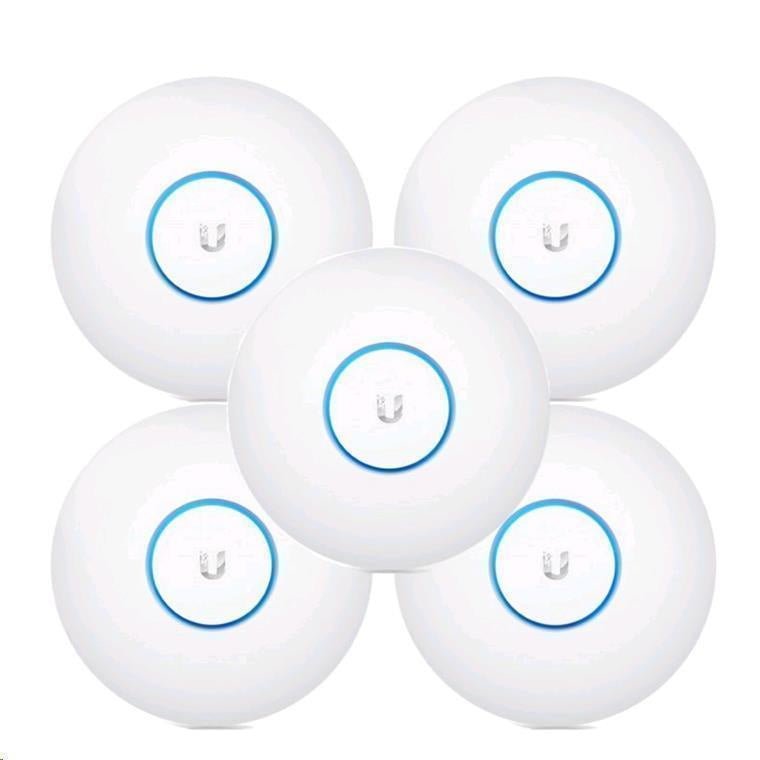

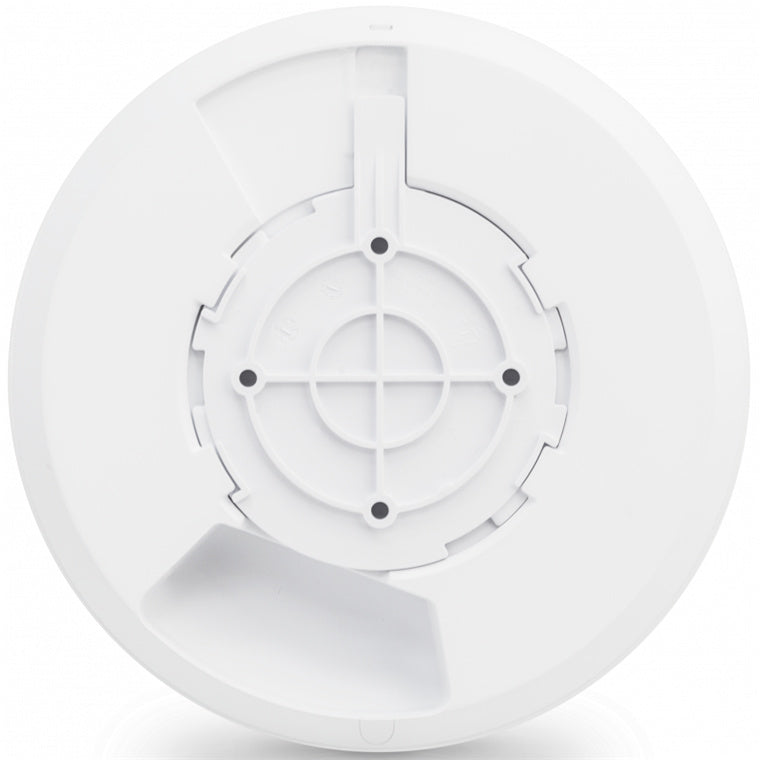

Ubiquiti UniFi UAP-AC-LR-5 Dual-band AC1350 (450+867Mbps) Long Range Indoor Wi-Fi Access Point, 5 Units Pack, (No PoE adapter included)
Term:
100% Traditional Laybuy. Delivery after full payment.
Attention, eager beaver! Need your delivery in a flash?
No worries, mate! We're here to save the day! Just give us an email at contact@layawayau.com and let us know if you would like to pay more or less each week. Rest assured, we'll also provide you with an estimated delivery date when we make these changes. So don't you worry, your delivery dreams are in safe hands!
EAP615-Wall AX1800 Wall Plate WiFi 6 Access Point
- Superior WiFi 6 Speeds - Delivers dual-band speeds of up to 18 Gbps powered by the latest WiFi 6 technology
- Complete In-Room WiFi Coverage - Guarantees strong signals and corner-to-corner WiFi coverage in each room
- Higher Network Efficiency - OFDMA and DL/UL MU-MIMO* deliver data to multiple devices simultaneously with less lag
- Full Gigabit Ports - Connect multiple devices with four gigabit ports and one downlink port offering PoE pass-through
- Centralized Cloud Management - Integrates into Omada SDN for cloud access and remote management
Futureproof Your Network with WiFi 6 Connectivity
Connect more devices at the same time with WiFi 6 speeds of up to 1800 Mbps.
Corner-to-Corner Indoor WiFi Coverage
Guests can enjoy strong private networks that paint their entire space by installing EAP615-Walls in each guest room.
*Uplink MU-MIMO requires further firmware upgrades.
**Product is being developed and the pictures are design sketches for reference only.
HARDWARE FEATURES
Interface
Uplink: 1× 10/100/1000 Mbps Ethernet Port
Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/at PoE
Power Consumption
EU: 10W (802.3at PoE, PoE Out off)
US: 11.5W (802.3at PoE, PoE Out off)
Dimensions 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
Antenna
2 Dual-Band Antennas
2.4 GHz: 2× 3 dBi
5 GHz: 2× 4 dBi
Mounting Wall Plate Mounting
WIRELESS FEATURES Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions
16 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Seamless Roaming
Beamforming
MU-MIMO
Rate Limit
Load Balance
Airtime Fairness
Band Steering
Reboot Schedule
Wireless Schedule
RADIUS Accounting
MAC Authentication
Wireless Statistics
Static IP/Dynamic IP
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission PowerCE:
< 20 dBm (2.4 GHz, EIRP)
< 23 dBm (5 GHz, EIRP)
FCC:
< 21 dBm (2.4 GHz)
< 21 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents
AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall
Installation Guide
Mounting Kits
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment
Operating Temperature: 0-40 C (32-104 F)
Storage Temperature: -40-70 C (-40-158 F)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
