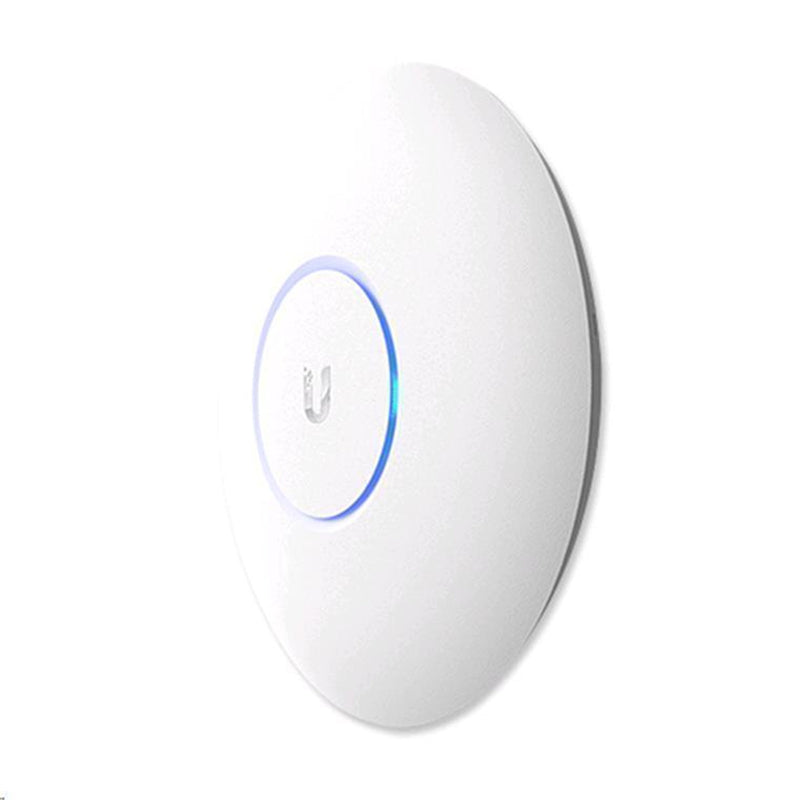

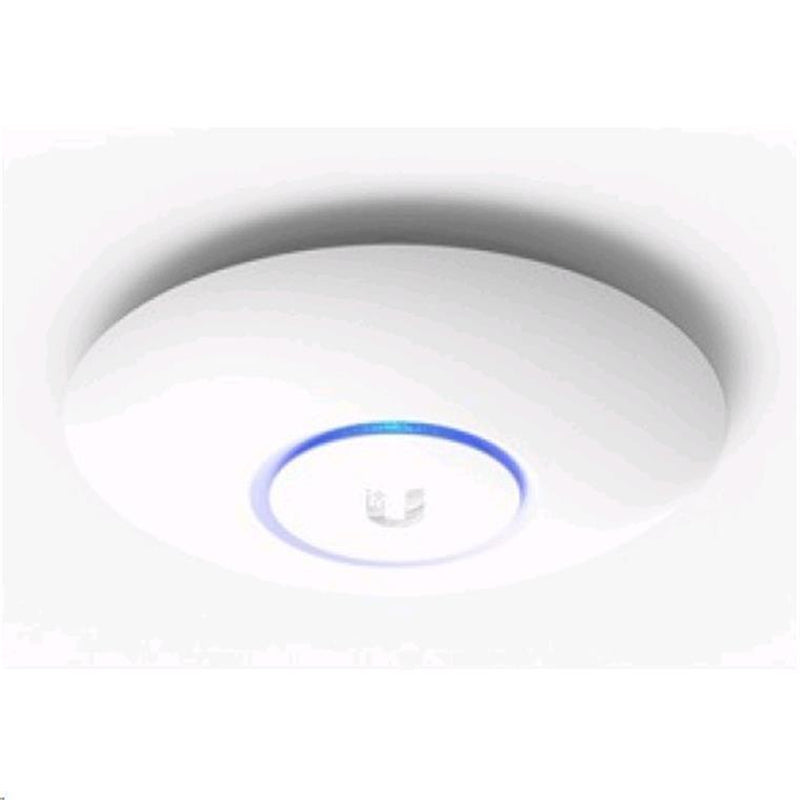

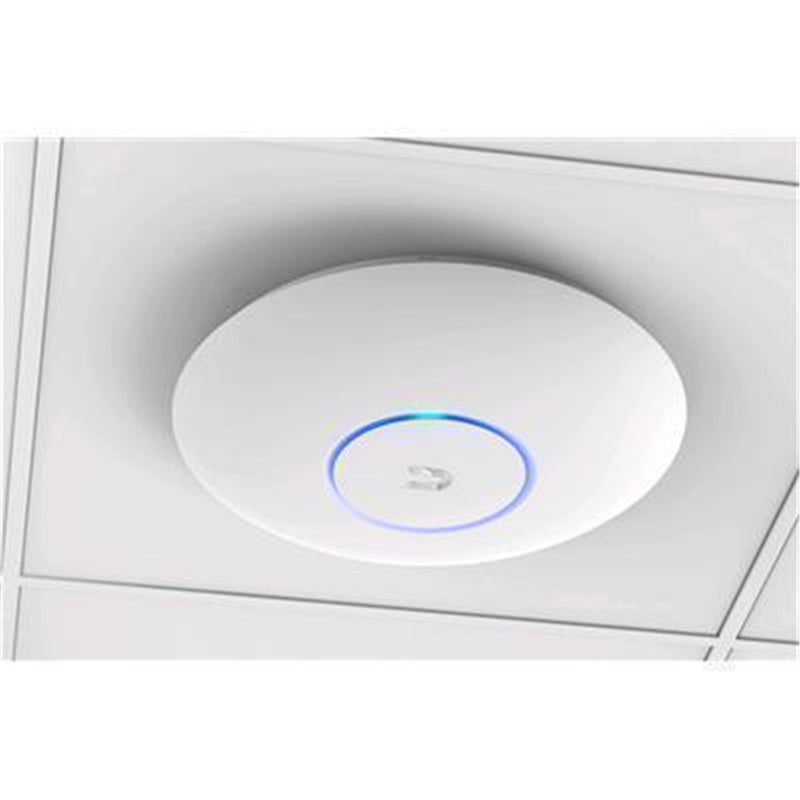

Ubiquiti UniFi UAP-AC-PRO Dual-band AC1750 (450+1300Mbps) Indoor - Outdoor Wi-Fi Access Point, 2 x Gigabit LAN, 48V Passive PoE / 802.3af/802.3at - 9W
Term:
100% Traditional Laybuy. Delivery after full payment.
Attention, eager beaver! Need your delivery in a flash?
No worries, mate! We're here to save the day! Just give us an email at contact@layawayau.com and let us know if you would like to pay more or less each week. Rest assured, we'll also provide you with an estimated delivery date when we make these changes. So don't you worry, your delivery dreams are in safe hands!
Access Point WiFi 6 Mesh
Indoor/outdoor, 4x4 WiFi 6 access point designed for mesh applications.
The Access Point WiFi 6 Mesh (U6 Mesh) is a high-performance, four-stream WiFi 6 access point that provides best-in-class signal meshing to enhance the wireless coverage of home and enterprise networks. The U6 Mesh can reach an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (2x2 MIMO) bands.
This access point also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. The sleek U6 Mesh is discreet enough to stage anywhere in your home or office, but also rugged enough to reliably operate outdoors thanks to its IPX5-rated, waterproof housing.
The U6 Mesh is a plug-and-play device designed to easily extend your wireless signal to ensure full, seamless coverage and high-quality WiFi connectivity. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
- High-efficiency 4x4 WiFi 6 (802.11ax)
- 5 GHz (4x4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate
- 2.4 GHz (2x2 MIMO) band with a 573.5 throughput rate
- Operates at full 4x4 MIMO with 160 MHz bandwidth
- Powered with 802.3af PoE (PoE adapter included)
Adopt the U6-Mesh in Minutes with Your UniFi Network Application and:
- Centrally manage multiple networks from an intuitive interface
- Enjoy real-time device insights and deep configuration options
- Upgrade device firmware remotely
- Manage network users and guests with ease
- Personalize the design, architecture, and privacy of guest hotspots
- Set up devices quickly and manage them on the go with a powerful mobile app
Mechanical
Dimensions 48.5 x 159.5 mm (Ø1.9 x 6.28")
Weight 400 g (0.88 lb)
Enclosure material Plastic, aluminum
Mount materials Plastic
Weatherproofing IPX5
Hardware
Management interfaces
Ethernet
Bluetooth
Networking interface
(1) GbE RJ45 port
Button
Factory reset
LED* White/blue
*Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue color modes.
Power method 802.3af PoE
Power supply
UniFi PoE switch
48V, 0.32A PoE adapter (included)
Supported voltage range 44 to 57VDC
Max. power consumption 11.4W
Max. TX power
2.4 GHz = 22 dBm
5 GHz = 26 dBm
MIMO
2.4 GHz = 2 x 2 (UL MU-MIMO)
5 GHz = 4 x 4 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz = 573.5 Mbps
5 GHz = 4.8 Gbps
Antenna gain
2.4 GHz = 3 dBi
5 GHz = 5 dBi
Mounting Wall, desktop, pole mount(included)
Ceiling mount (optional)
Operating temperature -30 to 60° C (-22 to 140° F)
Operating humidity 5 - 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards
802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS
Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
Zero wait DFS Yes*
*Supported with upcoming firmware versions
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
