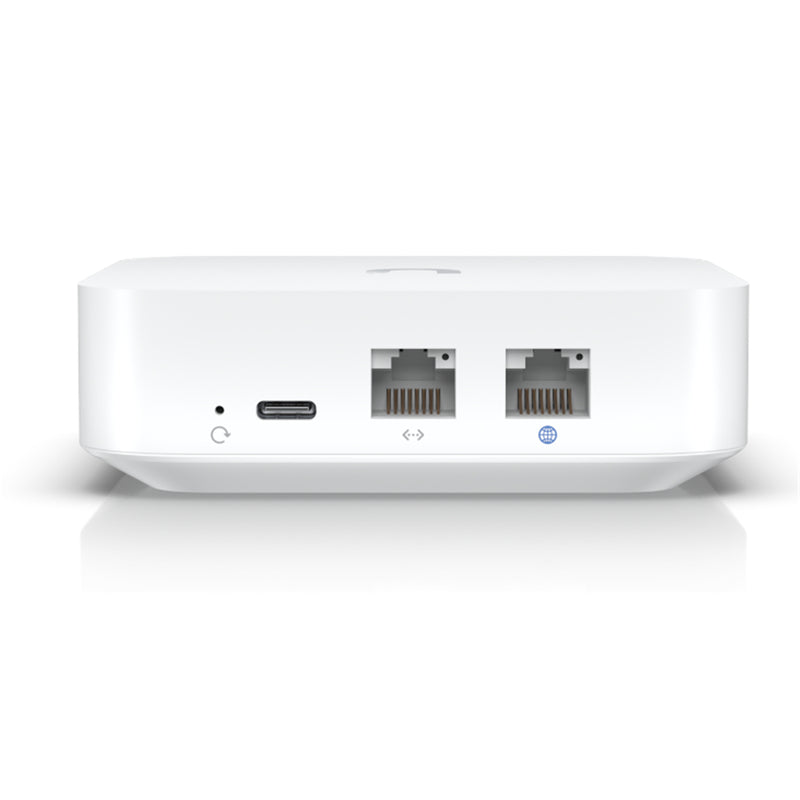

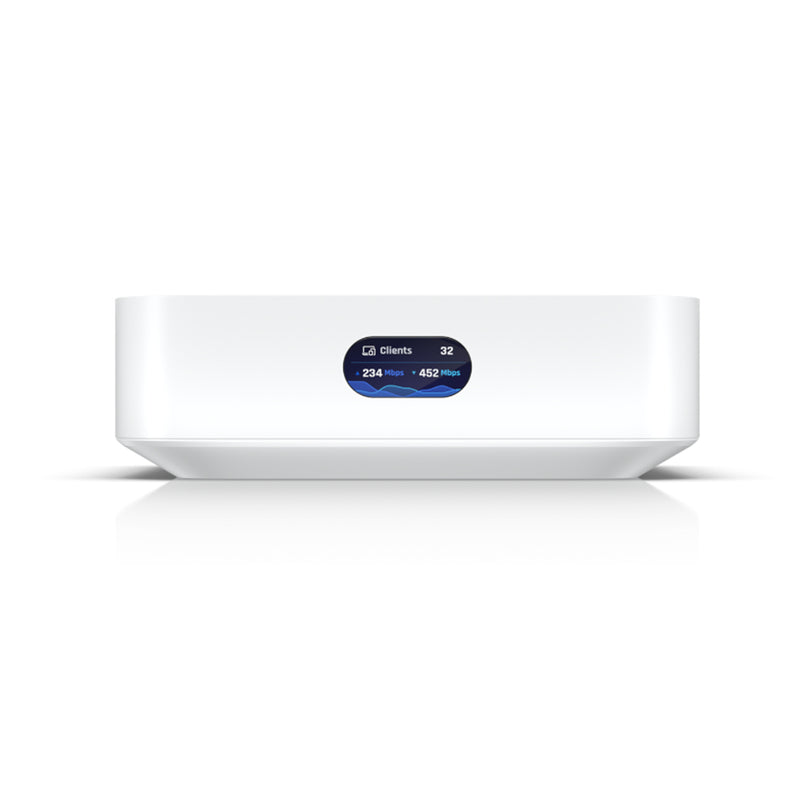

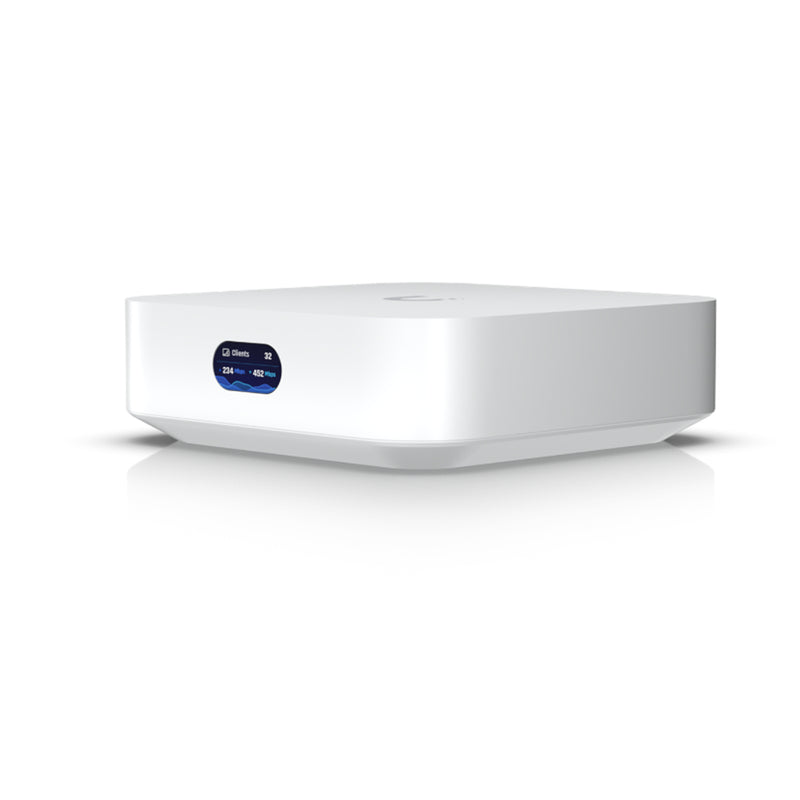

Ubiquiti UniFi Express (UX) Compact UniFi Cloud Gateway
Term:
100% Traditional Laybuy. Delivery after full payment.
Attention, eager beaver! Need your delivery in a flash?
No worries, mate! We're here to save the day! Just give us an email at contact@layawayau.com and let us know if you would like to pay more or less each week. Rest assured, we'll also provide you with an estimated delivery date when we make these changes. So don't you worry, your delivery dreams are in safe hands!
Impressively compact UniFi Cloud Gateway and WiFi 6 access point that runs UniFi Network. Powers an entire network or simply meshes as an access point.
- Built-in WiFi 6 AP
- 140 m² (1,500 ft²) single-unit coverage
- 50+ connected WiFi devices*
- (1) GbE RJ45 WAN port
- (1) GbE RJ45 LAN port to extend network
- 0.96" LCM status display
- Manages up to four additional UniFi Network devices when operated as a gateway
- Managed with UniFi Network 8.0.7 and later
Mechanical
Dimensions 98 x 98 x 30 mm (3.6 x 3.6 x 1.2")
Weight 302 g (10.7 oz)
Enclosure materialPolycarbonate
Hardware
Management interface
Ethernet
Bluetooth
Networking interface
LAN: (1) GbE RJ45 port
WAN: (1) GbE RJ45 port
Power method
USB type C (5V DC/3A)
Max. power consumption 10W
Max. TX power
2.4 GHz
5 GHz
22 dBm
25 dBm
MIMO
2.4 GHz
5 GHz
2 x 2 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO)
Throughput rate 2.4 GHz
5 GHz
573.5 Mbps
2.4 Gbps
Antenna gain
2.4 GHz
5 GHz
4 dBi
5.15 dBi
Antennas
(2) Internal 2.4G/5G WiFi dual-band antenna
(1) Internal 2.4G single-band BT antenna
LCM display 0.96" status display
Button Factory reset
Ambient operating temperature -10 to 45° C (14 to 113° F)
Ambient operating humidity 5 to 95% noncondensing
CertificationsCE, FCC, IC
Gateway Features Performance
Internet quality and outage reporting
Next-generation security
Application-aware firewall rules
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Advanced networking
License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
Software
WiFi standards 802.11a/b/g/n/ac/ax
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID
Console mode: 3 per band
Standard AP: 8 per band
VLAN
802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 50+*
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
Application Requirements
UniFi Network Version 8.0.7 and later
