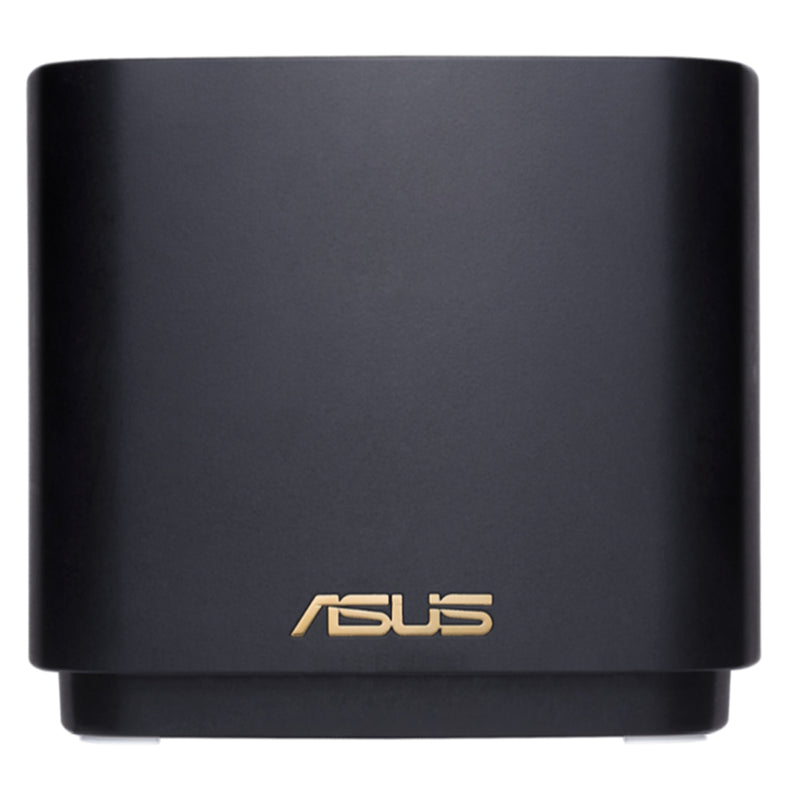

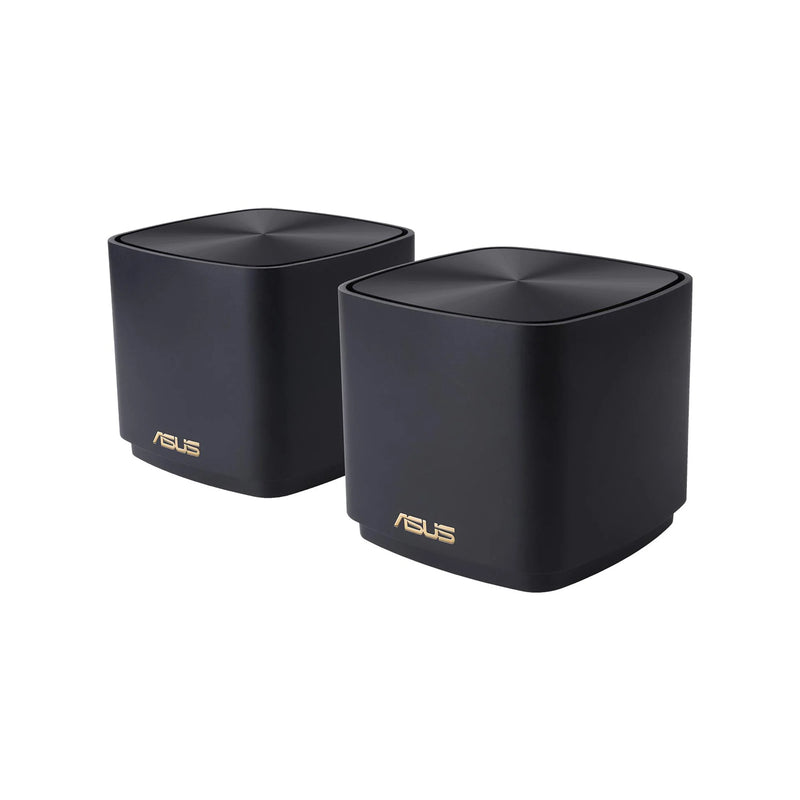

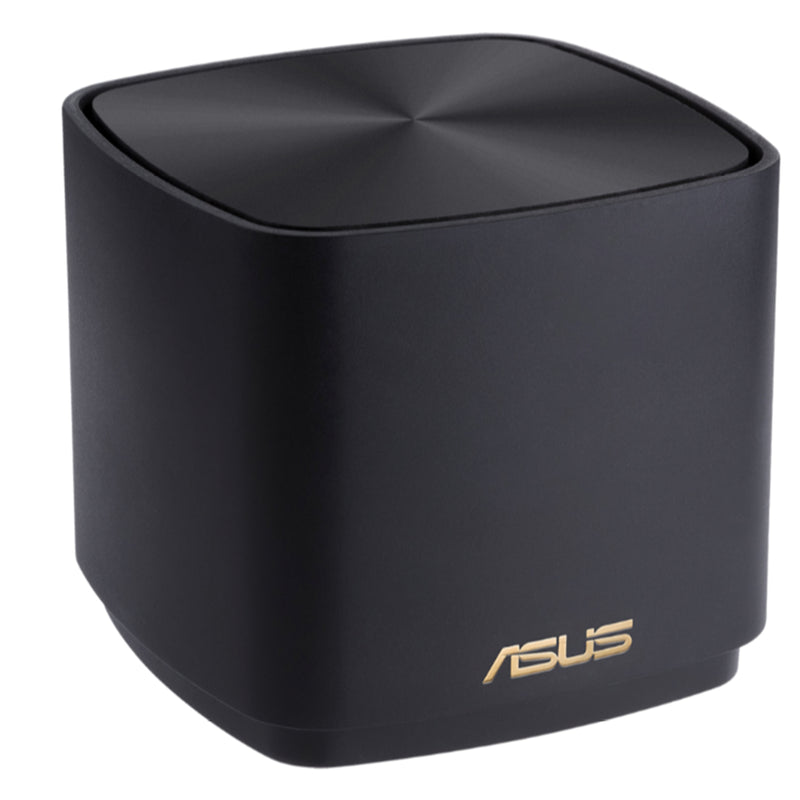

ASUS ZenWifi XD5 (AX3000) Dual-Band WiFi 6 Whole Home Mesh System - Black - 2 Pack
Term:
100% Traditional Laybuy. Delivery after full payment.
Attention, eager beaver! Need your delivery in a flash?
No worries, mate! We're here to save the day! Just give us an email at contact@layawayau.com and let us know if you would like to pay more or less each week. Rest assured, we'll also provide you with an estimated delivery date when we make these changes. So don't you worry, your delivery dreams are in safe hands!
Whole-home Coverage
People enjoy family time together with good WiFi performance provided by ZenWiFi
The ZenWiFi XD5 system consists of three ASUS AX3000 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections - inside or outside your home!
WiFi 6
True 8K Streaming
ZenWiFi XD5 puts your WiFi into top gear! With a total bandwidth of up to of 3000 Mbps, it's up to 3X faster* than WiFi 5 routers **.
Explore ultimate WiFi 6 performance
The ASUS ZenWiFi XD5 supports high-speed 160MHz bandwidth*. It dramatically increases network capacity while reducing congestion, delivering higher performance for every WiFi 6 device.
Flexible Network Naming
Uniquely, ZenWiFi lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!
Make the Internet a
Safer Place for Everyone
AiProtection Classic with Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app.
Smart Looks for Smart Homes
ZenWiFi XD5 works perfectly with smart-home services - including Alexa skills - and is available in charcoal or white to suit your dcor.
Space-saving and Great Design
Comes with mounting holes and a screw pack. Hang it on the wall or place it anywhere, the choice is yours!
AiMesh Technology
Easy setup. Flexible management.
Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.
Model Name
XD5 (B-2-PK)
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps
AX technology Yes
Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
Antenna Internal dual-band antenna x 2
Transmit/Receive
2.4GHz 2x2
5GHz 2x2
Processor 1.7 GHz quad-core processor
Memory
128 MB Flash
512 MB RAM
Boosts speed
MIMO technology
Operating Frequency 2.4 G Hz / 5 GHz

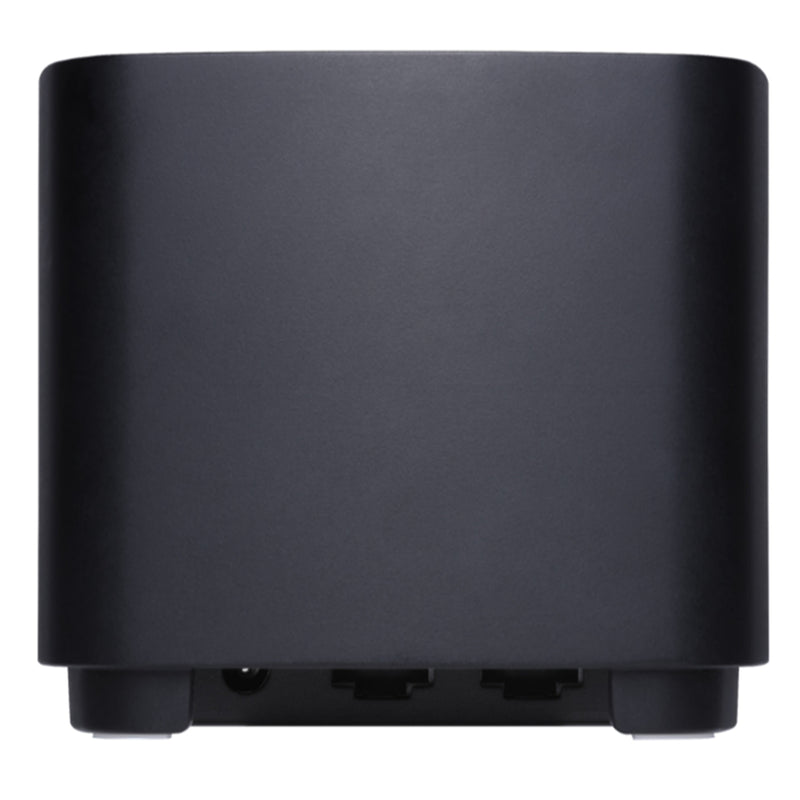

Ports RJ45 for Gigabits BaseT for WAN/LAN x 1, RJ45 for Gigabits BaseT for LAN x1
Button WPS Button, Reset Button
LED Indicator Power x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1.5 A current
Package content
ZenWiFi XD5
RJ45 Ethernet cable
Power adapter
Quick start guide
Warranty Card
Screw Pack
Product Weight (g) 307 g
AiMesh
Primary AiMesh router
AiMesh node
Router APP\ ASUS Router APP
Alexa Support Alexa skill
AiProtection
AiProtection Classic
Malicious site blocking
Infected Device Prevention and Blocking
Parental Control
Parental Control
Parental Control Customized Internet schedule
Traffic Control
Bandwidth Monitor
Bandwidth limiter
Traditional QoS
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Wireless
IPv6
Wi-Fi Encryption : WPA3-Personal, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS support
UTF-8 SSID
Guest Network
Guest Network Connection time limit
WPS
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Android tethering
Port forwarding
Port triggering
DMZ
DDNS
NAT Passthrough : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Let's Encrypt
LAN
DHCP Server
IGMP snooping
IPTV
Manually assign IP address
VPN
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
Administration
Operating system : ASUSWRT
Free OS upgrade
Firewall
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL)
SSH
Configuration backup and restore
Diagnosis tools
Feedback system
System log
