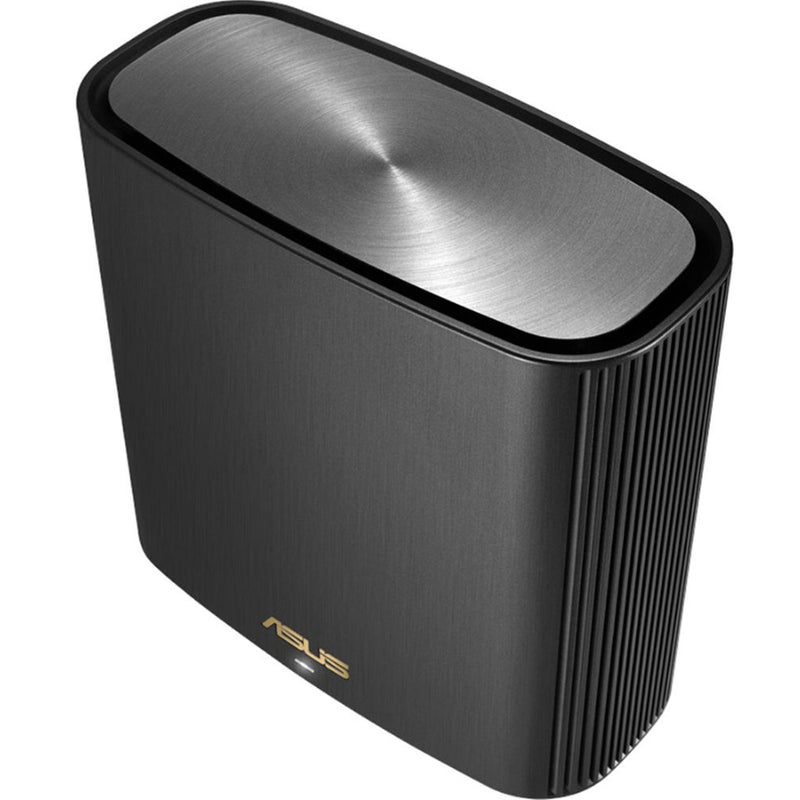

ASUS ZenWifi XT8 V2 (AX6600) Tri-Band Wi-Fi 6 Whole Home Mesh System - Black - 2 Pack

Term:

$25 per week, a total of $925. Delivery to your door after 37 successful payments!
Apply now
100% Traditional Laybuy. Delivery after full payment.
Attention, eager beaver! Need your delivery in a flash?
No worries, mate! We're here to save the day! Just give us an email at contact@layawayau.com and let us know if you would like to pay more or less each week. Rest assured, we'll also provide you with an estimated delivery date when we make these changes. So don't you worry, your delivery dreams are in safe hands!



AX6600 Whole-Home Tri-band Mesh WiFi 6 System - Coverage up to 510 Sq. m. or 6+ rooms, 6.6Gbps WiFi, 3 SSIDs, life-time free network security, PS5 compatible, 2.5G port,

- Banish WiFi Dead Zone-Tri-band mesh WiFi system with unique antenna placement delivers strong WiFi to every corner of your home, providing total wireless speed of 6600Mbps.

- Next-Gen Wi-Fi 6 Technology- With OFDMA and MU-MIMO, ZenWiFi AX enables more efficient, stable, and faster transmission even when multiple devices are transmitting data at the same time.

- Hassle Free Control - 3 steps setup and easy management with ASUS Router App

- Always Up-to-date Protection- The lifetime free network security powered by Trend Microž¢ makes sure your privacy on connected devices is protected.

- AiMesh Supported- Mix and match ZenWiFi with AiMesh-compatible routers to form powerful and flexible whole-home WiFi system

Whole-home Coverage High speed tri-band. Stable WiFi.

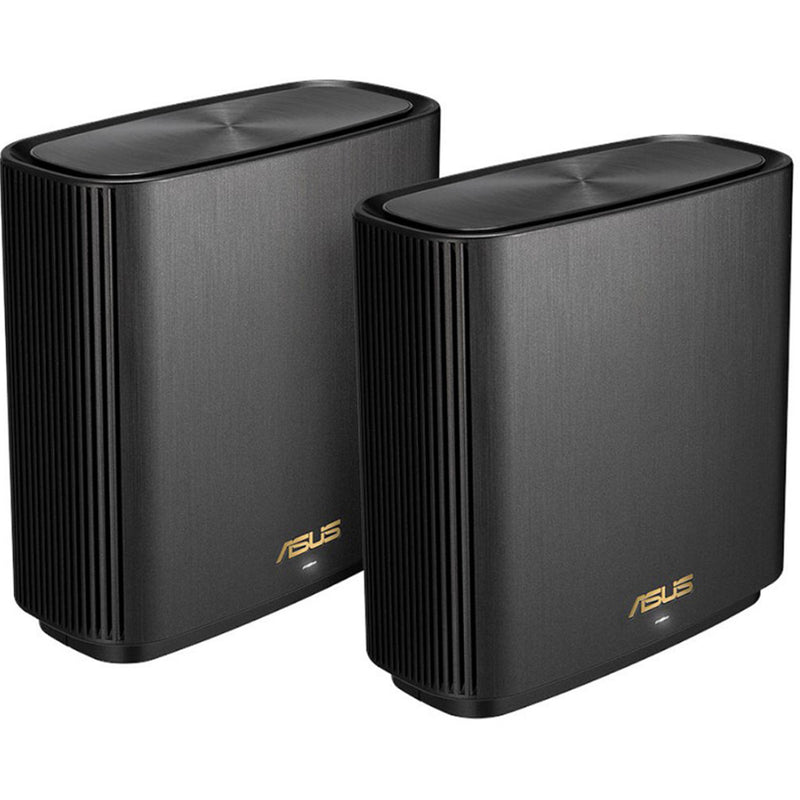

The ZenWiFi AX system consists of a pair of ASUS AX6600 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections - inside or outside your home!

WiFi 6 True 8K Streaming

ZenWiFi AX puts your WiFi into top gear! With a total bandwidth of up to of 6600 Mbps, it's up to 2.2X faster* than tri-band AC3000 (WiFi 5) routers **.

Flexible Network Naming

Uniquely, ZenWiFi AX lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!

Make the Internet a Safer Place for Everyone

AiProtection Pro with Advanced Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app.

Smart Looks for Smart Homes

ZenWiFi AX works perfectly with smart-home services - including Alexa skills and IFTTT - and is available in black or white to suit your d?cor.

AiMesh Technology Easy setup. Flexible management.

Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.

Performance Through Engineering

ZenWiFi AX features a quad-core CPU to deliver the full performance potential of WiFi 6. Its vertical housing holds a specially designed antenna and circuit board that optimizes WiFi signal strength and provides better airflow, improving thermal performance for reliable operation.

- Special designed vents for increased airflow
- Double heatsink for maximized heat dissipation
- 45° antennas ensure strong WiFi in multi-story homes
- Vertical housing with space between antennas and circuit board for minimal WiFi signal interference
- Quad-core CPU (with WiFi) plus additional WiFi chipset
- 2.5G WAN/LAN port

Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

Product Segment

AX6600 ultimate AX performance:574+1201+4804Mbps

WiFi Data Rate

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz-1) : up to 1201 Mbps
WiFi 6 (802.11ax) (5GHz-2) : up to 4804 Mbps

Antenna

Internal antenna x 6

Transmit / Receive

2.4GHz 2x2
5GHz-1 2x2
5GHz-2 4x4

Memory

256 MB Flash
512 MB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

Operating Frequency

2.4G Hz, 5 GHz-1, 5 GHz-2

Operating Mode

Wireless router mode
Access point mode

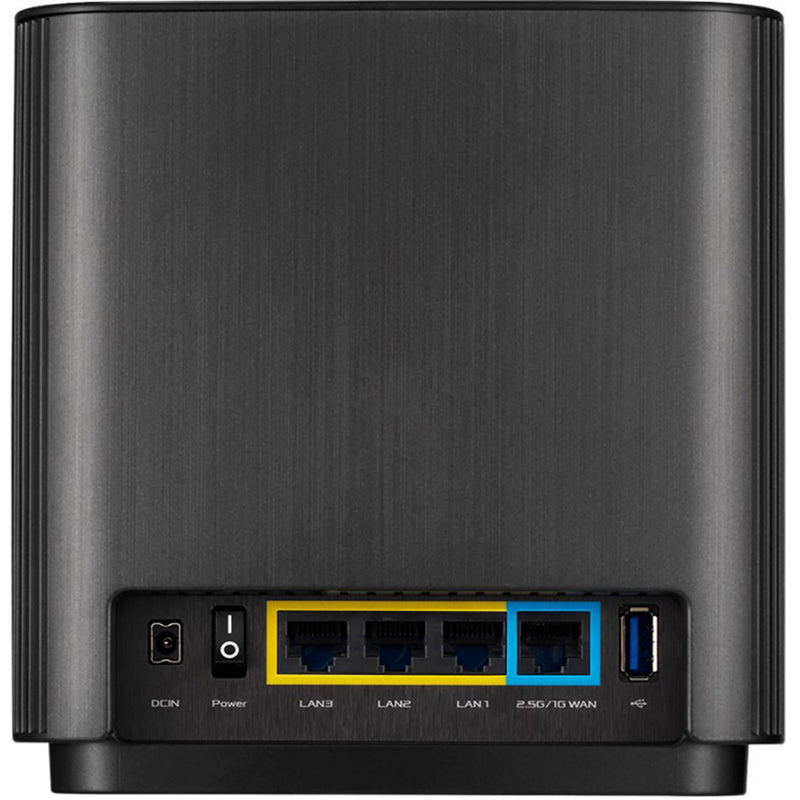

I/O Ports

RJ45 for 2.5G BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
USB 3.1 Gen 1 x 1

Buttons

WPS Button, Reset Button, Power Switch

LED Indicator Power x 1

Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current
DC Output : 12 V with max. 3 A current

Package Content

ZenWiFi AX
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card

Product Weight (g) 716 g

Product Dimensions 160 x 75 x 161.5 mm

AiMesh

AiMesh
- Primary AiMesh Router
- AiMesh Node

Parental Control

"Allow you to block access to unwanted websites and apps."
Parental Control - Safe Browsing

Router APP

APP: ASUS Router APP

Guest Network

Support Guest Network
- Maximum Guest Network Rule : Max 9 rules

Security

WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
WPS
Let's Encrypt
DNS-over-TLS
Security Scan
Firewall
- Maximum Firewall Keyword Filter : Max 64 rules
- Maximum Firewall Network Service Filter : Max 32 rules
- Maximum Firewall URL Filter : Max 64 rules

AiProtection

AiProtection Pro
- Malicious Site Blocking
- Two-Way IPS
- Infected Device Prevention and Blocking

VPN

VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion

Traffic Control

Adaptive QoS
Traffic Monitor
Traffic Analyzer

WAN

Dual WAN
3G / 4G LTE Dongle
DMZ
DDNS

LAN

IGMP Snooping
IPTV
Wake on LAN (WOL)

Wireless

UTF-8 SSID
WiFi MAC Address Filter
- Maximum MAC Filters : Max 64 rules
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming

USB application

File System : FS_Tuxera_HFS+, FS_Tuxera_NTFS, FS_Tuxera_vFAT, FS_ext2, FS_ext3, FS_ext4
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server

Administration

Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
