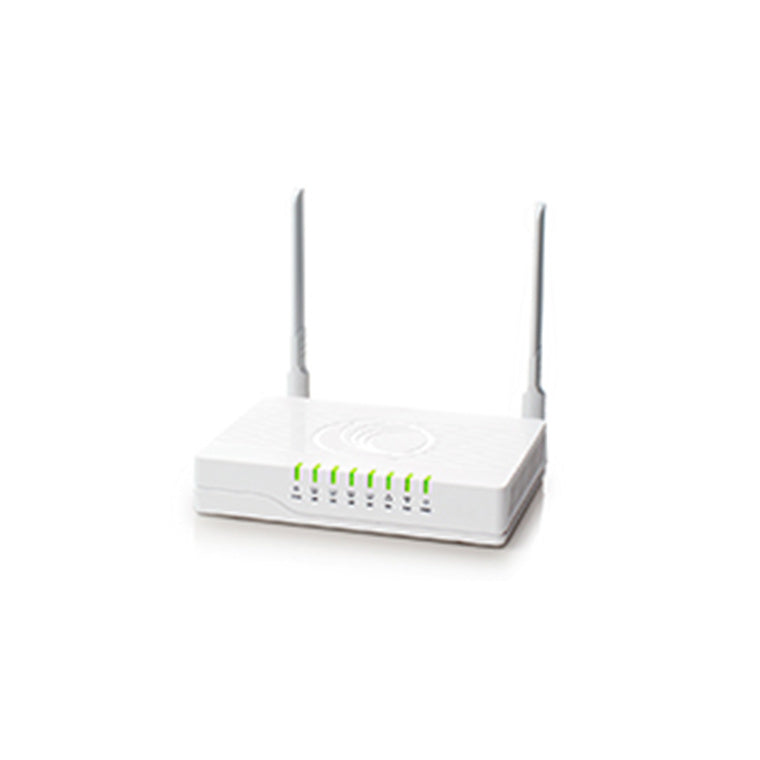

Cambium Networks cnPilot R190W WiFi 4 Cloud Managed Home Router
Term:
100% Traditional Laybuy. Delivery after full payment.
Attention, eager beaver! Need your delivery in a flash?
No worries, mate! We're here to save the day! Just give us an email at contact@layawayau.com and let us know if you would like to pay more or less each week. Rest assured, we'll also provide you with an estimated delivery date when we make these changes. So don't you worry, your delivery dreams are in safe hands!
EXTEND BROADBAND WIRELESS FOR RESIDENTIAL WLAN
The r195 series provides robust Wi-Fi performance to match and exceed the expectations of the modern family anywhere on the globe. As social media, streaming media, work-from-home and school-from-home increase, the need for high-performance Wi-Fi is here today. Don't be trapped by old 802.11n technology.
With five Gigabit Ethernet ports and dual WLAN radios, the r195 series easily connects all the devices in a home, providing full home coverage from a single Wi-Fi router. For larger homes, extend coverage with WDS MESH to link two Wi-Fi routers together; for example, one r195P can extend Wi-Fi coverage to a remote r195W.
r195P delivers two ATA ports for VoIP, and Cambium 30 V power out for a Cambium PMP or ePMP fixed wireless subscriber module.
PART OF THE CAMBIUM NETWORKS WIRELESS FABRIC
Service providers that leverage the power of cnMaestro to manage a broadband network will be able to integrate the r195 into the wireless fabric. Through cnMaestro web-first interface the r195 features zero-touch configuration, stateful alarms & dashboard KPIs, and device health & inventory reports.
Manage with cnMaestrož¢
cnMaestro is a simple, unified, end-to-end management system for Cambium Networks' wired and wireless portfolio: Enterprise Wi-Fi, Switching, Fixed Wireless Broadband and Industrial IoT products. With zero-touch provisioning, service providers can create, provision and manage an entire network from a single dashboard. cnMaestro is flexible, allowing the choice for public cloud, private cloud or on-premises deployment. Enterprise, Managed Service Provider (MSP) and Access & Backhaul can use tailored views on the platform.
Access Point Specifications
FCC Ch 1-11, 36-48, 149-165
ISED Ch 1-11, 36-48, 149-165
ETSI Ch 1-13, 32-48
ROW
(Individual country limits may apply) Ch 1-14, 36-48, 149-165
Max PHY Rate
2.4 GHz: 300 Mbps
5 GHz: 867 Mbps
Ports
Five x IEEE 100/100/1000 Mbps Ethernet
Auto Sensin
Voice No
Power 12 VDC, 1 A
Antenna
2.4 GHz: 5 dBi
5 GHz: 5 dBi
Omni
Max EIRP
2.4 GHz: 27 dBm
5 GHz: 20 dBm
Dimensions
190 mm x 135 mm x 40 mm
(7.48 in x 5.31 in x 1.57 in)
Weight 900 g (1.98 lbs)
LEDs Power, WLAN, Port status LEDs
Ambient Operating Temperature 0ºC to 40ºC (32ºF to 104ºF)
Storage Temperature -20ºC to 70ºC (-4ºF to 158ºF)
Humidity 95% RH non-condensing
Certifications (Compliance)
FCC, IC, CE, EN 60601-1-2, EN 60950-1
WEEE & RoHS
WLAN and Network Specifications WLAN
64 clients, 8 SSIDs
Management Features
Firmware Upgrade, Web Management Interface, Local and Remote Syslog (RFC3164), Auto Provisioning, Time Synchronization, Multi User Level
Management Protocols
TR-069, TR-098, TR-0104, TR-0106, TR-0143
cnMaestro Cloud or on-premises VM, SNTP, SNMPv2, Telnet
Authentication SSID Security
WEP, WPA-PSK (TKIP), WPA2-PSK (TKIP), WPA2-PSK (AES), Open, Mixed mode
Subscriber QoS WMM, DSCP, 802.1p
Network
NAT router or Bridge mode, DDNS, MAC address cloning, wired speed NAT Router, DHCP Server and Client, IP conflict detection, Port forwarding
Security
DMZ, Rate Limiting, Passthrough, Firewall (SYN Flooding, IP Spoofing, Smurf Attack, Ping of Death, DoS)
Standards Wi-Fi Protocols
VHT MCS rates, 16/64/256-QAM, 20/40/80 MHz
AMSDU, AMPDU, RIFS, STBC, LDPC, MIMO Power Save, MRC, BPSK, QPSK, CCK, DSSS, OFDM,
IEEE 802.11 a/ac/b/d/e/g/h/i/n
Other Network Protocols
DHCP/PPPoE, HTTP Server for Web Management, TFTP/HTTP for Auto Provisioning, DHCP Option Codes for SIP
(RFC3361), DNS/DNS SRV (RFC1706 and RFC 2782), IEEE802.1Q VLAN, 802.1P, DSCP, IGMPv2 snooping, PPTP/L2TP VPN
r195P Telephony Specifications
IP Signaling
SIP V2 (RFC3261/3262/3263/3264)
Voice CODEC
G.711 (A-law, µ-law), G.722,G.723, G.729
FAX over IP
Real Time FAX over IP via T.38
T.30 Fax with G.711
Voice Features
Adaptive jitter buffer management
Voice activity detection
Comfort noise generation
Echo cancellation
Interactive voice response
Call Features
3-way conference
Call hold, call forwarding, call transfer, call waiting
Speed dial, Hotline, Dial plan
Caller ID, Black list, Call log
