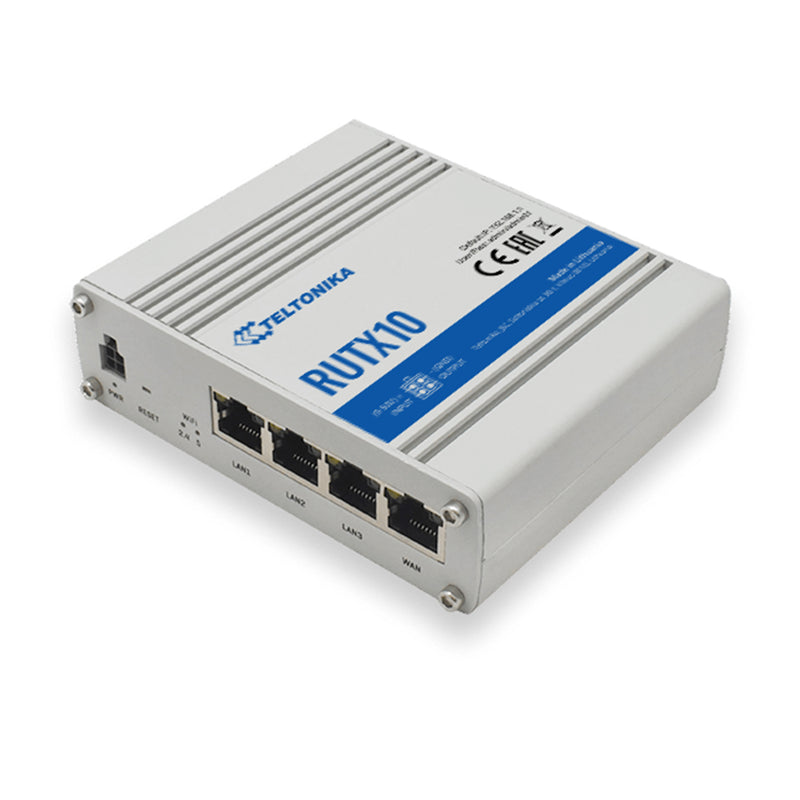

Teltonika RUTX10 Industrial Router with BLE
Term:
100% Traditional Laybuy. Delivery after full payment.
Attention, eager beaver! Need your delivery in a flash?
No worries, mate! We're here to save the day! Just give us an email at contact@layawayau.com and let us know if you would like to pay more or less each week. Rest assured, we'll also provide you with an estimated delivery date when we make these changes. So don't you worry, your delivery dreams are in safe hands!
RUTX10
Next-Generation Teltonika Enterprise router, equipped with the Dual Band WiFi 5 802.11ac and a Bluetooth LE module. Perfect for Small office or Public sector applications. High speed WiFi connectivity allows companies to transition into all-wireless office settings.
We created RUTX10 Enterprise module specially for small to mid-size office application. It comes with Dual Band WiFi 5 802.11ac, that is extremely important for high data transmission and lag-free browsing experience. RUTX10 has all the latest security features and ability to monitor and control your office data usage remotely.
Highly customizable RutOS is at the soul of RUTX10, but it's actually synergy between hardware and software that makes this device perfect performer in enterprise solutions. Quad Core ARM Cortex A7 717 MHz CPU is more than enough for VPN functionality and if what we offer is not enough there is 256 MBytes Flash memory to install additional protocols.
ETHERNET
WAN 1x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 3x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
WIRELESS
Wireless mode 802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
WiFi security WPA2-Enterprise-PEAP, WPA2-PSK, WPA-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
ESSID ESSID stealth mode
Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
BLUETOOTH
Bluetooth LE Bluetooth low energy (LE) for short range communication
NETWORK Routing
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL)
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forwards, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
QoS Traffic priority queuing by source/destination (planned), service (planned), protocol or port (planned), WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup
VRRP, Wired and WiFi WAN options, each of which can be used as an automatic Failover
SSHFS (optional) Possibility to mount remote file system via SSH protocol (not available in standard FW)
SECURITY Authetication
Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port based and tag based VLAN separation
WEB filter Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN OpenVPN
Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server instances can run simultaneously
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code
DMVPN Method of building scalable IPsec VPNs
SSTP SSTP client instance support
MODBUS Modbus TCP slave
ID range 1-255 Modbus TCP master
Supported functions 01, 02, 03, 04, 05, 06, 15, 16 Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit float (Big endian, Big endian with byte-swapped, Little endian, Little endian with byte-swapped)
MONITORING & MANAGEMENT
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
SNMP SNMP (v1, v2, v3), SNMP trap
MQTT MQTT Broker, MQTT publisher
JSON-RPC (planned) Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)
SYSTEM CHARACTERISTICS CPU
Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH memory 256 MB SPI Flash
FIRMWARE / CONFIGURATION WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW/configuration from server
RMS Update FW/configuration for multiple devices at once
Keep settings
Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided
USB
Data rate USB 2.0
Applications Samba share, custom scripts (planned)
devices Possibility to connect external HDD, flash drive, additional modem, printer (planned)
Storage formats FAT, FAT32, NTFS
INPUT/OUTPUT
Input 1x Digital Input
Output 1x Digital Output
Events SMS, Email, RMS
POWER
Connector 4 pin industrial DC power socket
Input voltage range 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at standards
Power consumption 11 W Max
PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS)
Ethernet 4x RJ45 ports, 10/100/1000 Mbps
I/Os 1 Digital Input, 1 Digital Output on 4 pin power connector
Status LEDs
8x LAN status LEDs, 1x Power LED, 2.4G and 5G WiFi LEDs
Power 4 pin DC connector
Antennas 2x RP-SMA for WiFi, 1x RP-SMA for Bluetooth
USB USB A port for external devices
Reset Factory reset button
PHYSICAL SPECIFICATION
Casing material Full aluminium housing
Dimensions 115 mm x 95 mm x 32 mm (H x W x D)
Weight 355 g
Mounting options DIN rail (can be mounted on two sides), flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 C to 75 C
Operating humidity 10 % to 90 % non-condensing
Ingress Protection Rating IP30
