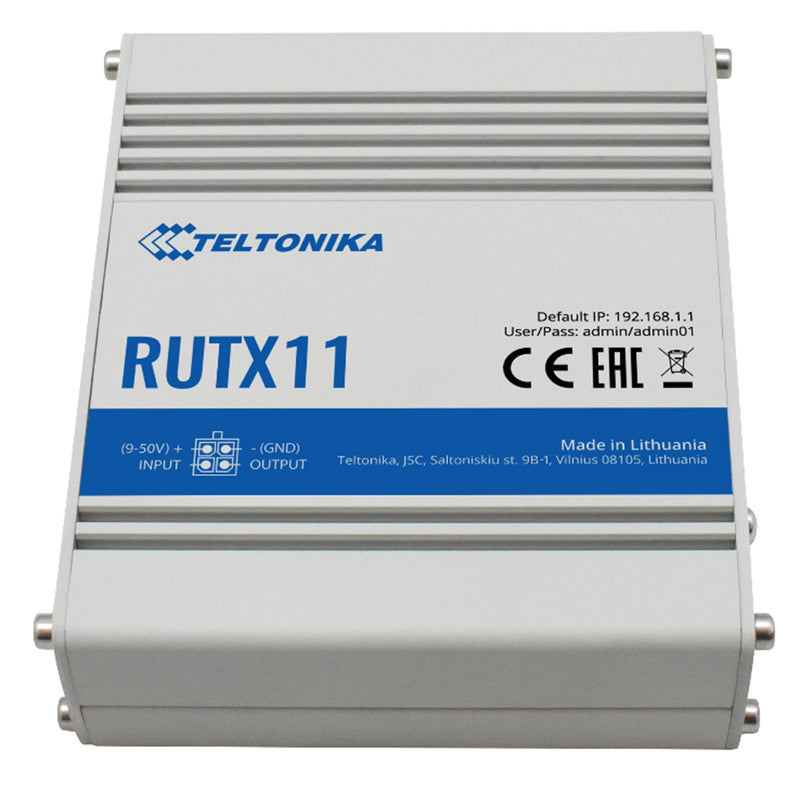

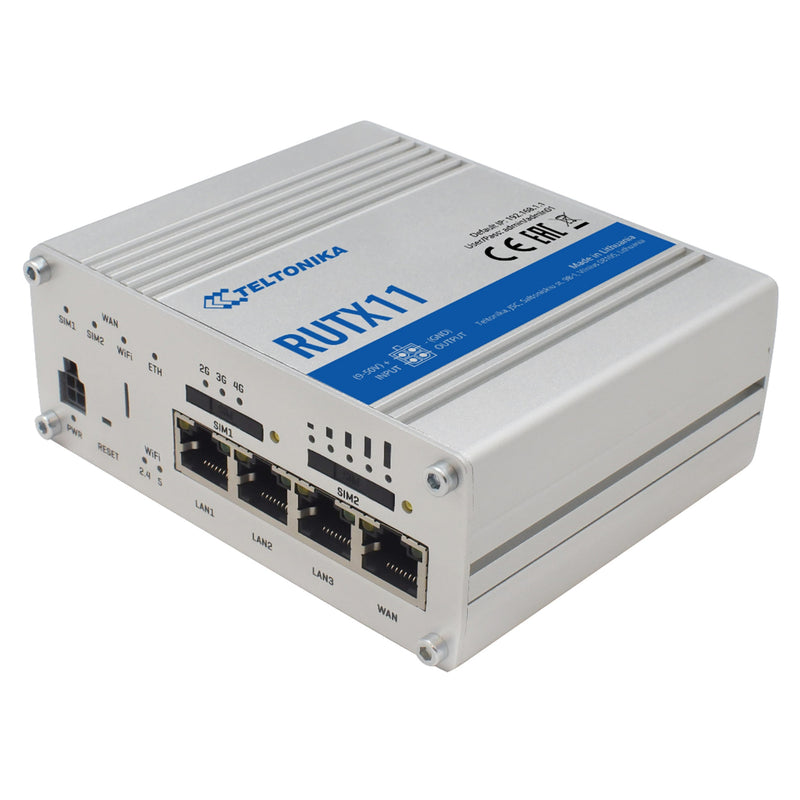

Teltonika RUTX11 Industrial Cellular Router with WiFi

MOBILE

Mobile module 4G (LTE) - Cat 6 up to 300 Mbps, 3G - Up to 42 Mbps

SIM switch (planed) 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection

Status Signal strength, SINR, RSRP, RSRQ, Bytes sent/received

SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET (planed), EMAIL to SMS (planed), SMS to Email (planed), SMS to HTTP (planed), SMS to SMS (planed), scheduled SMS (planed), SMS autoreply (planed), SMPP (planed)

Black/White list Operator black/white list

Multiple PDN (planed) Possibility to use different PDNs for multiple network access and services

Band management Band lock, Used band status display

WIRELESS  Wireless mode 802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)

WiFi security WPA2-Enterprise-PEAP, WPA2-PSK, WPA-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation

ESSID ESSID stealth mode

ETHERNET WAN 1 x WAN port (can be configured to LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

LAN 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

BLUETOOTH Bluetooth LE Bluetooth low energy (LE) for short range communication

NETWORK Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)

NetSnapper (optional) Mobile connection management, data compression VPN client (not available in standard FW)

Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMNP, MQTT

VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection

Firewall Port forwards, traffic rules, custom rules

DHCP Static and dynamic IP allocation, DHCP Relay, Relayd

QoS Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNS Supported >25 service providers, others can be configured manually

Network backup VRRP (planed), Mobile and Wired WAN options, each of which can be used as backup, using automatic Failover

Load balancing Balance your Internet traffic over multiple WAN connections

SSHFS (optional) Possibility to mount remote file system via SSH protocol (not available in standard FW)

SECURITY

Authetication Pre-shared key, digital certificates, X.509 certificates

Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLAN Port based and tag based VLAN separation

Mobile quota control Set up custom data limits for both SIM cards

WEB filter Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only

Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPNOpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods

OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC

IPsec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)

GRE GRE tunnel

PPTP, L2TP

Client/Server services can run simultaneously

Stunnel (planed)

Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code

DMVPN Method of building scalable IPsec VPNs

MONITORING & MANAGEMENT

WEB UI

HTTP, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log

FOTA Firmware update from server, automatic notification

SSH SSH (v1, v2)

SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET

TR-069 (planed) OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

SNMP SNMP (v1, v2, v3), SNMP trap

JSON-RPC

Management API over HTTP/HTTPS

Modbus (planed)

Modbus TCP status/control, master and slave modes

MQTT MQTT Broker, MQTT publisher

RMS Teltonika Remote Management System (RMS)

SYSTEM CHARACTERISTICS CPU

Quad-core ARM Cortex A7, 717 MHz

RAM 256 MB, DDR3

FLASH memory 256 MB SPI Flash

FIRMWARE / CONFIGURATION WEB UI

Update FW from file, check FW on server, configuration profiles, configuration backup

FOTA

Update FW/configuration from server

RMS

Update FW/configuration for multiple devices

Keep settings

Update FW without losing current configuration

FIRMWARE CUSTOMIZATION

Operating system RutOS (OpenWrt based Linux OS)

Supported languages Busybox shell, Lua, C, C++

Development tools

SDK package with build environment provided (planed)

LOCATION TRACKING

GNSS GPS, GLONASS, BeiDou, Galileo and QZSS

Coordinates

GNSS coordinates via WebUI, SMS, TAVL, RMS

NME ANMEA 0183

Server software Supported server software: TAVL, RMS

Mobile Network Geolocation

Get approximate device location on RMS based on mobile cell tower position (without using GPS)

Geofencing Configurable multiple geofence zones

USB

Data rate USB 2.0

Applications Samba share (planed), custom scripts (planed)

External devices Possibility to connect external HDD, flash drive, additional modem, printer

Storage formats FAT, FAT32, NTFS

INPUT/OUTPUT

Input 1 x Digital Input

Output 1 x Digital Output

Events SMS, Email, RMS

POWER

Connector 4 pin industrial DC power socket

Input voltage range 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection

PoE (passive) Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af and 802.3at standards

Power consumption 11 W Max

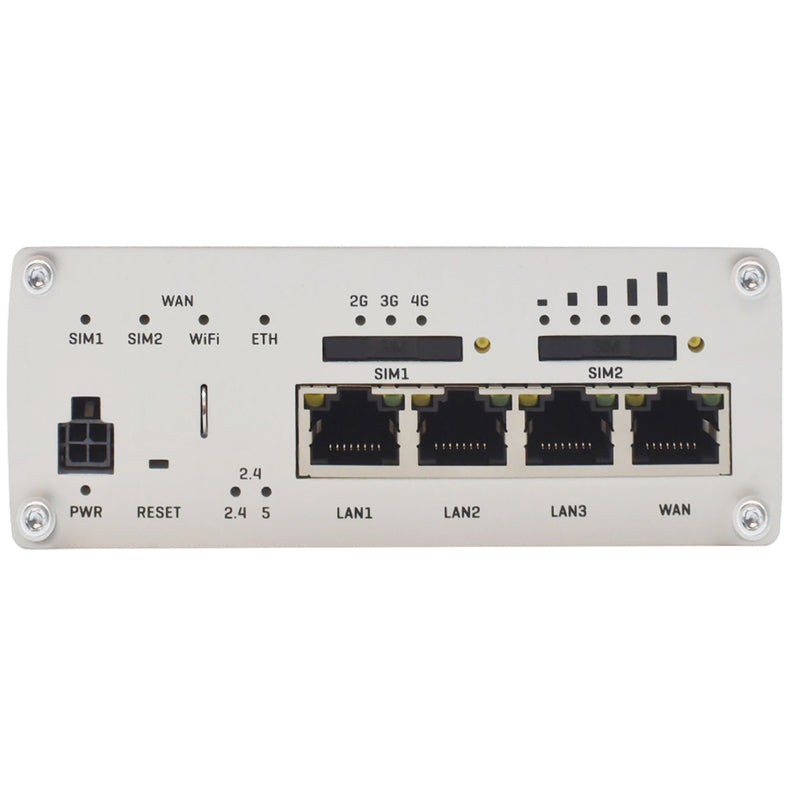

PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)

Ethernet 4 x RJ45 ports, 10/100/1000 Mbps

I/Os 1 Digital Input, 1 Digital Output on 4 pin power connector

Status LEDs 3 x connection status LEDs, 5 x connection strength LEDs, 8 x LAN status LEDs, 3 x WAN status LEDs, 1 x Power LED

SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders

Power 4 pin DC connector

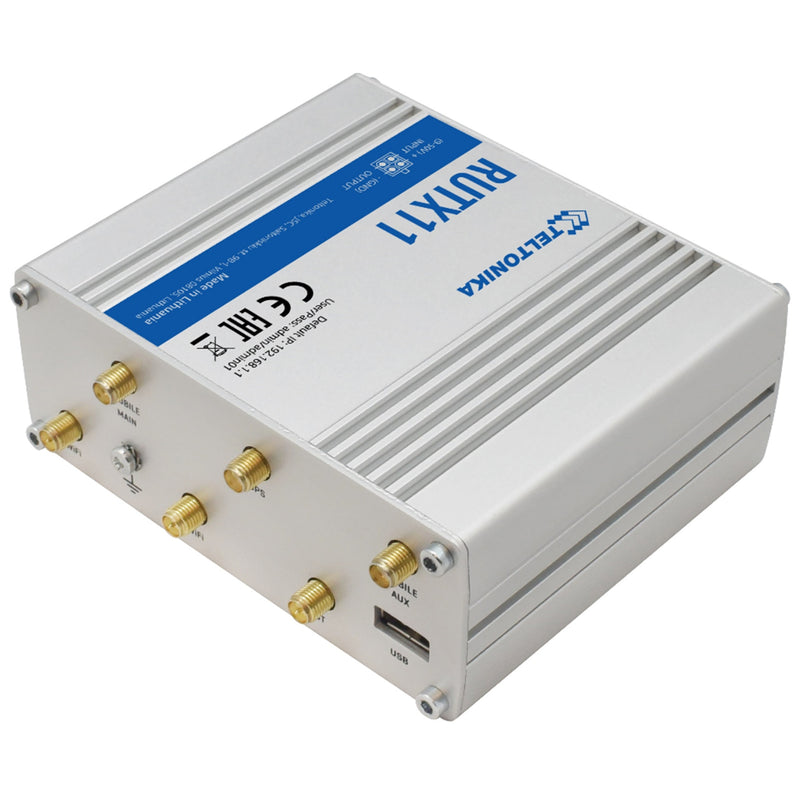

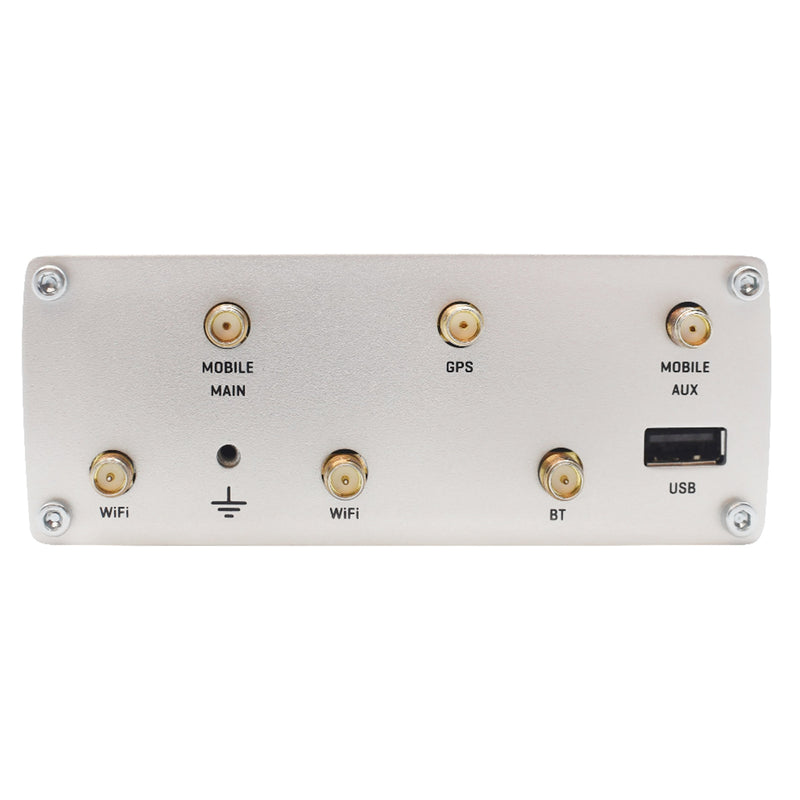

Antennas 2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNNS

USB USB A port for external devices

Reset Factory reset button

PHYSICAL SPECIFICATION

Casing material Full aluminium housing

Dimensions 115 mm x 95 mm x 44 mm (H x W x D)

Weight 456 g

Mounting options DIN rail (can be mounted on two sides), flat surface placement

Operating Environment

Operating temperature -40 C to 75 C

Operating humidity 10 % to 90 % non-condensing

Ingress Protection Rating IP30
