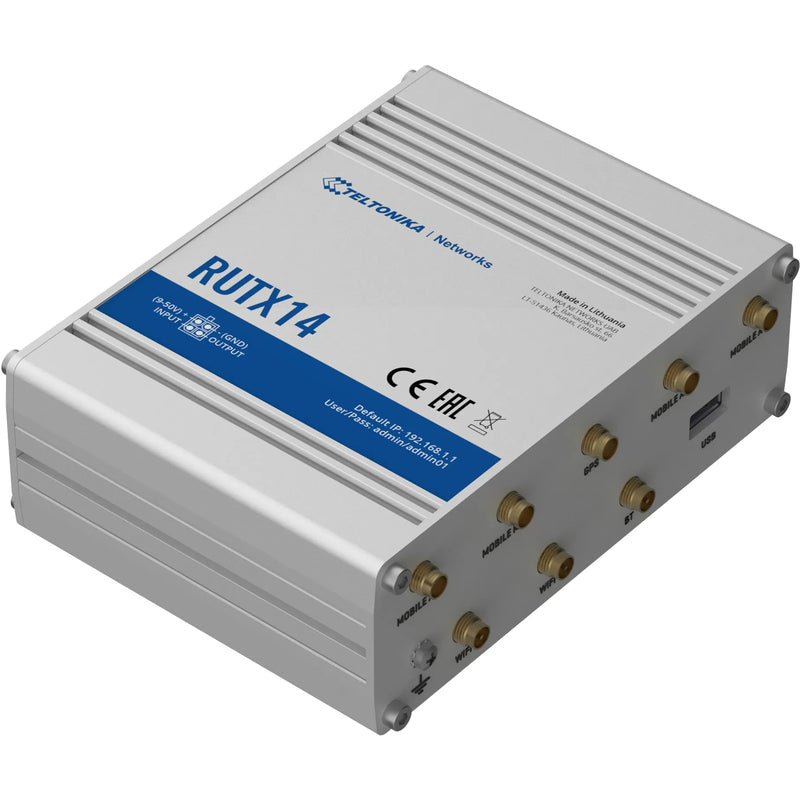

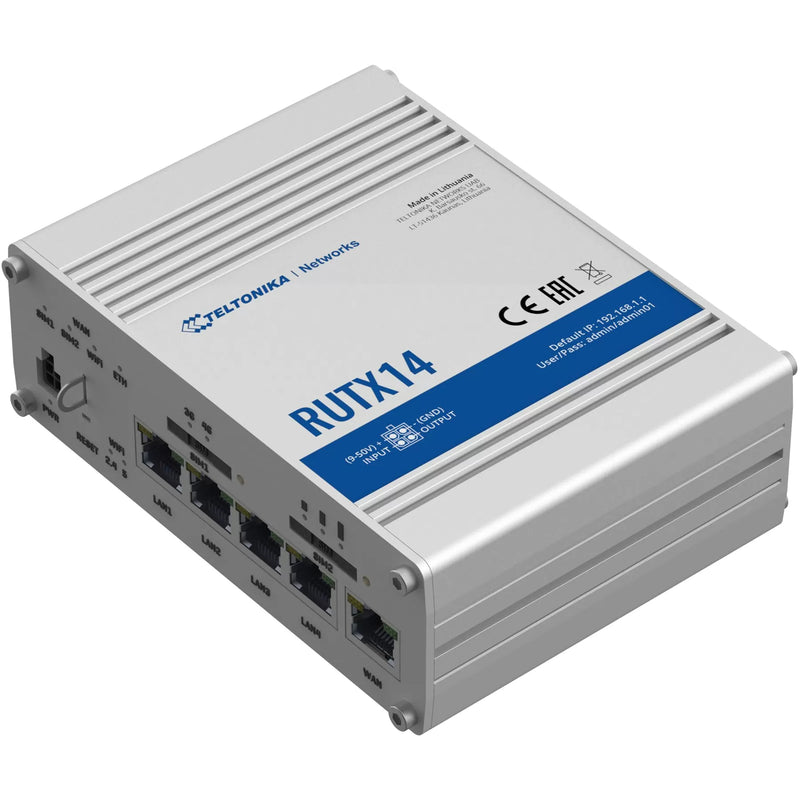

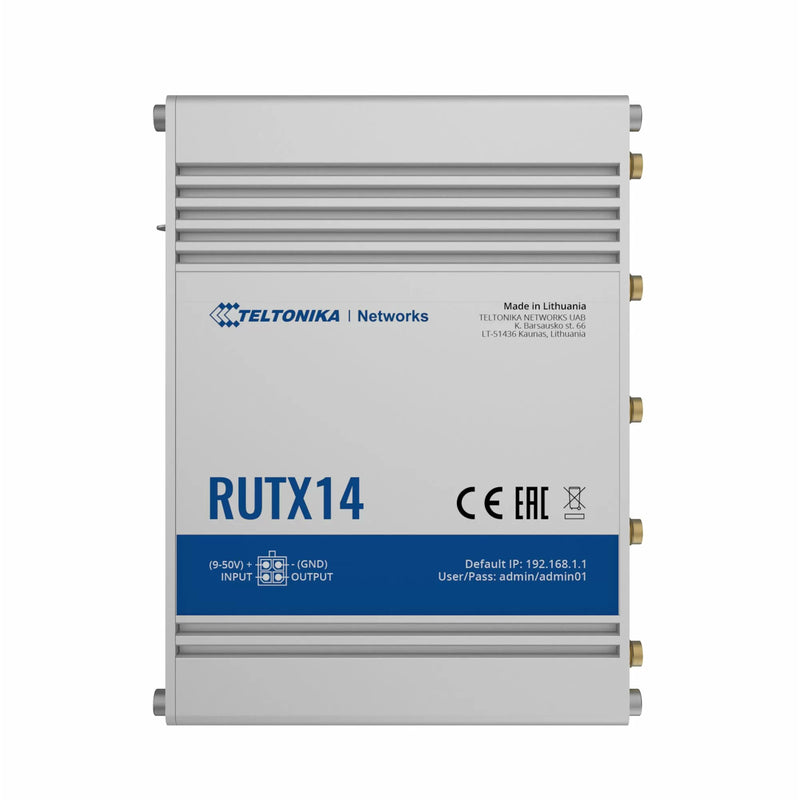

Teltonika RUTX14 (AC867) Dual-Band WiFi 5 LTE Industrial Cellular Router

MOBILE Mobile module

4G (LTE) - Cat 12 up to 600 Mbps, 3G - up to 42 Mbps

SIM/mobile module switch 2 SIM cards, auto switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail

Status Signal strength, SINR, RSRP, RSRQ, Bytes sent/received, connected band, carrier aggregation, IMSI, ICCID,

SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto replay

Black/White list (planned) Operator black/white list

Multiple PDN Possibility to use different PDNs for multiple network access and services

Band management Band lock, Used band status display

APN Auto APN

Bridge mode Direct connection (bridge) between mobile ISP and device on LAN

WIRELESS Wireless mode

802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)

WiFi security WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation

ESSID ESSID stealth mode

WiFi users Up to 150 simultaneous connections

Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing page

ETHERNET

WAN 1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

LAN 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX

BLUETOOTH

Bluetooth 4.0 Bluetooth low energy (LE) for short range communication

NETWORK

Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)

Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL), DLNA

VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection

Firewall Port forwards, traffic rules, custom rules

DHCP Static and dynamic IP allocation, DHCP Relay, Relayd

QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNS Supported >25 service providers, others can be configured manually

Network backup VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as an automatic Failover

Load balancing Balance Internet traffic over multiple WAN connections

SSHFS Possibility to mount remote file system via SSH protocol

SECURITY

Authentication Pre-shared key, digital certificates, X.509 certificates

Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLAN Port and tag based VLAN separation

Mobile quota control Custom data limits for both SIM cards

WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods

OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC

IPsec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)

GRE GRE tunnel

PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3 support

Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code

DMVPN Method of building scalable IPsec VPNs

SSTP SSTP client instance support

ZeroTier ZeroTier VPN client support

WireGuard WireGuard VPN client and server support

MODBUS TCP SLAVE ID filtering Respond to one ID in range [1;255] or any

Allow remote access Allow access through WAN

Custom registers Modbus TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend Modbus TCP slave functionality

MODBUS TCP MASTER

Supported functions 01, 02, 03, 04, 05, 06, 15, 16

Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

MQTT GATEWAY

Gateway Allows sending commands and receiving data from MODBUS Master through the MQTT broker

DNP3 Supported modes

TCP Master, DNP3 Outstation DATA TO SERVER

Protocols HTTP(S), MQTT, Azure MQTT, Kinesis

IoT PLATFORMS

Clouds of thingsAllows monitoring of: Device data, Mobile data, Network info, Availability

ThingWorx Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP

Azure IoT Hub Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server

MONITORING & MANAGEMENT

WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log

FOTA Firmware update from server, automatic notification

SSH SSH (v1, v2)

SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET

CALL Reboot, Status, Mobile data on/off, Output on/off

TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT MQTT Broker, MQTT publisher

SNMP SNMP (v1, v2, v3), SNMP trap

JSON-RPC Management API over HTTP/HTTPS

MODBUS MODBUS TCP status/control

RMS Teltonika Remote Management System (RMS)

SYSTEM CHARACTERISTICS

CPU Quad-core ARM Cortex A7, 717 MHz

RAM 256 MB, DDR3

FLASH storage 256 MB, SPI Flash

FIRMWARE / CONFIGURATION

WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup

FOTA Update FW/configuration from server

RMS Update FW/configuration for multiple devices at once

Keep settings Update FW without losing current configuration

FIRMWARE CUSTOMIZATION

Operating system RutOS (OpenWrt based Linux OS)

Supported languages Busybox shell, Lua, C, C++

Development tools SDK package with build environment provided

LOCATION TRACKING

GNSS GPS, GLONASS, BeiDou, Galileo and QZSS

Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS

NMEA NMEA 0183

Server software Supported server software: TAVL, RMS

Geofencing Configurable multiple geofence zones

USB

Data rate USB 2.0

Applications Samba share, USB-to-serial

External devices Possibility to connect external HDD, flash drive, additional modem, printer

Storage formats FAT, FAT32, NTFS

INPUT/OUTPUT

Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high

Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA

Events SMS, Email, RMS

I/O juggler Allows to set certain I/O conditions to initiate event

POWER Connector

4 pin industrial DC power socket Input voltage range

9 - 50 VDC, reverse polarity protection, voltage surge/transient protection

PoE (passive) Passive PoE. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards

Power consumption Idle: <4 W, Max: <22 W

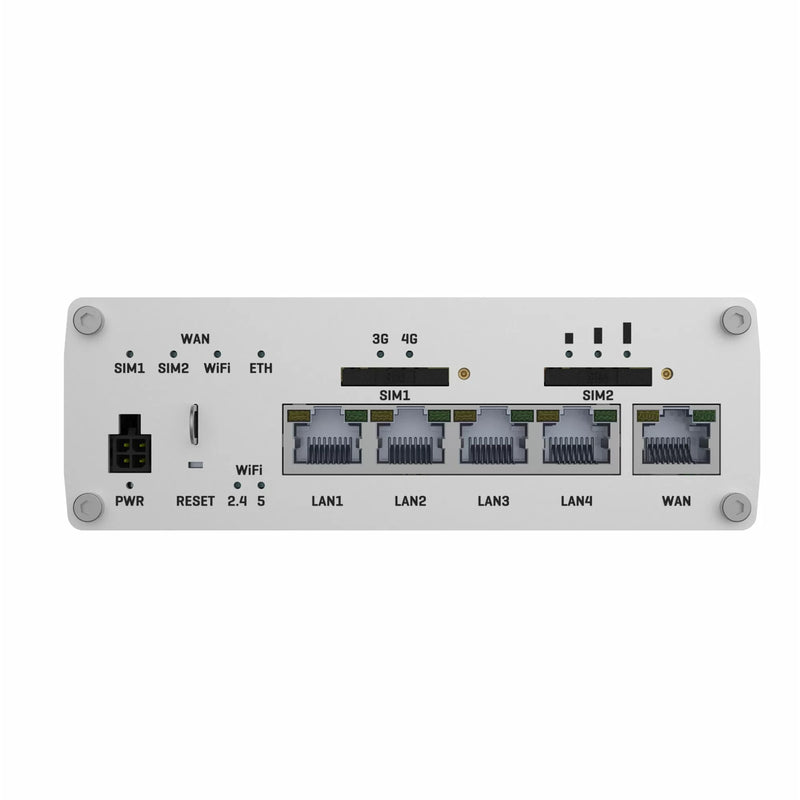

PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)

Ethernet 5 x RJ45 ports, 10/100/1000 Mbps

I/Os 1 x Digital Input, 1 x Digital Output on 4 pin power connector

Status LEDs 2 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2 x 2.4G and 5G WiFi LEDs

SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders

Power 1 x 4 pin DC connector

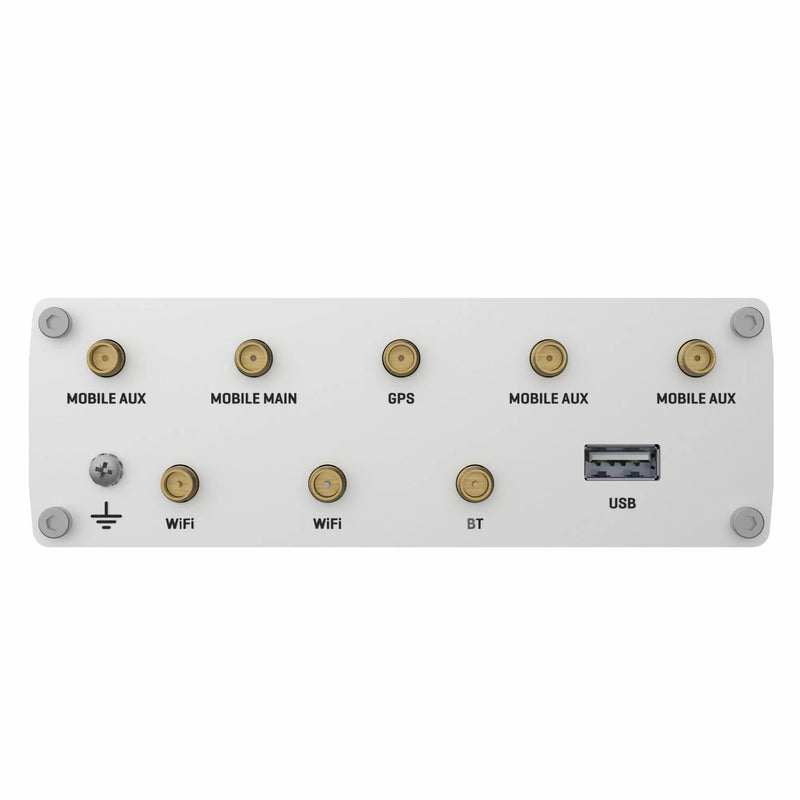

Antennas 4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNNS

USB 1 x USB A port for external devices

Reset Reboot/User default reset/Factory reset button

Other 1 x Grounding screw

PHYSICAL SPECIFICATION

Casing material Full aluminium housing

Dimensions (W x H x D) 132 x 44 x 95 mm

Weight 515 g

Mounting options DIN rail (can be mounted on two sides), flat surface placement

OPERATING ENVIRONMENT

Operating temperature -40 C to 75 C

Operating humidity 10 % to 90 % non-condensing
