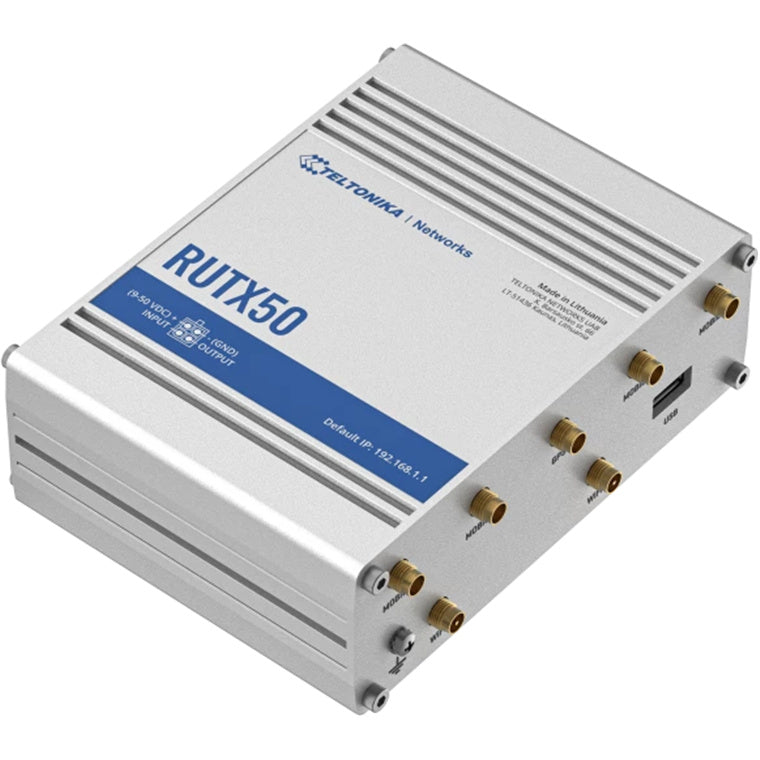

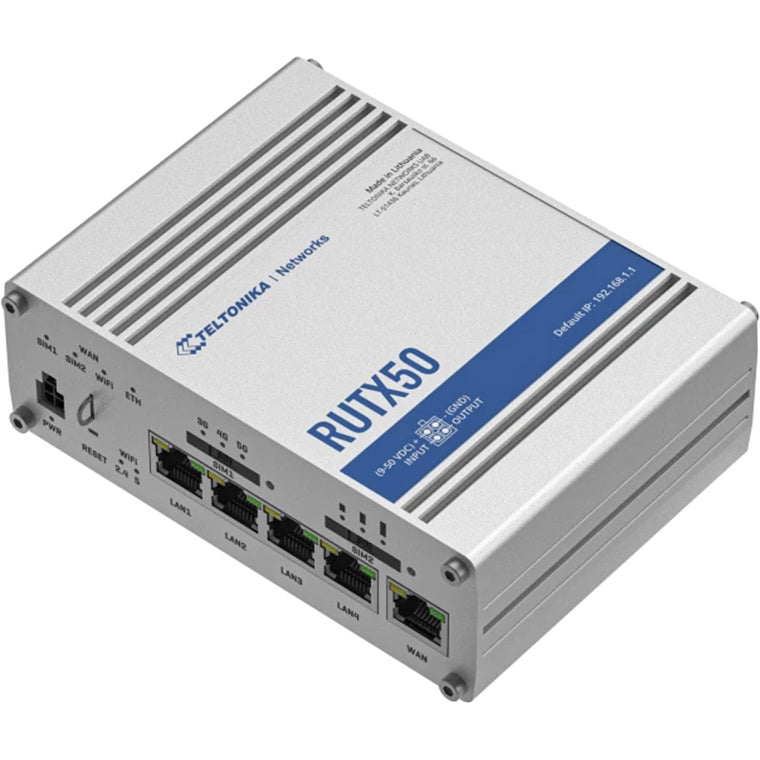

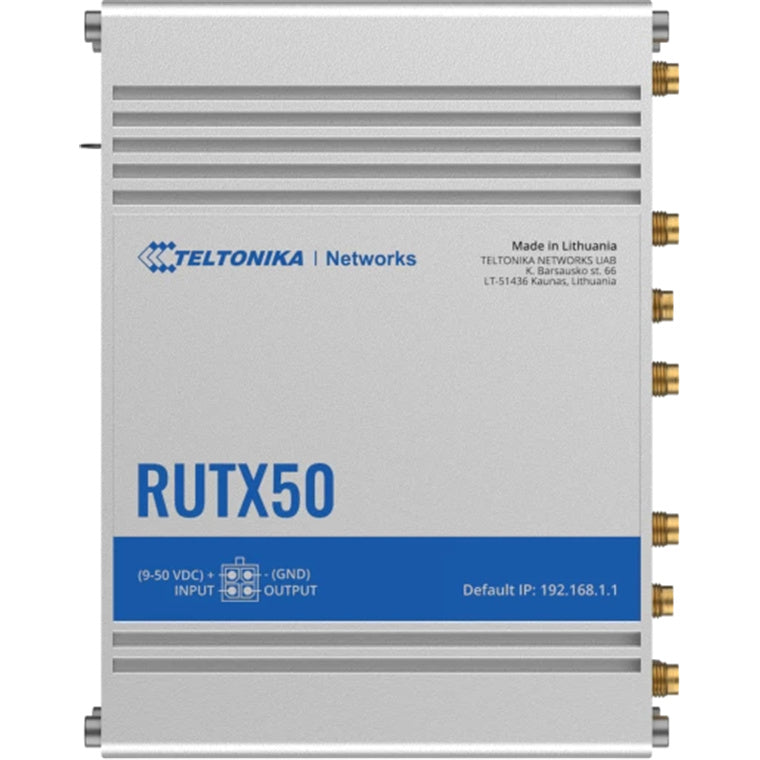

Teltonika RUTX50 (AC867) Dual-Band WiFi 5 5G LTE Industrial Cellular Router

MOBILE

Mobile module 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) - LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G - 42 Mbps DL, 5.76Mbps UL

SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection

Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, Carrier aggregation

SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

USSD Supports sending and reading Unstructured Supplementary Service Data messages

Black/White list Operator black/white list

Multiple PDN Possibility to use different PDNs for multiple network access and services

Band management Band lock, Used band status display

APN Auto APN

Bridge Direct connection (bridge) between mobile ISP and device on LAN

Passthrough Router assigns its mobile WAN IP address to another device on LAN

WIRELESS Wireless mode

802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)

WiFi security WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP,                       TKIP, Auto Cipher modes, client separation

SSID/ESSID ESSID stealth mode

WiFi users up to 150 simultaneous connections

Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in                                        customizable landing page

Wireless mesh/roaming Wireless mesh (802.11s), fast roaming (802.11r)

ETHERNET

WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

LAN 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

NETWORK

Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP)

Network protocols

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)

VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper          routing of VoIP packets

Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for     link inspection

Firewall Port forward, traffic rules, custom rules

DHCP Static and dynamic IP allocation, DHCP Relay, Relayd

QoS / Smart Queue Management (SQM)

Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNS Supported >25 service providers, others can be configured manually

Network backup WiFi WAN, Mobile, VRRP, Wired options, each of which can be used as                              an automatic Failover

Load balancing Balance Internet traffic over multiple WAN connections

Hotspot

Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes

SSHFS Possibility to mount remote file system via SSH protocol

SECURITY Authentication

Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block

Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall            configuration via CLI; DMZ; NAT; NAT-T

Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLAN Port and tag based VLAN separation

Mobile quota control Custom data limits for both SIM cards

WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN OpenVPN

Multiple clients and a server can run simultaneously, 27 encryption methods

OpenVPN Encryption

DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

IPsec

IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GRE GRE tunnel, GRE tunnel over IPsec support

PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec                             support

Stunnel

Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code

DMVPN Method of building scalable IPsec VPNs

SSTP SSTP client instance support

ZeroTier ZeroTier VPN client support

WireGuard WireGuard VPN client and server support

Tinc  Tinc offers encryption, authentication and compression in it's tunnels. Client and               server support.

MODBUS TCP SLAVE

ID range Respond to one ID in range [1;255] or any

Allow Remote Access Allow access through WAN

Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality

MODBUS TCP MASTER

Supported functions 01, 02, 03, 04, 05, 06, 15, 16

Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

MODBUS DATA TO SERVER

Protocol HTTP(S), MQTT, Azure MQTT, Kinesis

MQTT GATEWAY  Allows sending commands and receiving data from MODBUS Master through MQTT broker

DNP3 Supported modes

TCP Master, DNP3 Outstation MONITORING & MANAGEMENT

WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log,      system log, kernel log

FOTA Firmware update from server, automatic notification

SSH SSH (v1, v2)

SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET

Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, WiFi on/off

TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT MQTT Broker, MQTT publisher

SNMP SNMP (v1, v2, v3), SNMP Trap

JSON-RPC Management API over HTTP/HTTPS

MODBUS MODBUS TCP status/control

RMS Teltonika Remote Management System (RMS)

IOT PLATFORMS

Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability

ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength

Azure IoT Hub

Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

SYSTEM CHARACTERISTICS CPU

Quad-core ARM Cortex A7, 717 MHz

RAM 256 MB (100 MB available for userspace)

FLASH storage 256 MB (80 MB available for userspace)

FIRMWARE / CONFIGURATION

WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup

FOTA Update FW

RMS Update FW/configuration for multiple devices at once

Keep setting Update FW without losing current configuration

FIRMWARE CUSTOMIZATION Operating system RutOS (OpenWrt based Linux OS)

Supported languages Busybox shell, Lua, C, C++

Development tools SDK package with build environment provided

LOCATION TRACKING GNSS GPS, GLONASS, BeiDou, Galileo and QZSS

Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS

NMEA NMEA 0183

NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)

Server software Supported server software TAVL, RMS

Geofencing Configurable multiple geofence zones

USB Data rate

USB 2.0 Applications

Samba share, USB-to-serial External devices

Possibility to connect external HDD, flash drive, additional modem, printer

Storage formats FAT, FAT32, NTFS

INPUT / OUTPUT

Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high

Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA

Events Email, RMS, SMS

I/O juggler Allows to set certain I/O conditions to initiate event

POWER

Connector 4-pin industrial DC power socket

Input voltage range 9 - 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max

PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 50 VDC

Power consumption Idle: < 4W, Max: 18W

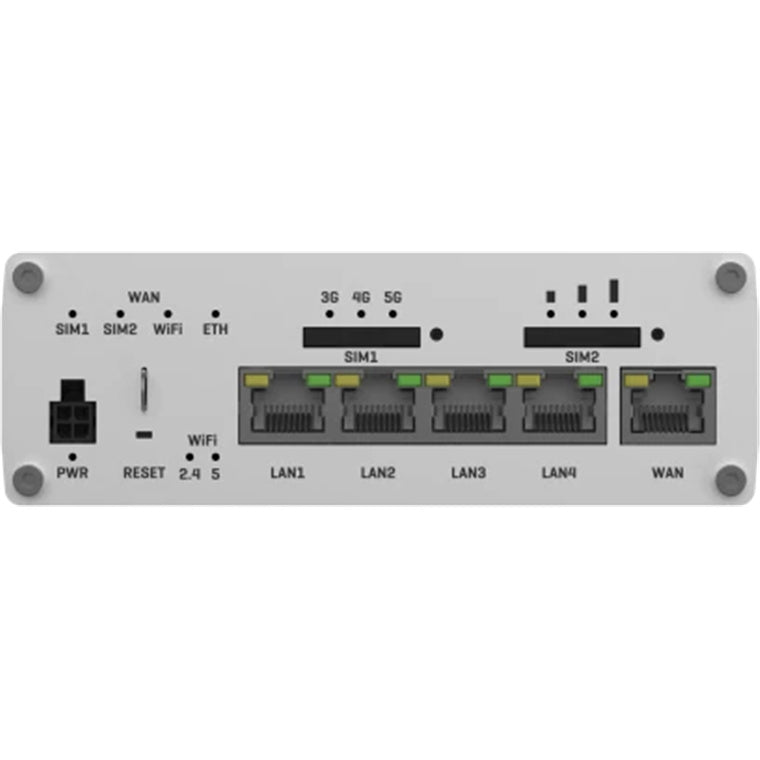

PHYSICAL INTERFACES Ethernet 5 x RJ45 ports, 10/100/1000 Mbps

I/O's 1 x Digital Input, 1 x Digital Output on 4-pin power connector

Status LEDs 3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2 x 2.4G and 5G WiFi LEDs

SIM 2 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V

Power 1 x 4-pin power connector

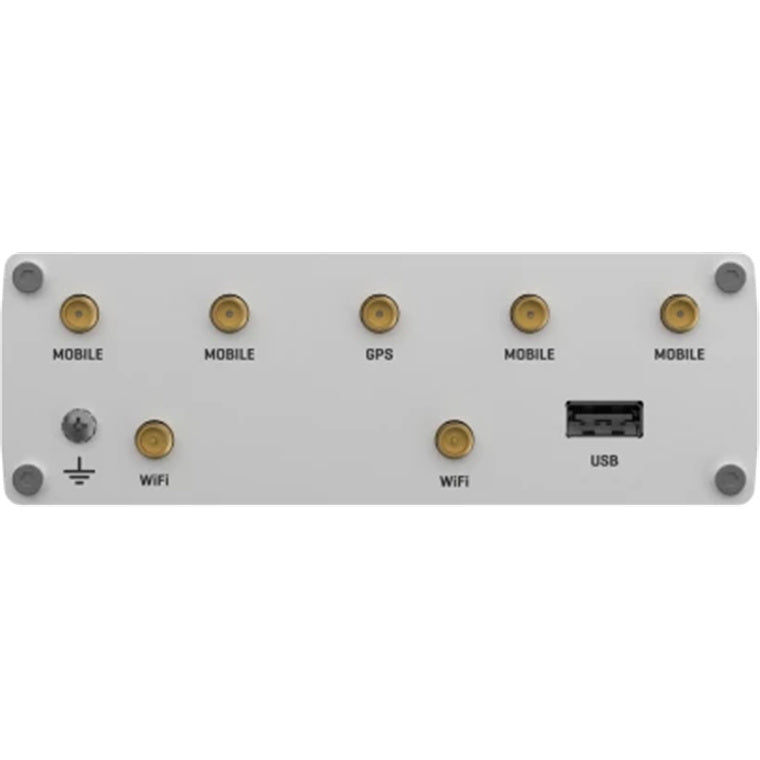

Antennas 4 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS

USB 1 x USB A port for external devices

Reset Reboot/User default reset/Factory reset button

Other 1 x Grounding screw

PHYSICAL SPECIFICATION

Casing material Aluminum housing

Dimensions (W x H x D) 132 x 44.2 x 95.1 mm

Weight 533 g

Mounting options DIN rail (can be mounted on two sides), flat surface placement

OPERATING ENVIRONMENT

Operating temperature -40 °C to 75 °C

Operating humidity 10% to 90% non-condensing

Ingress Protection Rating IP30
