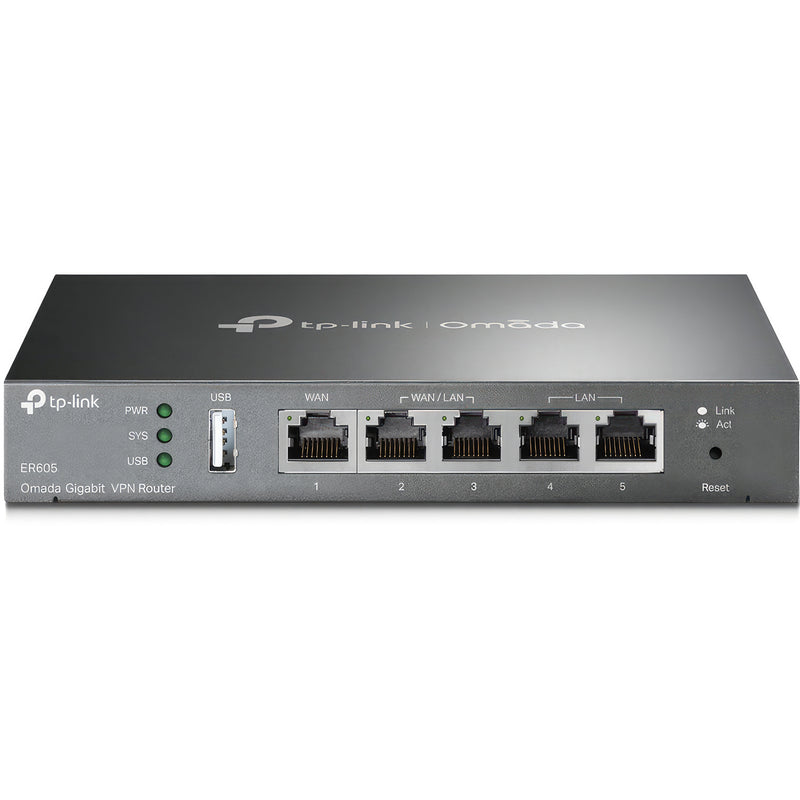

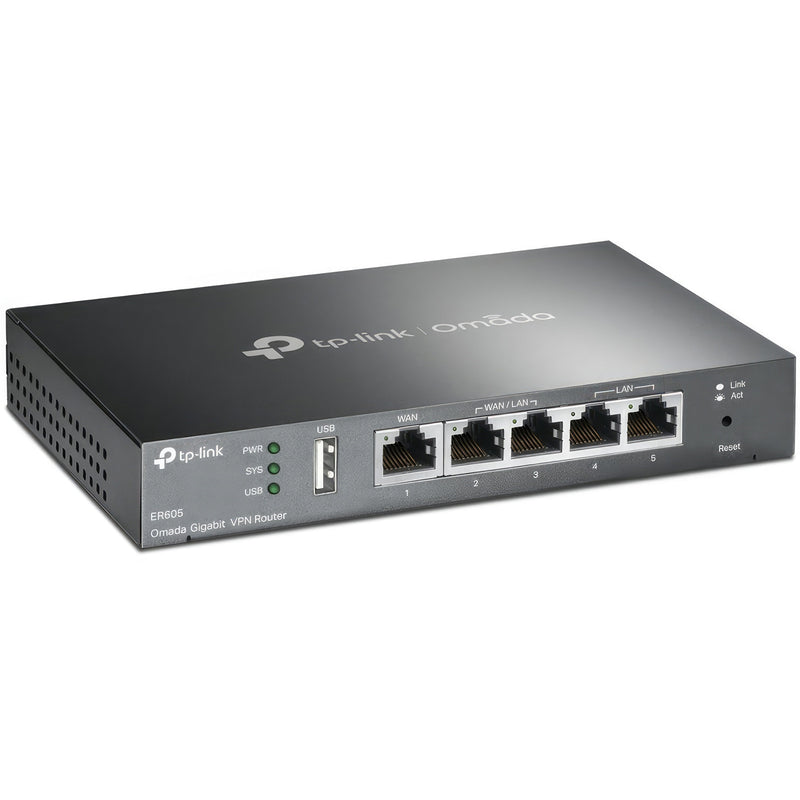

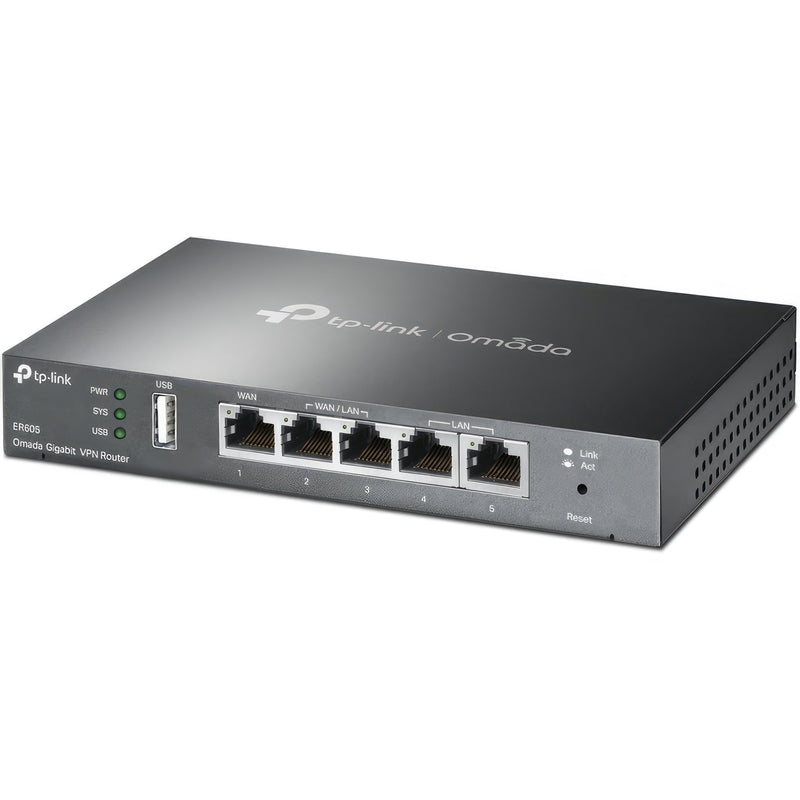

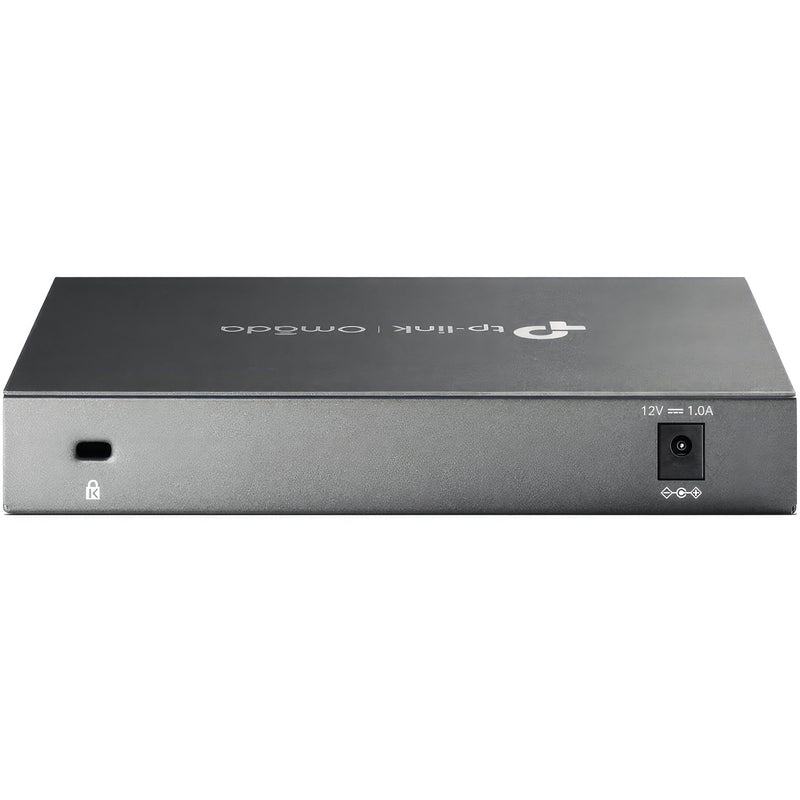

TP-Link Omada ER605 Gigabit Multi-WAN VPN Router
Term:
100% Traditional Laybuy. Delivery after full payment.
Attention, eager beaver! Need your delivery in a flash?
No worries, mate! We're here to save the day! Just give us an email at contact@layawayau.com and let us know if you would like to pay more or less each week. Rest assured, we'll also provide you with an estimated delivery date when we make these changes. So don't you worry, your delivery dreams are in safe hands!
TL-R605 SafeStream Gigabit Multi-WAN VPN Router
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
- Five Gigabit Ports: High-speed wired connectivity.
- Up to 3 WAN Ethernet Ports: 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.
- Highly Secure VPN: Supports up to 20x LAN-to-LAN IPsec, 16x OpenVPN*, 16x L2TP, and 16x PPTP VPN connections.
- Abundant Security Features: Advanced firewall policies, DoS defence,IP/MAC/URL filtering, and more security functions protect your network and data.
Omada SDN-The Smarter Cloud Solution for Business Networking
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, TL-R605 allows for remote and centralised management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.
Up to Three WAN Gigabit Ports & One USB WAN for Mobile Broadband
Two freely interchangeable ports allow the router to support up to three WAN ports for various Internet access requirements. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.
Mobile broadband via 4G/3G modem by connecting to the USB port is also supported for WAN backup.
Highly Secure VPN
TL-R605 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware design, the router supports and manages up to 20x LAN-to-LAN IPsec, 16x OpenVPN*, 16x L2TP, and 16x PPTP VPN connections. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications travelling over the internet.
Internet Access Management Strategy
Standardize users' online behaviour and easily specify the internet access rights and strategies of the employee via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
Hospitality
TP-Link Omada SDN allows hotels to build the reliable, cost-effective wireless networks that drive progress and keep guests happy and coming back for another stay.
- Full WiFi coverage and wired connections
- Flexible guest control
- Seamless roaming
Education
Due to its reliable, scalable, and secure network solution, TP-Link has been widely acknowledged by global customers in the Education market ranging from infant schools with a few APs up to colleges and universities with hundreds of APs.
- Easy management
- High-density WiFi
- Full WiFi coverage and wired connections
Branch Location
TP-Link Omada offers enterprise-level VPN, real-time network monitoring, and quick network troubleshooting to meet the requirements of headquarters and branches.
- VPN
- Easy management
- Network monitoring and troubleshooting
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface
1 Fixed Gigabit WAN Port
2 Fixed Gigabit LAN Ports
2 Changeable Gigabit WAN/LAN Ports
1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup‚)
Network Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100O STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100O STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button Reset Button
Power Supply External 9V/0.85A DC Adapter
Flash PI 16MB
DRAM 128 MB
LED PWR, SYS, WAN, LAN
Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
PERFORMANCE
Concurrent Session 25,000
IPsec VPN Throughput 41.5 Mbps
BASIC FUNCTIONS
WAN Connection Type Static/Dynamic IP
PPPoE
PPTP
L2TP
DHCP DHCP Server/Client
DHCP Address Reservation
Multi-net DHCP*
Multi-IP Interfaces*
*Multi-IP Interfaces and Multi-Net DHCP are supported only in Controller Mode
MAC Clone
Modify WAN/LAN MAC Address*
*LAN MAC Address can be modified only in Standalone Mode.
IPTV IGMP v2/v3 Proxy
IPv6
Developing*
*IPv6 is being developed and will be updated in the following software versions
VLAN 802.1Q VLAN
ADVANCED FUNCTIONS
ACL IP/Port/Protocol/Domain Name Filtering
Advanced Routing
Static Routing
Policy Routing
Bandwidth Control IP/Port-based Bandwidth Control
Guarantee & Limited Bandwidth
Load Balance
Intelligent Load Balance
Application Optimized Routing
Link Backup (Timing*, Failover)
Online Detection
*The function is supported only in Standalone Mode.
NAT
One-to-One NAT*
Multi-Net NAT
Virtual Server
Port Triggering*
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
*These function are supported only in Standalone Mode.
Security
SPI Firewall
VPN Passthrough
FTP/H.323/PPTP/SIP/IPsec ALG
DoS Defence, Ping of Death
Local Management
Session Limit IP-based Session Limit
VPN IPsec VPN
20 IPsec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IKEv1/v2*
MD5, SHA1 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
*These functions require the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller
PPTP VPN
PPTP VPN Server
10 PPTP VPN Clients
16 Tunnels
PPTP with MPPE Encryption
L2TP VPN
L2TP VPN Server
10 L2TP VPN Clients
16 Tunnels
L2TP over IPSec
OpenVPN
OpenVPN Server*
10 OpenVPN Clients*
16 OpenVPN Tunnels*
*OpenVPN requires the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller
SECURITY
Attack Defense
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
Filtering
WEB Group Filtering*
URL Filtering
Web Security*
*These functions are supported only in Standalone Mode.
ARP Inspection
Sending GARP Packets*
ARP Scanning*
IP-MAC Binding*
*These functions are supported only in Standalone Mode.
Access Control Source/Destination IP Based Access Control
AUTHENTICATION
Web Authentication
No Authentication
Simple Password*
Hotspot(Local User / Voucher* / SMS* / Radius*)
External Radius Sever
External Portal Sever*
Facebook*
*These functions require the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller
MANAGEMENT
Omada App Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Maintenance
Time Setting
Diagnostic
Firmware Upgrade
Factory Defaults/Reboot
Backup&Restore
System Log
Remote Management
Statistics
Controller Settings
SNMP
Management Features
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
ZTP (Zero-Touch Provisioning)*
*Zero-Touch Provisioning is supported only when using Omada Cloud-Based Controller.
OTHERS
Certification CE, FCC, RoHS
Package Contents
TL-R605
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
System Requirements Microsoft® Windows® 10, 8, 7,Vista€ž¢, XP or MAC® OS, NetWare®, UNIX® or Linux
Environment
Operating Temperature: 0-40C (32-104F);
Storage Temperature: -40-70C (-40-158F)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
