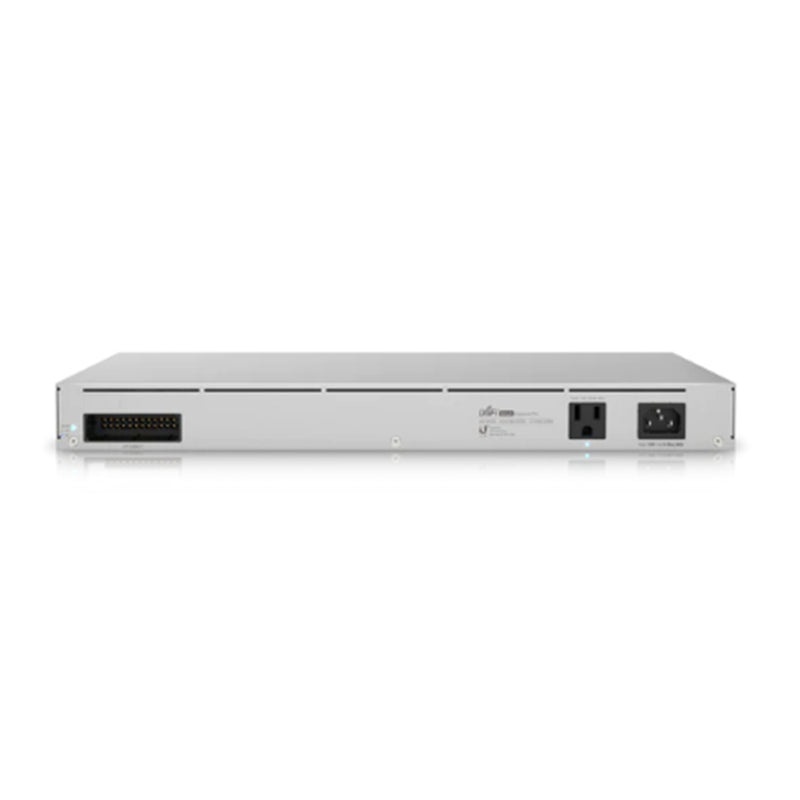

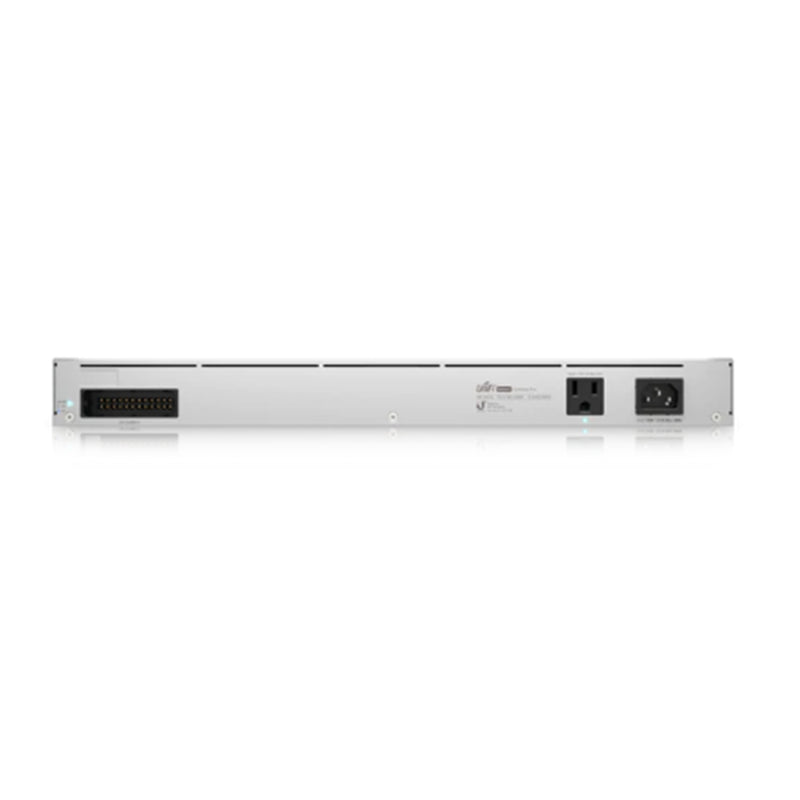

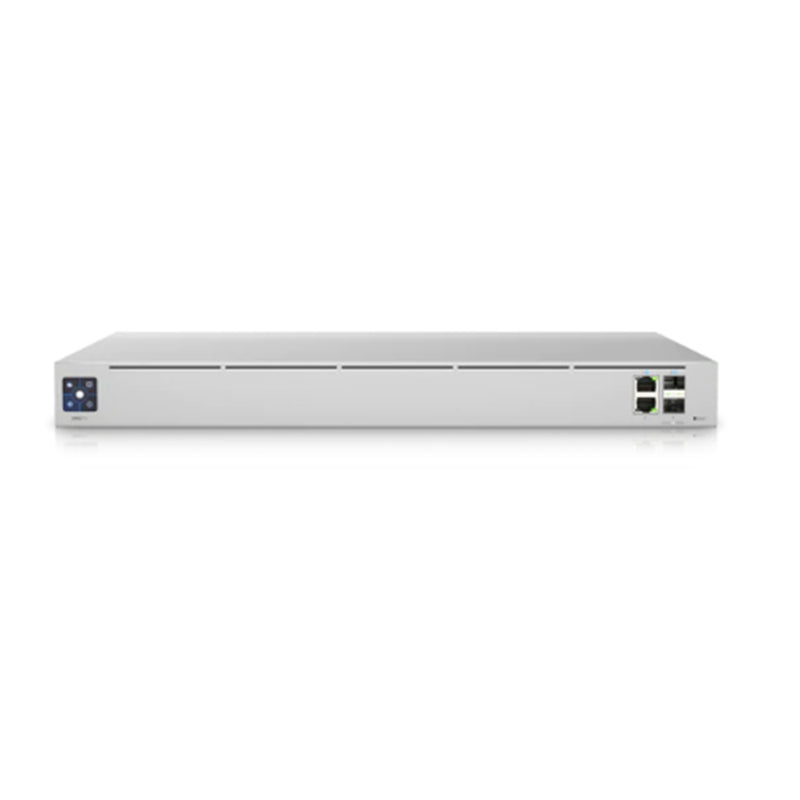

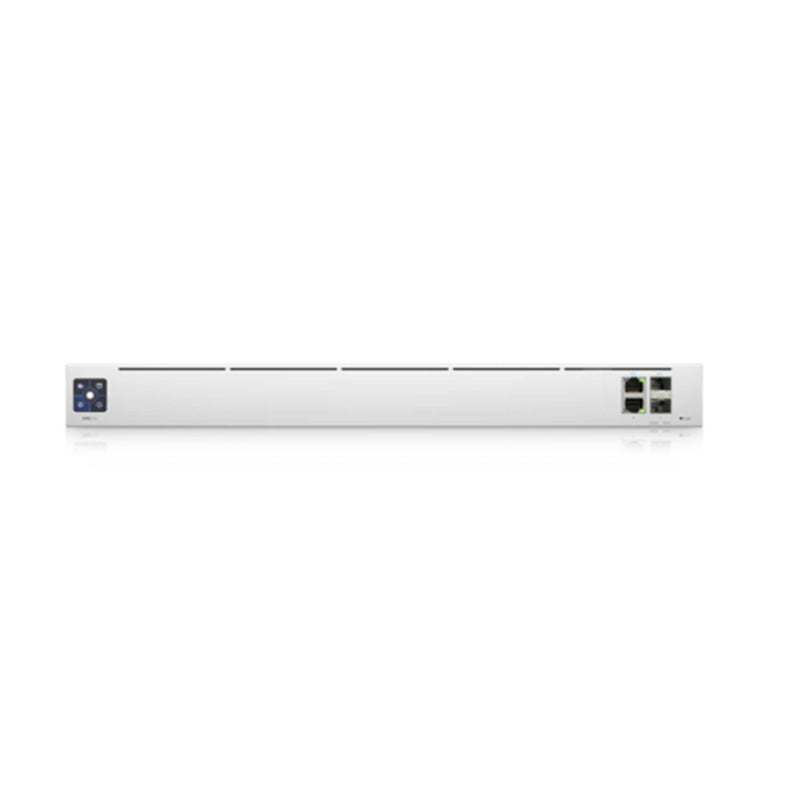

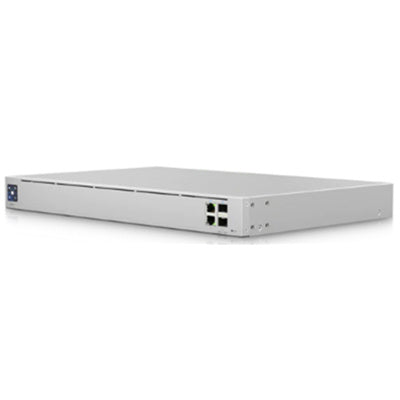

Ubiquiti UniFi UXG-PRO Next-generation Gateway Pro 10G HyperFibre Router
Term:
100% Traditional Laybuy. Delivery after full payment.
Attention, eager beaver! Need your delivery in a flash?
No worries, mate! We're here to save the day! Just give us an email at contact@layawayau.com and let us know if you would like to pay more or less each week. Rest assured, we'll also provide you with an estimated delivery date when we make these changes. So don't you worry, your delivery dreams are in safe hands!
Dual-WAN security gateway designed to protect medium to large-sized networks with enterprise-class firewall configuration and threat management features.
The UniFi Next-Generation Gateway Pro (UXG Pro) is a powerful security gateway that delivers a versatile networking interface and enterprise-class threat management functionality to medium to large-sized networks.
The UXG Pro is equipped with (2) WAN ports (GbE RJ45 and 10G SFP+) that provide failover support, as well as (2) LAN ports (GbE RJ45 and 10G SFP+) to provide the high-speed connectivity needed to support the most bandwidth-intensive applications.
It also excels as a complete network security solution, offering a full suite of threat mitigation features, including deep packet inspection (DPI), intrusion detection and prevention systems (IDS/IPS), and layered firewall configuration.
The UXG Pro can be paired with a Cloud Key Plus to create a highly powerful and secure deployment that can be fully managed with the UniFi Network application (web/mobile).
Features
- 1.7 GHz quad-core processor
- (2) WAN ports (GbE RJ45 and 10G SFP+) with failover support
- (2) LAN ports (GbE RJ45 and 10G SFP+)
- Enterprise-class DPI, IPS/IDS, and layered firewall configuration
- Power redundancy when connected to the UniFi SmartPower RPS (sold separately)
- SmartPower outlet (125VAC/2A) for an external modem
- 1U-sized, rack-mountable device
Managed with the UniFi Network application: Version 5.14.11 and later
Works with the UniFi Network Application
- Centrally manage multiple networks from an intuitive interface
- Enjoy real-time device insights and deep configuration options
- Upgrade device firmware remotely
- Manage network users and guests with ease
- Personalize the design, architecture, and privacy of guest hotspots
- Set up devices quickly and manage them on the go with a powerful mobile app
Mechanical
Dimensions 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24")
Weight 3.42 kg (7.54 lb)
Enclosure materials
Front panel: aluminum CNC
Top cover/base: SGCC steel
Hardware
Processor
Quad-core ARM® Cortex®-A57 at 1.7 GHz
Memory information 2 GB DDR4
Management interface Ethernet
Networking interface
LAN:
(1) 1 GbE RJ45 port
(1) 10G SFP+ port
WAN:
(1) 1 GbE RJ45 port
(1) 10G SFP+ port
LCM display
(1) 1.3" touchscreen
Bootup animation: bootup in progress
Firmware upgrade icon: firmware upgrading
Button Factory reset
Power method
US
(1) Universal AC input, 125VAC, 2.7A max., 60 Hz
(1) RPS DC input, 11.5VDC, 2.87A
Worldwide
(1) Universal AC input, 200-240VAC, 1.7A max., 50/60 Hz
(1) RPS DC input, 11.5VDC, 2.87A
Power supply AC/DC, internal, 50W
Max. power consumption 30W
ESD/EMP protection Air: ± 15 kV, contact: ± 8 kV
Operating temperature -10 to 40° C (14 to 104° F)
Operating humidity 5 - 95% noncondensing
Certifications CE, FCC, IC
LEDs AC outlet/ RPS
Blue Ethernet
Green/amber
SFP+
White/green
