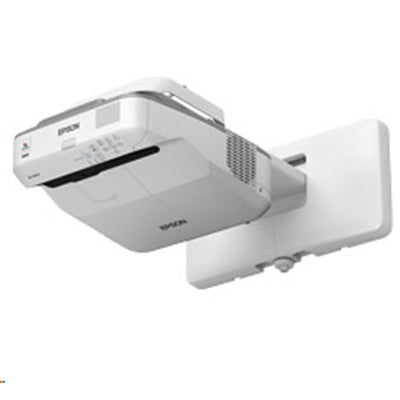

Epson EB-685W 3500lm WXGA Ultra Short Throw 3LCD Lamp Projector
Term:
100% Traditional Laybuy. Delivery after full payment.
Attention, eager beaver! Need your delivery in a flash?
No worries, mate! We're here to save the day! Just give us an email at contact@layawayau.com and let us know if you would like to pay more or less each week. Rest assured, we'll also provide you with an estimated delivery date when we make these changes. So don't you worry, your delivery dreams are in safe hands!
Epson V11H744553
Take classroom collaboration to another level with the Epson EB-600 series ultra-short throw projectors. Designed for today's BYOD classroom, these projectors display 100" images from just 29cm away for optimal visibility. Offering 3x Higher Colour Brightness than competitive models, Epson 3LCD projectors and displays ensure bright, vivid images.
It also features wireless functionality (module sold separately) and advanced connectivity, so teachers can share content from multiple devices, including Chromebooks - up to four at once with Moderator software. Plus, its lamp lasts up to 10,000 hours in ECO Mode.
TECHNOLOGY
Projection Technology Epson 3LCD, 3-chip technology
Projection System RGB liquid crystal shutter projection system
LCD Panel 0.59-inch with (D9, C2 Fine)
OPTICAL
Zoom Ratio 1.0 - 1.35 (Digital Zoom)
Screen Size (Projection Distance) 60.0" to 100.0" [35.4 to 60.1cm]
74.3" screen 44.3 cm
Throw Ratio 0.28 (Zoom:Wide)
0.37 (Zoom:Tele)
Projection Lens Type No Optical Zoom / Focus (Manual)
Projection Lens F Number 2.6
Projection Lens Focal Length 3.7 mm
Focus Method Manual Focus
Offset 5.8:-2
White Light Output 3,500 lumens
Colour Light Output 3,500 lumens
Resolution WXGA
Native Aspect Ratio 16:10
Contrast Ratio 14,000:1
Keystone Correction Vertical -3 to +3 degrees
Horizontal -3 to +3 degrees
Colour Reproduction Up to 1.07 billion colours
Colour Processing 10 bit
CONNECTIVITY
Video I/O - Input
2x RGB D-sub 15pin
*Computer 2 in common with Monitor Out
1x RCA Composite
Video I/O - Output
1x RGB D-sub 15pin
*Computer 2 in common with Monitor Out (Output signal : Computer 1 only)
Digital Input 3x HDMI (1 supports MHL)
Audio I/O - Input 3x Stereo mini
Audio I/O - Output 1x Stereo mini
Mic I/O - Input 1x Stereo mini
Control I/O 1x RS-232C D-sub 9pin
USB I/O
1x USB Type A (for USB Memory, USB Document Camera, Firmware update, Copy OSD settings)
1x USB Type B (for USB display, mouse, K/B, Control, Firmware update, Copy OSD settings)
Network I/O
1x RJ45 (100Mbps) Wired LAN
1x USB Type A (for Optional ELPAP10 LAN unit)
Wireless Connectivity
Optional ELPAP10 Wireless LAN unit
Speaker Output
Monaural: 16 W x 1
ADVANCED FEATURES
EasyMP Network Projector control and projector management via network Yes
AMX Device Discovery Yes
Crestron Integrated Partner Yes
Crestron RoomView Yes
Extron IP Link Yes
Control4 Yes
EasyMP Network Multi PC Projection Yes
Message Broadcasting Yes
Firmware update
Network via LAN cable, USB A via USB thumb drive, USB B via USB cable
Copy OSD settings
Network via LAN cable, USB A via USB thumb drive, USB B via USB cable
Quick Wireless Connection Yes
Wireless LAN Security WPA/WPA2-Personal (with optional Wireless LAN Unit)
Instant Off Yes
Direct Power On Yes
Auto Power On Yes (Computer1,USB-B)
Security
- Kensington - lock provision
- Padlock & Security cable hole
- Wireless LAN unit lock
- Password protect function (Power On, Network, Protection of User logo)
Colour Modes Dynamic, Presentation, Cinema, sRGB, BlackBoard
Integrated Mount
Optional (ELPMB46) GENERAL
Dimensions (excl feet) WxDxH 367 x 400 x 149mm
Weight 5.7kg
Lamp Warranty 1 Year (or 750 hours)*
Projector Warranty 3 Years
Lamp Hours 5,000 hours (Normal)10,000 hours (ECO)
Lamp Type 250W UHE
Power Consumption
Lamp On
354W (Normal)
309W (ECO)
Power Consumption
Networked Standby 2.3W
Power Consumption
Energy Saving 0.37W
Air Filter maintenance cycle up to 10,000 hours
Fan Noise Level 35dB (Normal)
30dB (ECO)
