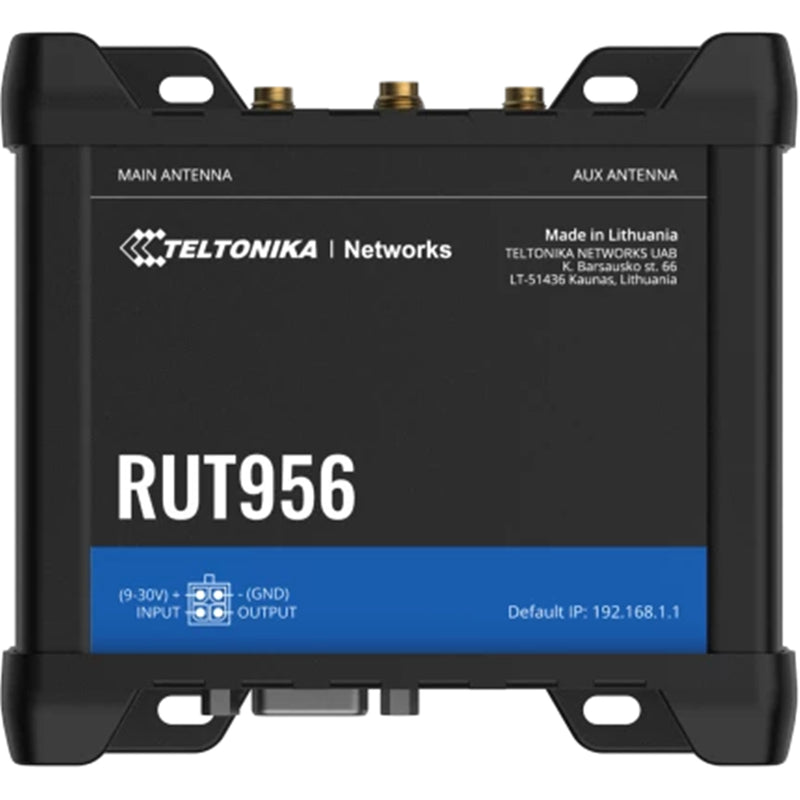

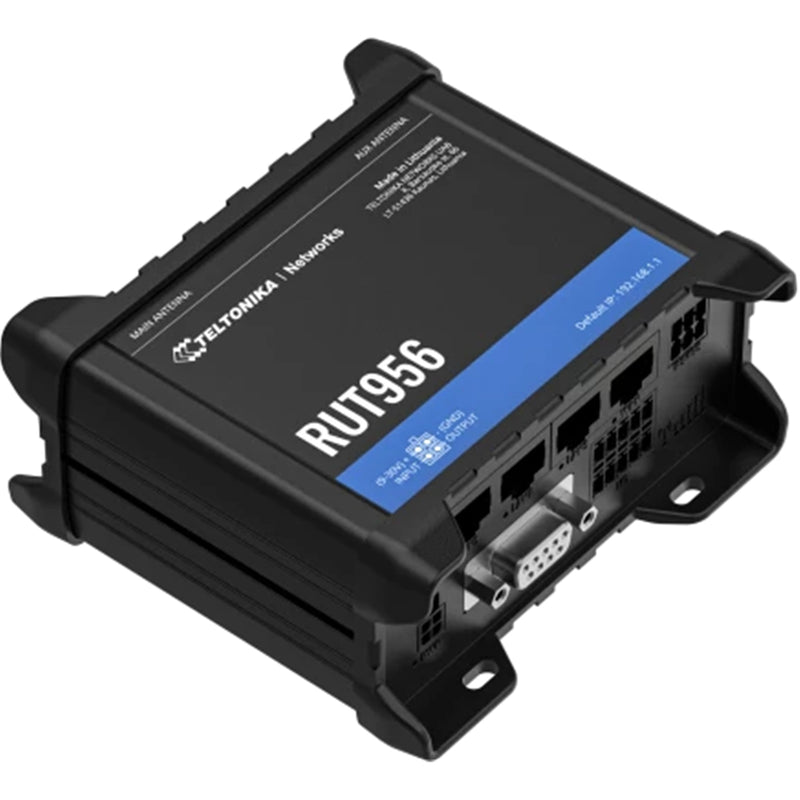

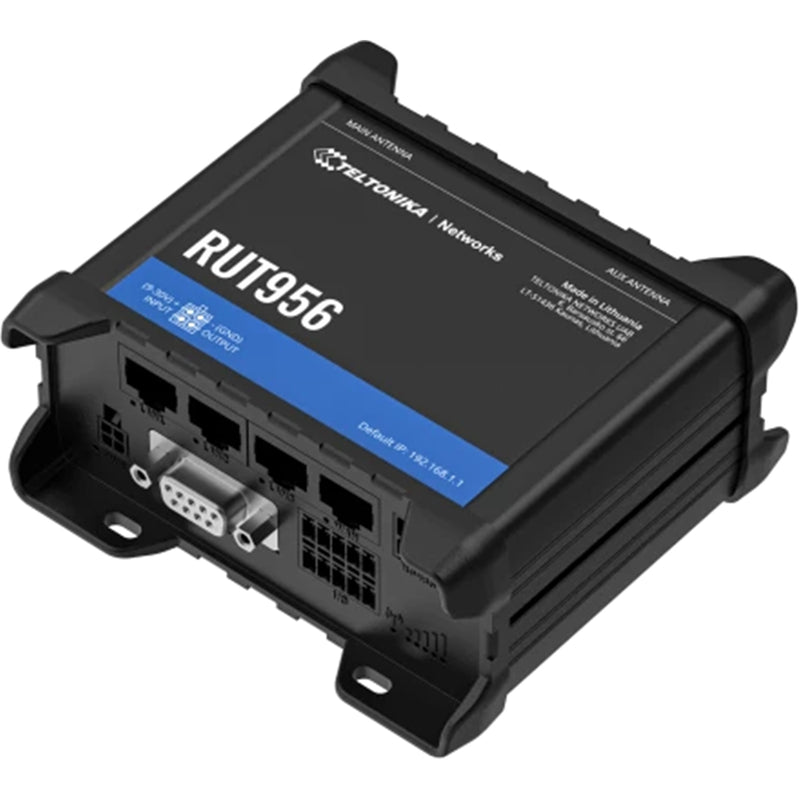

Teltonika RUT956 Industrial Cellular Router with WiFi

MOBILE

Mobile module

4G (LTE) - Cat 4 up to 150 Mbps, 3G - Up to 42 Mbps, 2G - Up to 236.8 kbps

SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection

Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID

SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

USSD Supports sending and reading Unstructured Supplementary Service Data messages

Black/White list Operator black/white list

Multiple PDN Possibility to use different PDNs for multiple network access and services

Band management Band lock, Used band status display

APN Auto APN

Bridge Direct connection (bridge) between mobile ISP and device on LAN

Passthrough Router assigns its mobile WAN IP address to another device on LAN

WIRELESS Wireless mode

IEEE 802.11b/g/n, Access Point (AP), Station (STA)

Wi-Fi security WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation

SSID/ESSID SSID stealth mode and access control based on MAC address

Wi-Fi users Up to 100 simultaneous connections

Wireless Hotspot

Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes

Wireless Connectivity Features

Fast roaming (802.11r), Relayd

ETHERNET

WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

LAN 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

NETWORK

Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)

VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Firewall Port forward, traffic rules, custom rules

DHCP Static and dynamic IP allocation, DHCP Relay

QoS / Smart Queue Management (SQM)

Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNS

Supported >25 service providers, others can be configured manually

Network backup

Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

Load balancing

Balance Internet traffic over multiple WAN connections

SSHFS Possibility to mount remote file system via SSH protocol

SECURITY

Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block

Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLAN Port and tag-based VLAN separation

Mobile quota control Mobile data limit, customizable period, start time, warning limit, phone number

WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN OpenVPN

Multiple clients and a server can run simultaneously, 27 encryption methods

OpenVPN Encryption

DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,
BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

IPsec

IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GRE

GRE tunnel, GRE tunnel over IPsec support

PPTP, L2TP

Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code

DMVPN Method of building scalable IPsec VPNs

SSTP SSTP client instance support

ZeroTier ZeroTier VPN client support

WireGuard WireGuard VPN client and server support

Tinc Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

MODBUS TCP SLAVE

ID range Respond to one ID in range [1;255] or any

Allow Remote Access Allow access through WAN

Custom registers

MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality

MODBUS TCP MASTER

Supported functions 01, 02, 03, 04, 05, 06, 15, 16

Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

MODBUS RTU MASTER (RS232)

Supported baud rates From 300 to 115200

Supported functions 01, 02, 03, 04, 05, 06, 15, 16

Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Number of data bits From 5 to 8

Number of stop bits 1 or 2

Parity None, Even, Odd

Flow None, RTS/CTS, Xon/Xoff

Duplex Full duplex

MODBUS RTU MASTER (RS485) Supported baud rates

From 300 to 230400

Supported functions 01, 02, 03, 04, 05, 06, 15, 16

Supported data formats

8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Number of data bits8

Number of stop bits 1

Parity

None, Even, Odd

Flow None, Xon/Xoff

Duplex Half duplex

DATA TO SERVER

Protocol HTTP(S), MQTT, Azure MQTT, Kinesis

MQTT GATEWAY

MQTT Gateway

Allows sending commands and receiving data from MODBUS Master through MQTT broker

DNP3

Supported modes TCP Master, DNP3 Outstation, RTU Master

MONITORING & MANAGEMENT

WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log

FOTA Firmware update from server, automatic notification

SSH SSH (v1, v2)

SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET

Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off

TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT MQTT Broker, MQTT publisher

SNMP SNMP (v1, v2, v3), SNMP Trap

JSON-RPC Management API over HTTP/HTTPS

MODBUS MODBUS TCP status/control

RMS Teltonika Remote Management System (RMS)

IOT PLATFORMS

Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability

ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength

Azure IoT Hub

Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

SYSTEM CHARACTERISTICS

CPU Mediatek, 580 MHz, MIPS 24KEc

RAM 128 MB, DDR2

FLASH storage 16 MB, SPI Flash

FIRMWARE / CONFIGURATION

WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup

FOTA Update FW

RMS Update FW/configuration for multiple devices at once

Keep settings Update FW without losing current configuration

FIRMWARE CUSTOMIZATION

Operating system RutOS (OpenWrt based Linux OS)

Supported languages Busybox shell, Lua, C, C++, and Python, Java in Package manager

Development tools SDK package with build environment provided

LOCATION TRACKING

GNSS GPS, GLONASS, BeiDou, Galileo and QZSS

Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS

NMEA NMEA 0183

NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)

Server software Supported server software TAVL, RMS

Geofencing Configurable multiple geofence zones

SERIAL RS232

DB9 connector, RS232 (with RTS, CTS flow control)

RS485 RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate

Serial functions Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client

USB

Data rate USB 2.0

Applications Samba share, USB-to-serial

External devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter

Storage formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

INPUT / OUTPUT

Input 1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)

Output 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)

Events

Email, RMS, SMS

I/O juggler Allows to set certain I/O conditions to initiate event

POWER Connector 4-pin industrial DC power socket

Input voltage range 9 - 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max

PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 30 VDC

Power consumption < 2 W idle, < 7 W Max

PHYSICAL INTERFACES

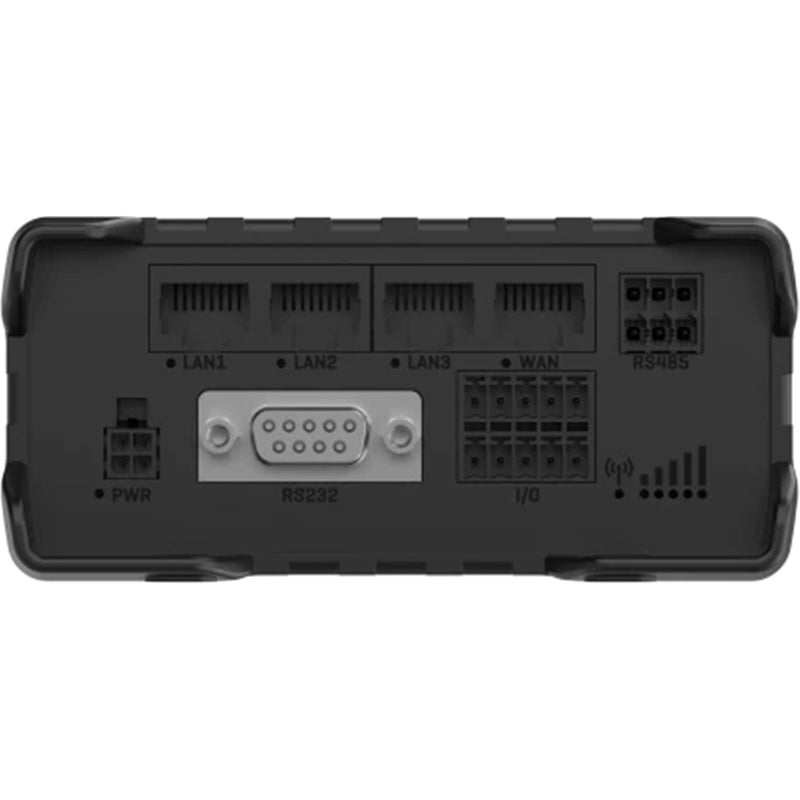

Ethernet 4 x RJ45 ports, 10/100 Mbps

I/O's 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600)

Status LEDs 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power

SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)

Power 1 x 4-pin power connector

Input/output 1 x 10-pin industrial socket for inputs/outputs

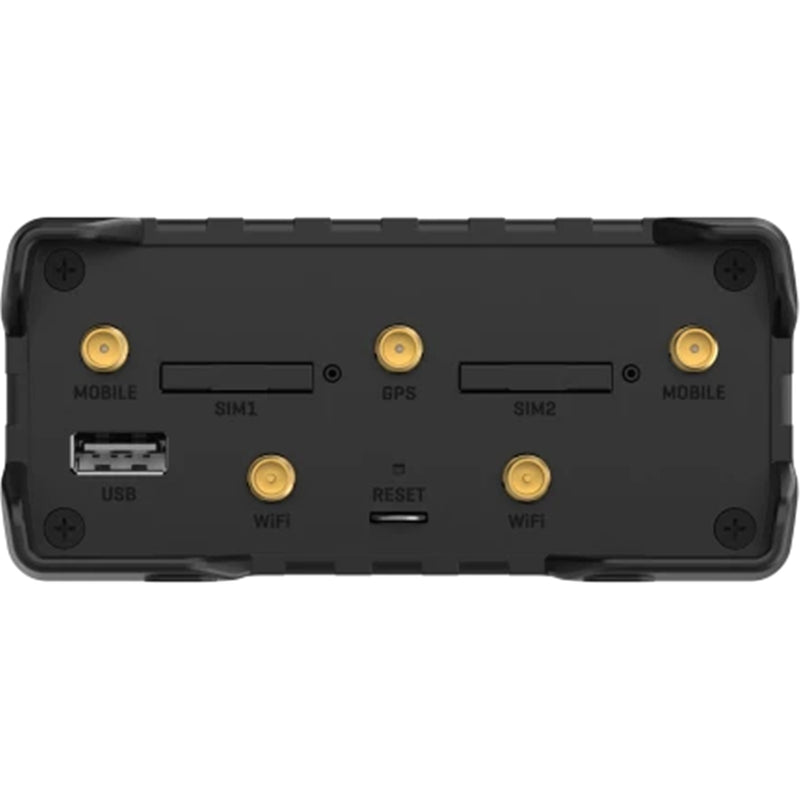

Antennas 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS

USB 1 x USB A port for external devices

RS232 1 x DB9 socket

RS485 1 x 6-pin industrial socket

Reset Reboot/User default reset/Factory reset button

PHYSICAL SPECIFICATION

Casing material Aluminium housing, plastic panels

Dimensions (W x H x D) 110 x 50 x 100 mm

Weight 287 g

Mounting options DIN rail (can be mounted on two sides), flat surface placement

OPERATING ENVIRONMENT

Operating temperature -40 °C to 75 °C

Operating humidity 10% to 90% non-condensing

Ingress Protection Rating IP30

REGULATORY & TYPE APPROVALS

Regulatory CE/RED, UKCA, CB

EMI IMMUNITY

Standards

EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, Draft EN 301 489-19 V2.2.0, Final draft EN 301 489-52 V1.2.0, EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019, EN IEC 61000-3-2:2019

ESD EN 61000-4-2:2009

RS EN 61000-4-3:2020

EFT EN 61000-4-4:2012

Surge immunity (AC Power Line)

EN 61000-4-5:2014+A1:2017

CS EN 61000-4-6:2009

DIP EN IEC 61000-4-11:2020

PERFORMANCE SPECIFICATIONS

Standards

EN 300 328 V2.2.2, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1, EN 303 413 V1.1.1

SAFETY

Standards

EN IEC 62311:2020
AS/NZS 60950.1:2015
IEC 62368-1:2018,
EN IEC 62368-1:2020+A11:2020
