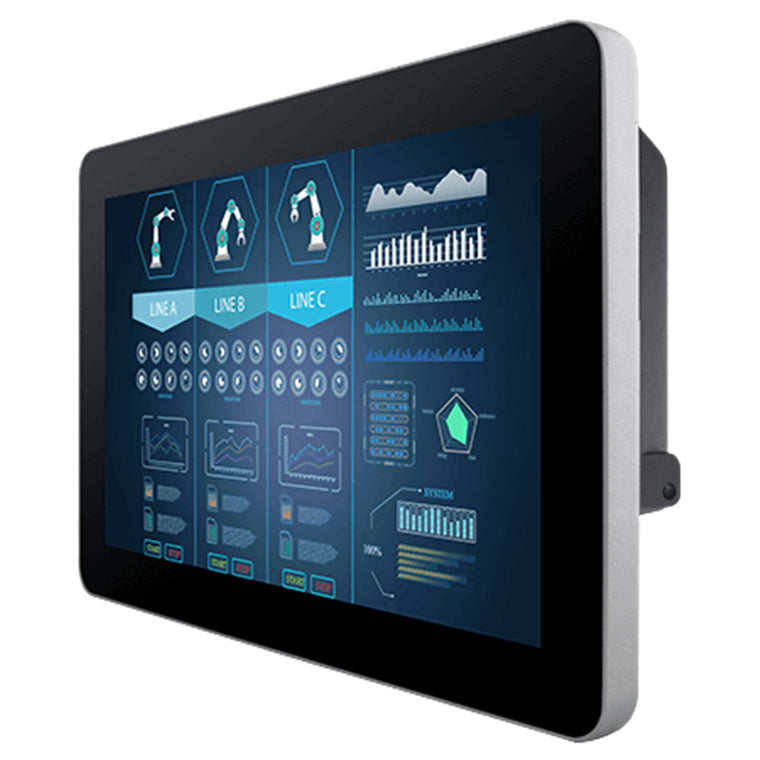

Winmate Multi-Touch Chassis W10L100-PCH2 P-Cap 10.1" 1280x800 Front IP65 Water and Dust Proof, 1xUSB, 1xVGA, Fanless design
Term:
100% Traditional Laybuy. Delivery after full payment.
Attention, eager beaver! Need your delivery in a flash?
No worries, mate! We're here to save the day! Just give us an email at contact@layawayau.com and let us know if you would like to pay more or less each week. Rest assured, we'll also provide you with an estimated delivery date when we make these changes. So don't you worry, your delivery dreams are in safe hands!
Low Power Consumption
This display is designed for low power consumption and effective heat dissipation, making it durable for long-term usage in production facilities. It is the ultimate energy-efficient solution.
Easy Mounting
This industrial display comes with a universal VESA mounting option for wall and desk mounting. Enable easy installation and use in various industries according to your specific requirements.
- 10.1" 1280 x 800 Resolution
- Projected Capacitive Multi-Touch (P-Cap)
- Front IP65 Water and Dust Proof
- VGA input and variety of optional connectors
- USB port for touch
- Stylish and elegant design
Display
Size
10.1 inches
Touch / Glass
Projected Capacitive Multi Touch Screen
Anti-glare Coating (Optional)
Resolution
1280x800
Panel Brightness
350 nits
1000 nits(Optional)
Contrast Ratio
800:1
View Angles
85,85,85,85
Display Color
16.7M Colors
Active Area
216.96 x135.6 mm
Environment
Operating Humidity
10% to 90% (non-condensing)
Operating Temperature
0~50°C
Storage Temperature
-10~60°C
Certification
Certification
CE, FCC
IO Ports
USB Port
1 x USB for Touch Screen
Video
1 x VGA
1 x HDMI (Optional)
1 x DVI (Optional)
Audio
1 x Speaker (Optional)
Mechanical
Dimension
264.57 x 173.29 x 35.70 mm
Mounting
VESA Mount
Enclosure
Aluminum
Cooling System
Fanless Design
Power
Power Rating
12V DC input
Control
Button
5 Keys: - , + , Power , Esc , Enter
